Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
05530 Crash/Freeze Critical (emulator) Always Apr 18, 2014, 05:15 Apr 7, 2018, 13:26
Tester Malice View Status Public Platform MAME (Self-compiled)
Assigned To Resolution Open OS Windows XP
Status [?] Confirmed Driver model2.cpp
Version 0.153 Fixed in Version Build Normal
Summary 05530: daytona: Test Mode crash on TGP test.
Description
mame daytona -w

-----------------------------------------------------
Exception at EIP=00EDB173 (rol_rgd(_t11_state*, unsigned short)+0x0023): ACCESS
VIOLATION
While attempting to read memory at 0B591000
-----------------------------------------------------
EAX=004003F8 EBX=0000D977 ECX=00000000 EDX=004003F8
ESI=0000A086 EDI=00000000 EBP=0A590020 ESP=0023B730
-----------------------------------------------------
Stack crawl:
  0A590020: 00EDB173 (rol_rgd(_t11_state*, unsigned short)+0x0023)
Steps To Reproduce Go into test mode try the TGP test.
Additional Information
Flags
Regression Version
Affected Sets / Systems daytona
Attached Files

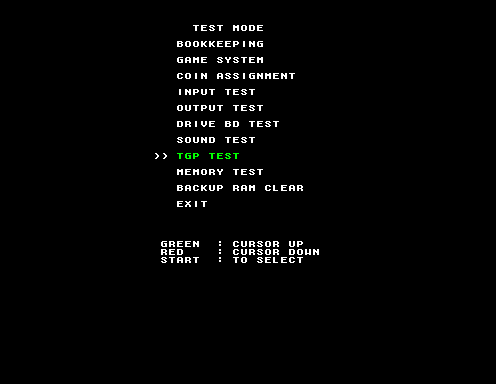

png file icon 0000.png (2,421 bytes) Apr 18, 2014, 05:15 Uploaded by Malice
Malice
Relationships
related to 06148Resolved All games in model2.cpp: Segmentation Fault
Notes
6
User avatar
No.10588
Osso
Developer
Apr 18, 2014, 06:44
Program received signal SIGSEGV, Segmentation fault.
0x0000000001641c9a in geo_test (geo=0x4f4b3bf8, opcode=117440512,
    input=0x4dab3098) at src/mame/video/model2.c:2450
2450 data = geo->polygon_rom[address++];
(gdb) bt 10
#0 0x0000000001641c9a in geo_test (geo=0x4f4b3bf8, opcode=117440512,
    input=0x4dab3098) at src/mame/video/model2.c:2450
#1 0x0000000001642174 in geo_process_command (geo=0x4f4b3bf8,
    opcode=117440512, input=0x4dab3008) at src/mame/video/model2.c:2640
#2 0x0000000001642408 in geo_parse (state=0x409ebf88)
    at src/mame/video/model2.c:2688
#3 0x00000000016427c4 in model2_state::screen_update_model2 (
    this=0x409ebf88, screen=..., bitmap=..., cliprect=...)
    at src/mame/video/model2.c:2737
#4 0x000000000422ba9f in delegate_base<unsigned int, screen_device&, bitmap_rgb
32&, rectangle const&, _noparam, _noparam, _noparam, _noparam, _noparam, _nopara
m, _noparam, _noparam, _noparam>::operator() (this=0x409fc180, p1=...,
    p2=..., p3=...) at src/lib/util/delegate.h:652
#5 0x0000000002d8425c in screen_device::update_partial (this=0x409fbc68,
    scanline=383) at src/emu/screen.c:613
#6 0x0000000000000000 in ?? ()
(gdb) quit
A debugging session is active.

        Inferior 1 [process 6060] will be killed.

Quit anyway? (y or n) y
User avatar
No.14601
Firewave
Senior Tester
Jan 2, 2018, 18:49
==3108==ERROR: AddressSanitizer: heap-buffer-overflow on address 0x7fbb799fe800 at pc 0x000003f34f66 bp 0x7ffddb659550 sp 0x7ffddb659548
READ of size 4 at 0x7fbb799fe800 thread T0
    #0 0x3f34f65 in geo_test /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/mame/video/model2.cpp:2338:11
    #1 0x3f34f65 in geo_process_command /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/mame/video/model2.cpp:2528
    #2 0x3f34f65 in geo_parse /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/mame/video/model2.cpp:2576
    #3 0x3f34f65 in model2_state::screen_update_model2(screen_device&, bitmap_rgb32&, rectangle const&) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/mame/video/model2.cpp:2622
    #4 0xe7ac0e2 in operator() /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/lib/util/delegate.h:544:11
    #5 0xe7ac0e2 in screen_device::update_partial(int) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/screen.cpp:1220
    #6 0xe833c67 in video_manager::finish_screen_updates() /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/video.cpp:694:10
    #7 0xe8332a0 in video_manager::frame_update(bool) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/video.cpp:208:27
    #8 0xe7a9f66 in vblank_end /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/screen.cpp:1556:21
    #9 0xe7a9f66 in screen_device::device_timer(emu_timer&, unsigned int, int, void*) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/screen.cpp:1002
    #10 0xe795168 in timer_expired /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/device.h:520:83
    #11 0xe795168 in device_scheduler::execute_timers() /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/schedule.cpp:906
    #12 0xe78ea0f in device_scheduler::timeslice() /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/schedule.cpp:530:2
    #13 0xe6a324b in running_machine::run(bool) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/machine.cpp:357:17
    #14 0x8cd10e0 in mame_machine_manager::execute() /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/frontend/mame/mame.cpp:236:19
    #15 0x8e1e0d3 in cli_frontend::start_execution(mame_machine_manager*, std::vector<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::allocator<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > > > const&) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/frontend/mame/clifront.cpp:257:22
    #16 0x8e20ee0 in cli_frontend::execute(std::vector<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::allocator<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > > >&) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/frontend/mame/clifront.cpp:273:3
    #17 0x8cd3717 in emulator_info::start_frontend(emu_options&, osd_interface&, std::vector<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::allocator<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > > >&) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/frontend/mame/mame.cpp:336:18
    #18 0x8acddf2 in main /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/osd/sdl/sdlmain.cpp:216:9
    #19 0x7fbb9e94282f in __libc_start_main /build/glibc-bfm8X4/glibc-2.23/csu/../csu/libc-start.c:291
    #20 0x1431838 in _start (/mnt/mame/mame64+0x1431838)

0x7fbb799fe800 is located 0 bytes to the right of 16777216-byte region [0x7fbb789fe800,0x7fbb799fe800)
allocated by thread T0 here:
    #0 0x14fd722 in operator new(unsigned long) /opt/media/clang_nightly/llvm/utils/release/final/llvm.src/projects/compiler-rt/lib/asan/asan_new_delete.cc:92:3
    #1 0xe227b44 in allocate /usr/lib/gcc/x86_64-linux-gnu/5.4.0/../../../../include/c++/5.4.0/ext/new_allocator.h:104:27
    #2 0xe227b44 in allocate /usr/lib/gcc/x86_64-linux-gnu/5.4.0/../../../../include/c++/5.4.0/bits/alloc_traits.h:491
    #3 0xe227b44 in _M_allocate /usr/lib/gcc/x86_64-linux-gnu/5.4.0/../../../../include/c++/5.4.0/bits/stl_vector.h:170
    #4 0xe227b44 in _M_create_storage /usr/lib/gcc/x86_64-linux-gnu/5.4.0/../../../../include/c++/5.4.0/bits/stl_vector.h:185
    #5 0xe227b44 in _Vector_base /usr/lib/gcc/x86_64-linux-gnu/5.4.0/../../../../include/c++/5.4.0/bits/stl_vector.h:136
    #6 0xe227b44 in vector /usr/lib/gcc/x86_64-linux-gnu/5.4.0/../../../../include/c++/5.4.0/bits/stl_vector.h:278
    #7 0xe227b44 in memory_region::memory_region(running_machine&, char const*, unsigned int, unsigned char, endianness_t) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/emumem.cpp:4453
    #8 0xe1f8c6a in make_unique<memory_region, running_machine &, const char *&, unsigned int &, unsigned char &, endianness_t &> /usr/lib/gcc/x86_64-linux-gnu/5.4.0/../../../../include/c++/5.4.0/bits/unique_ptr.h:765:34
    #9 0xe1f8c6a in memory_manager::region_alloc(char const*, unsigned int, unsigned char, endianness_t) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/emumem.cpp:1882
    #10 0xe7691fd in rom_load_manager::process_region_list() /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/romload.cpp:1443:35
    #11 0xe76b8ef in rom_load_manager::rom_load_manager(running_machine&) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/romload.cpp:1533:2
    #12 0xe69f947 in make_unique_clear<rom_load_manager, running_machine &> /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/lib/util/corealloc.h:74:38
    #13 0xe69f947 in running_machine::start() /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/machine.cpp:238
    #14 0xe6a2a41 in running_machine::run(bool) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/emu/machine.cpp:310:3
    #15 0x8cd10e0 in mame_machine_manager::execute() /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/frontend/mame/mame.cpp:236:19
    #16 0x8e1e0d3 in cli_frontend::start_execution(mame_machine_manager*, std::vector<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::allocator<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > > > const&) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/frontend/mame/clifront.cpp:257:22
    #17 0x8e20ee0 in cli_frontend::execute(std::vector<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::allocator<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > > >&) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/frontend/mame/clifront.cpp:273:3
    #18 0x8cd3717 in emulator_info::start_frontend(emu_options&, osd_interface&, std::vector<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::allocator<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > > >&) /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/frontend/mame/mame.cpp:336:18
    #19 0x8acddf2 in main /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/osd/sdl/sdlmain.cpp:216:9
    #20 0x7fbb9e94282f in __libc_start_main /build/glibc-bfm8X4/glibc-2.23/csu/../csu/libc-start.c:291

SUMMARY: AddressSanitizer: heap-buffer-overflow /mnt/mame/build/projects/sdl/mame/gmake-linux-clang/../../../../../src/mame/video/model2.cpp:2338:11 in geo_test
Shadow bytes around the buggy address:
  0x0ff7ef337cb0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0ff7ef337cc0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0ff7ef337cd0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0ff7ef337ce0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0ff7ef337cf0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
=>0x0ff7ef337d00:[fa]fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0ff7ef337d10: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0ff7ef337d20: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0ff7ef337d30: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0ff7ef337d40: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0ff7ef337d50: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
Shadow byte legend (one shadow byte represents 8 application bytes):
  Addressable: 00
  Partially addressable: 01 02 03 04 05 06 07
  Heap left redzone: fa
  Freed heap region: fd
  Stack left redzone: f1
  Stack mid redzone: f2
  Stack right redzone: f3
  Stack after return: f5
  Stack use after scope: f8
  Global redzone: f9
  Global init order: f6
  Poisoned by user: f7
  Container overflow: fc
  Array cookie: ac
  Intra object redzone: bb
  ASan internal: fe
  Left alloca redzone: ca
  Right alloca redzone: cb
User avatar
No.14763
Robbbert
Developer
Feb 20, 2018, 09:47
In geo_test, invalid parameters are being passed to the loop that tests the polygon rom, causing a buffer overflow.
User avatar
No.14768
Fortuna
Tester
Feb 21, 2018, 01:58
Confirmed too in windows 10 64bits, fullscreen and default configs
User avatar
No.14927
Osso
Developer
Apr 7, 2018, 09:51
This doesn't seem to happen in current GIT.
User avatar
No.14930
wuemura
Tester
Apr 7, 2018, 13:26
It doesn't crash like before but still, freezes at the TGP test.
mame0196-307-gef77d3f1aa-dirty
