Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
06416 Graphics Minor Always Oct 28, 2016, 09:05 Nov 3, 2016, 08:31
Tester Hirudov View Status Public Platform MESS (Official Binary)
Assigned To Resolution No change required OS Windows Vista/7/8 (64-bit)
Status [?] Closed Driver megadriv.cpp
Version 0.179 Fixed in Version Build Normal
Summary MESS-specific 06416: 32x, 32xe, 32xj: Output avi file with option -aviwrite saves cropped video
Description When writing output to avi file, the video is with resolution of 256x224, while the platform reported resolution in the about info is 320x224. This gives cropped on the right video.
Steps To Reproduce mess64 32x -cart "Knuckles' Chaotix (32X) (JU) [!].32x" -aviwrite "Knuckles' Chaotix (32X) (JU) [!].avi"
Additional Information The recorded file is okay, but cropped.
Flags
Regression Version
Affected Sets / Systems 32x, 32xe, 32xj
Attached Files

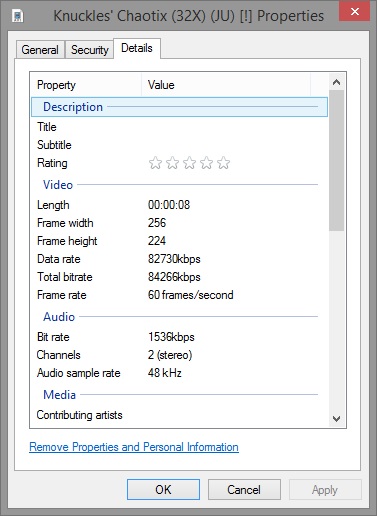

jpg file icon Knuckles' Chaotix (32X) (JU) [!].jpg (57,276 bytes) Oct 28, 2016, 09:05 Uploaded by Hirudov
Info of the produced video.
Hirudov
Relationships
related to 06158Closed cpc464, cpc6128, genesis, megadriv, snes, snespal (and more..): Wrong captured area size when recording avi output
Notes
2
User avatar
No.13299
StHiryu
Tester
Oct 30, 2016, 13:07
I think it's the same problem that I've reported here 06158. So you can find the solution giving the widht and height values with -snapsize.
User avatar
No.13304
AJR
Developer
Oct 31, 2016, 05:20
If no -snapsize is set, then the size of each frame is determined by render_target::compute_minimum_size, which depends on the screen's visible area. Now figure in that 32x and a number of other drivers can dynamically modify the visible area by means of screen_device::configure, and it's obvious what the problem is here.
