Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
06496 Graphics Minor Always Feb 7, 2017, 10:31 Feb 9, 2017, 02:38
Tester haynor666 View Status Public Platform MAME (Official Binary)
Assigned To Resolution No change required OS Windows Vista/7/8 (64-bit)
Status [?] Closed Driver vamphalf.cpp
Version 0.182 Fixed in Version 0.183 Build 64-bit
Summary 06496: All set in vamphalf.cpp (except aoh): Visible area too small
Description During changes in driver and/or chips visible area gets shrinked from 320x240 to 320x236. This way graphics are not shown correctly.
Steps To Reproduce
Additional Information
Flags
Regression Version 0.146u2
Affected Sets / Systems All set in vamphalf.cpp (except aoh)
Attached Files

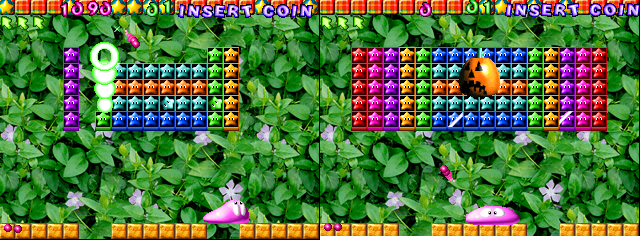

png file icon dtfamily-combined.png (137,718 bytes) Feb 7, 2017, 10:31 Uploaded by haynor666
haynor666
png file icon jmpbreak-combined.png (137,184 bytes) Feb 7, 2017, 10:32 Uploaded by haynor666
haynor666
Relationships
There are no relationsihp linked to this issue.
Notes
3
User avatar
No.13606
Haze
(Senior Tester)
Feb 7, 2017, 23:13
edited on: Feb 7, 2017, 23:34
it's correct, the hardware cuts off at that point, it was tested extensively, it simply doesn't output anything valid beyond that point

some games are also coded around that assumption and the scrolling glitches in the bottom 4 lines if you draw it.

it's bad design, but the visible area being used is actually correct.

*why* I can't tell you, it's a weird resolution and I would have expected the opposite with the scroll glitches happening on the PCB, but what I found, after asking 3 different people to play with the stretch controls etc. on their screen is that that those lines never appear, something on the PCBs kills the video output at that point, at the very best we got what seemed like a repeat of the line above 4x but with broken x-offsets like the sync signals were completely wrong at that point.

User avatar
No.13608
haynor666
(Tester)
Feb 8, 2017, 21:44
Strange but if that's how it works then ok :)
User avatar
No.13611
Robbbert
(Developer)
Feb 9, 2017, 02:38
Since we're all agreed, let's close this.
