Summary 06703: bubsymphb: Bubble Symphony Bootleg (oki6295) Recording / info
Description Got this pcb the other day, noticed it's not working in mame...
This board has many bugs :(

Large Taito logo is almost white
Sound - goes without saying
Priority probs
Missing backgrounds
Graphic flickering on the 'fire bit' of intro
Bubble symphony logo not on attract mode (mame draws this)
Pressing test mode gives a screen of red jailbars (this one may be a fault on pcb..)

Attract video shows it all:
&feature=youtu.be
Steps To Reproduce
Additional Information
Flags
Regression Version
Affected Sets / Systems bubsymphb
Attached Files
jpg file icon IMAG0825[1].jpg (901,995 bytes) Oct 10, 2017, 19:02 Uploaded by Hammy
jpg file icon IMAG0824[1].jpg (1,163,330 bytes) Oct 10, 2017, 19:02 Uploaded by Hammy
jpg file icon IMAG0823[1].jpg (1,180,073 bytes) Oct 10, 2017, 19:03 Uploaded by Hammy
jpg file icon IMAG0822[1].jpg (783,220 bytes) Oct 10, 2017, 19:04 Uploaded by Hammy
Relationships
There are no relationsihp linked to this issue.
Notes
5
User avatar
No.14240
Haze
Senior Tester
Oct 8, 2017, 23:12
did you check the roms match MAME? things like the logo not being in the attract mode make me wonder if the board is running a different set.
User avatar
No.14241
Fortuna
Tester
Oct 9, 2017, 00:51
edited on: Oct 9, 2017, 00:55
The BGM sounds too the same speed that the original set

User avatar
No.14242
Hammy
Tester
Oct 9, 2017, 01:26
Yes, dumped and all matched. The BGM is the same loops over again, the original is a lot longer.
I will remove the 93c eeprom and attempt to dump it - i have a hunch it's bad tho as the test mode fails to start.
User avatar
No.14243
Fujix
Administrator
Oct 10, 2017, 11:08
Probably we want high resolution PCB photos?
User avatar
No.14244
Hammy
Tester
Oct 10, 2017, 19:05

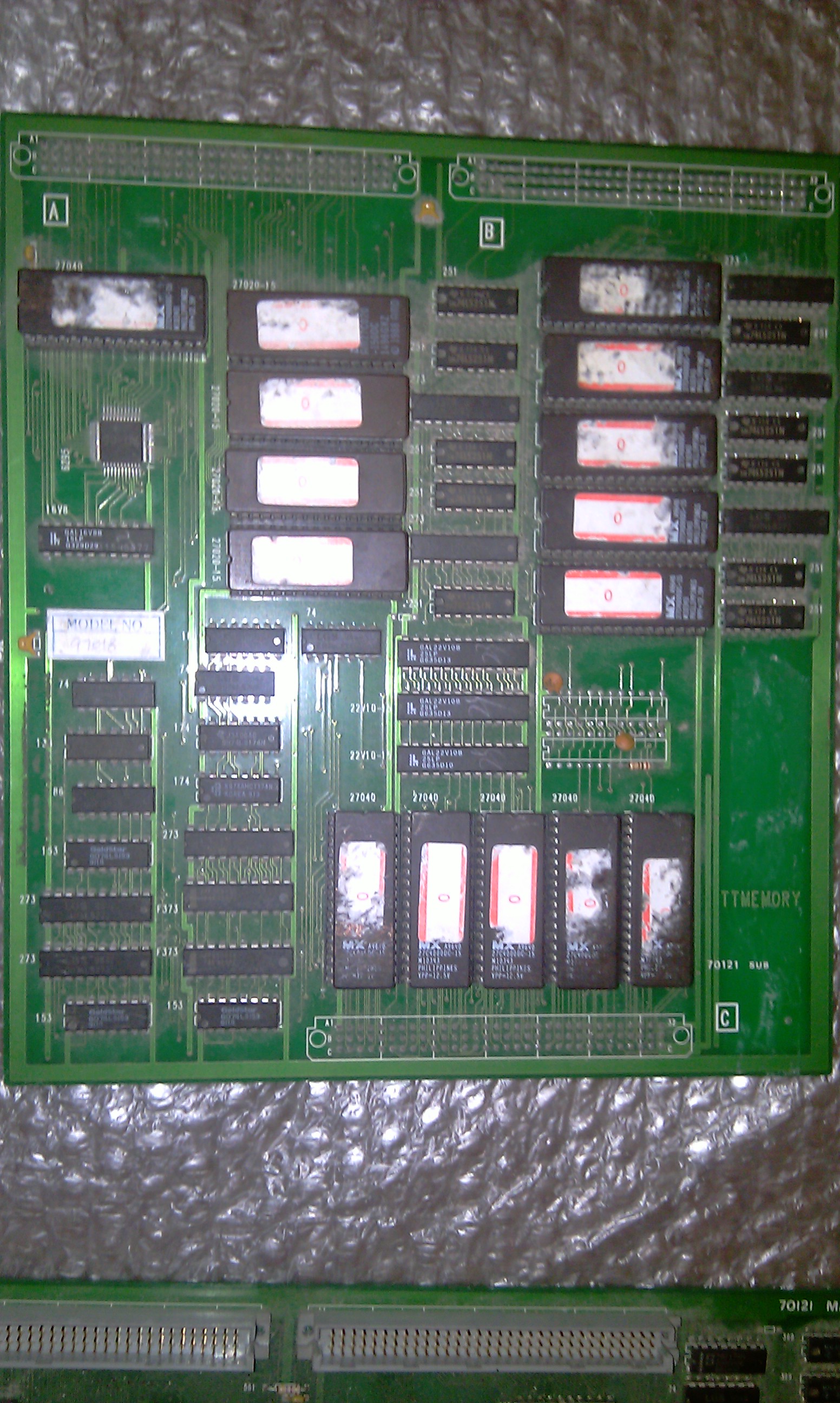

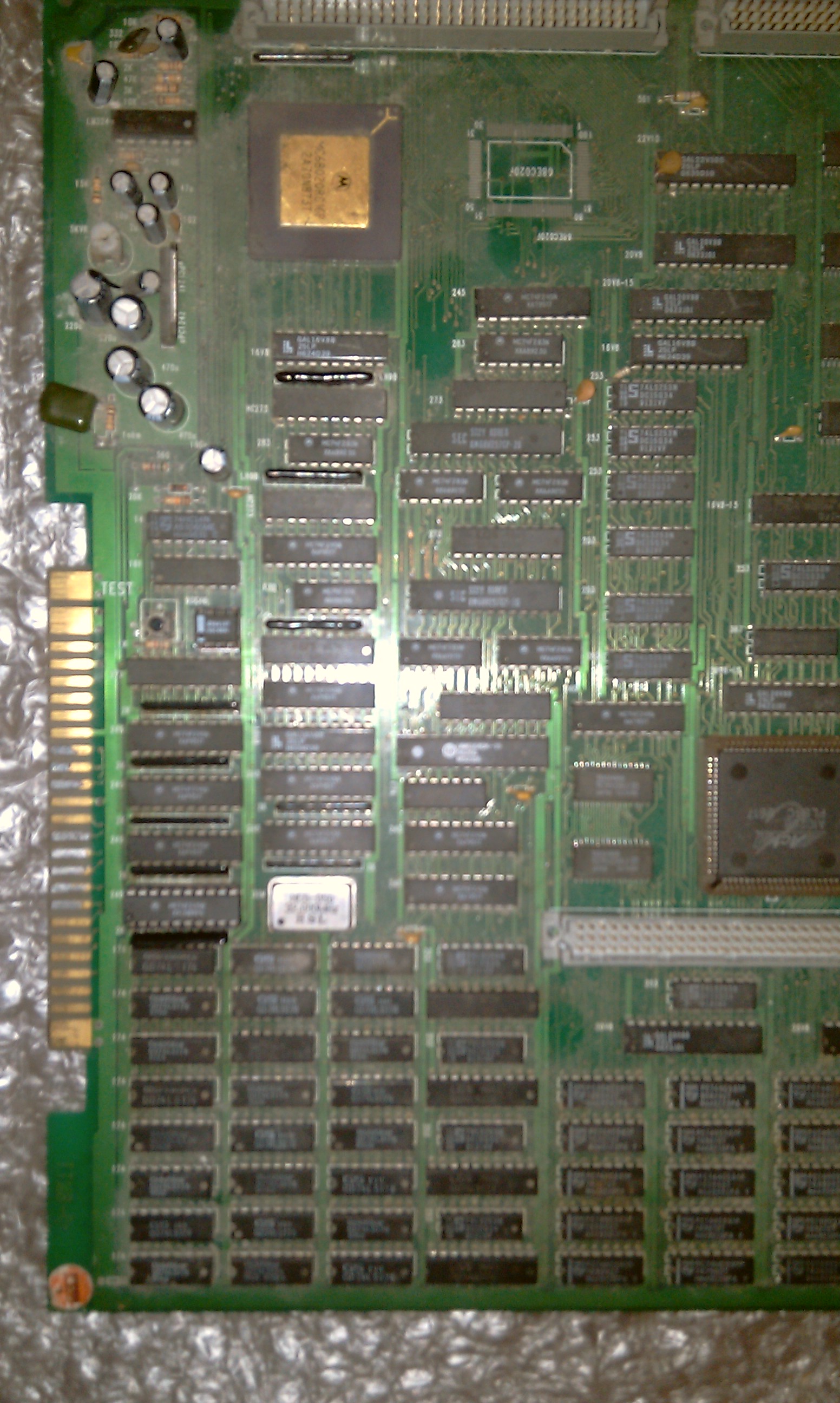

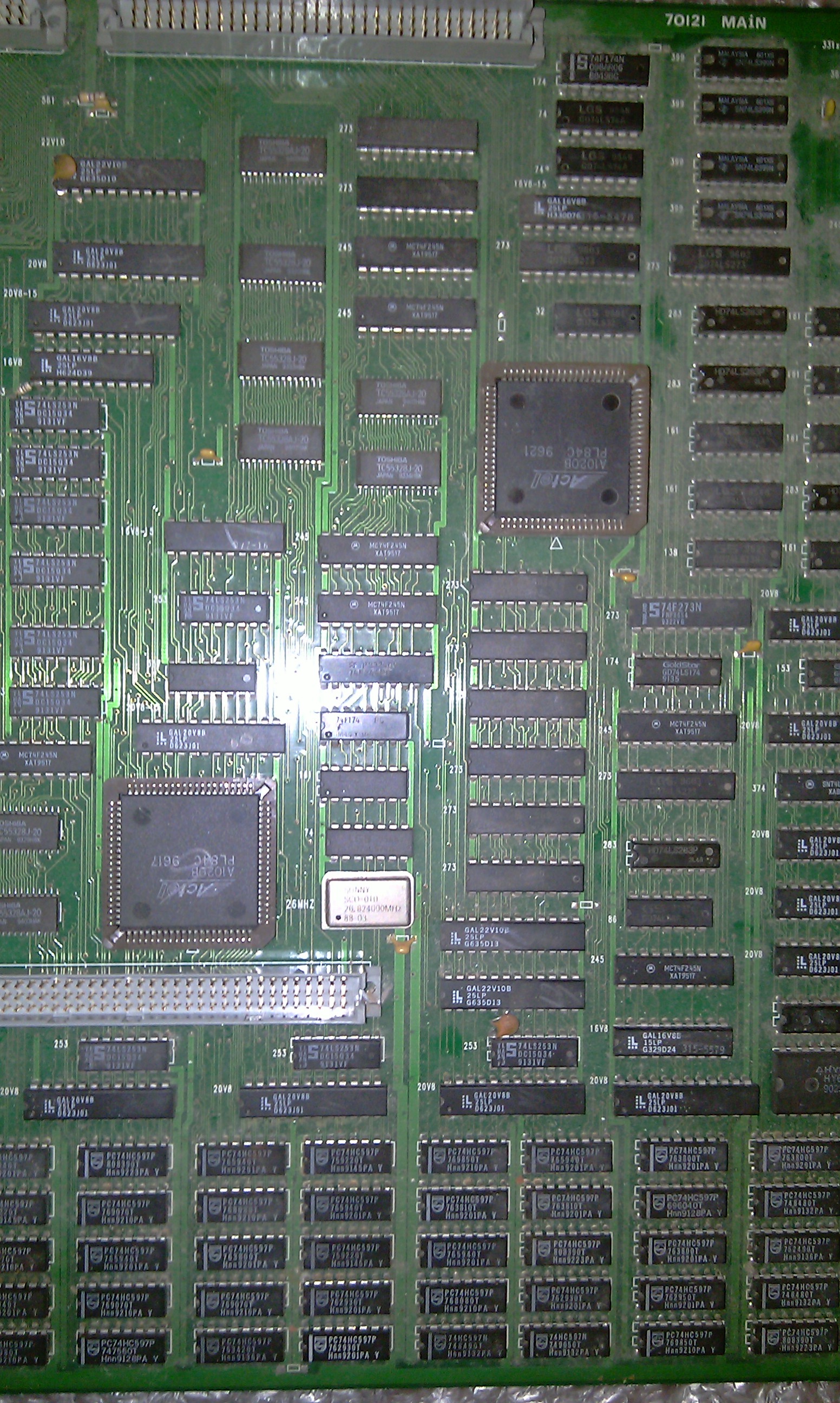

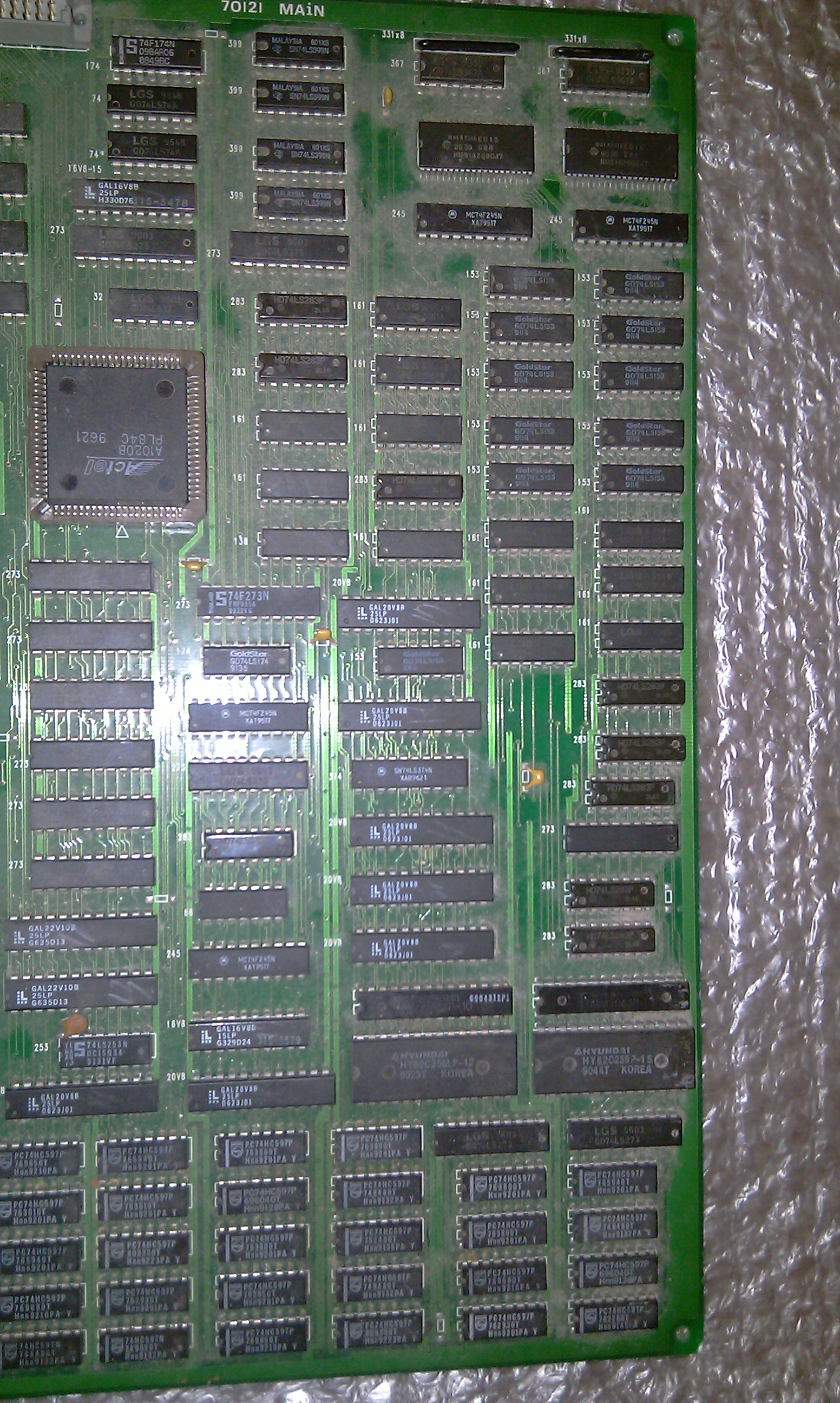

Added some board pics..
