Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
06738 Graphics Major Always 22 days ago 21 days ago
Tester wuemura View Status Public Platform MAME (Official Binary)
Assigned To Resolution No change required OS Windows 10 (64-bit)
Status [?] Closed Driver toaplan2.cpp
Version 0.191 Fixed in Version Build 64-bit
Summary 06738: batrider: Perpendicular black lines all over the screen

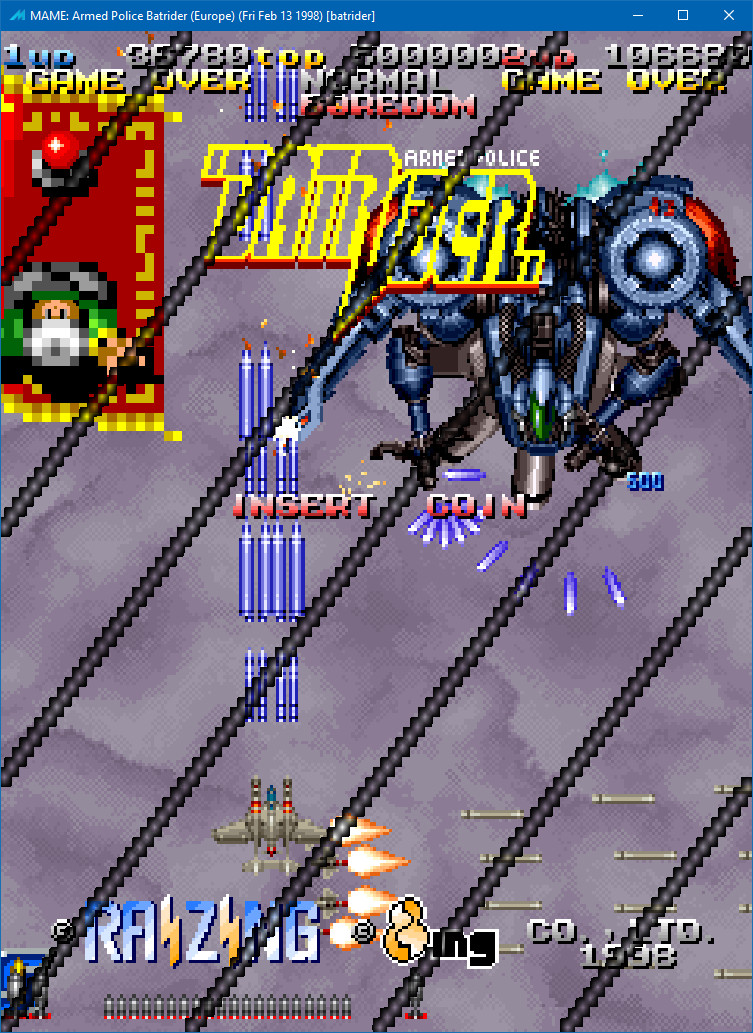

Description Perpendicular black lines all over the screen
Steps To Reproduce
Additional Information
Flags
Regression Version
Affected Sets / Systems batrider
Attached Files
jpg file icon batrider.jpg (359,367 bytes) 22 days ago Uploaded by wuemura
wuemura
? file icon mame.ini (10,642 bytes) 22 days ago Uploaded by wuemura
[Show Content]
jpg file icon batrider2.jpg (85,103 bytes) 22 days ago Uploaded by wuemura
wuemura
zip file icon batrider.zip (506 bytes) 22 days ago Uploaded by wuemura
batrider "lay" file
Relationships
related to 06739Closed batrider: F12 save black screen with parts of the screen.
Notes
8
User avatar
No.14343
Osso
Developer
22 days ago
Can't reproduce. What -video are you using?
User avatar
No.14348
wuemura
Tester
22 days ago
video is auto.
For auto mame is using D3D.
User avatar
No.14349
wuemura
Tester
22 days ago
The issue happens with official and git versions.
Mame is complaining that there is no "320x240x4.png" file, as you can see on mame.ini the "effects" are off and if you delete mame.ini this still happens.

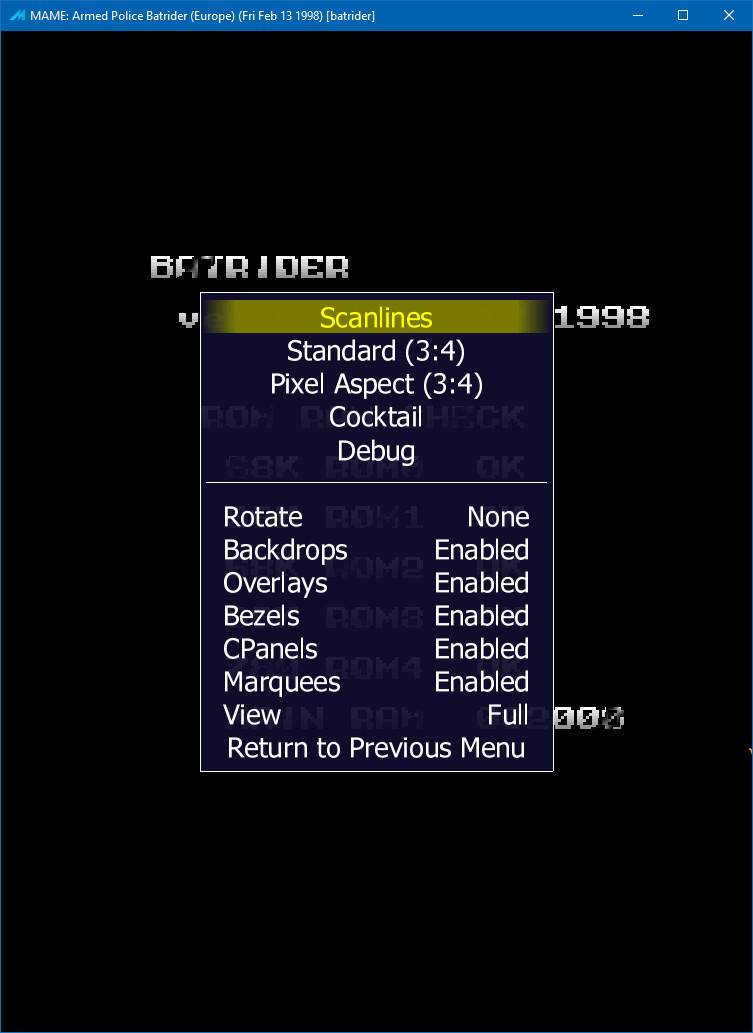

If you go to video options the "Scanlines" are enabled, if you turn it off, the issue is gone, but it get back if you select scanlines again.
User avatar
No.14351
wuemura
Tester
22 days ago
The cause of all this trouble is the attached file, extract it inside artwork.
User avatar
No.14353
Tafoid
Administrator
22 days ago
This is simply what you said, a problem with your lay file expecting a file in the artwork package but not having it available.
I don't think what MAME is doing is wrong in that it is following exactly what the layout file is asking for.
User avatar
No.14355
wuemura
Tester
22 days ago
I don't recall using this file, I don't know even how to create it.
Maybe it was related with a previous bug that I was helping to test out, don't know.

Either way, the file is valid, mame is loading it, the only problem is a png that it can't find. If there are no png, why mame is drawing a perpendicular black, semi-transparent (alpha?), overlay lines?

And why is affecting screen shot?

This should be like photoshop, a transparent layer of nothing.
User avatar
No.14367
cuavas
Administrator
21 days ago
Displaying a transparent layer doesn't really make sense - the element could be critical for the view to work. Using the contents of uninitialised memory as an alpha mask isn't desirable behaviour either. It should really report an error message and treat the view as unviable. I'm not going to make this a priority though: it doesn't crash or corrupt memory, and it doesn't happen if you don't have incomplete artwork.
User avatar
No.14368
Tafoid
Administrator
21 days ago
edited on: 21 days ago
MAME is doing as expected. It produces a dummy image and lets you know via console that an image could not be loaded.
Closing.

Noted in src\emu\rendlay.cpp:
   // if we can't load the bitmap, allocate a dummy one and report an error
   if (!m_bitmap.valid())
   {
    // draw some stripes in the bitmap
    m_bitmap.allocate(100, 100);
    m_bitmap.fill(0);
    for (int step = 0; step < 100; step += 25)
     for (int line = 0; line < 100; line++)
      m_bitmap.pix32((step + line) % 100, line % 100) = rgb_t(0xff,0xff,0xff,0xff);
