Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
06899 Graphics Minor Always Mar 4, 2018, 09:53 Mar 5, 2018, 00:36
Tester Kold666 View Status Public Platform MAME (Official Binary)
Assigned To Resolution Open OS Windows 10 (64-bit)
Status [?] Confirmed Driver
Version 0.195 Fixed in Version Build 64-bit
Fixed in Git Commit Github Pull Request #
Summary 06899: gyrodine, gyrodinet, buzzard: Helicopter shadow on the pcb is different from the one shown in Mame

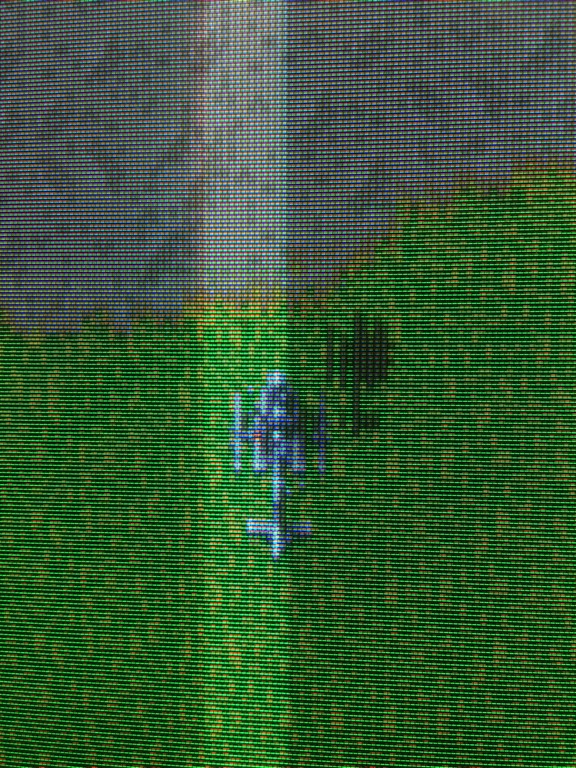

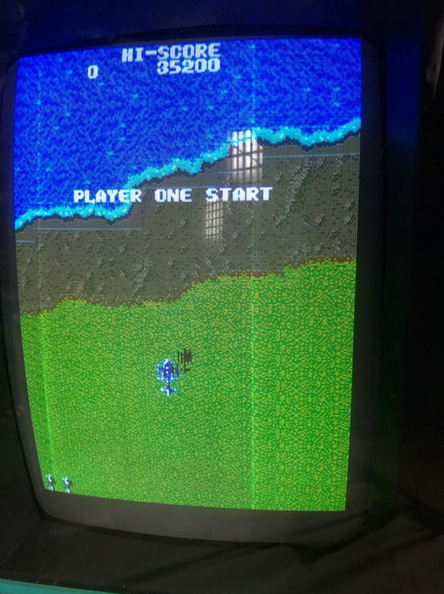

Description Helicopter shadow on the pcb is different from the one shown in Mame
see pic

Verified on my personal collection pcb and a couple of Yahoo auctions pics
Steps To Reproduce
Additional Information
Github Commit
Flags Verified with Original
Regression Version
Affected Sets / Systems gyrodine, gyrodinet, buzzard
Attached Files
png file icon gyro.PNG (633,786 bytes) Mar 4, 2018, 09:53 Uploaded by Kold666
Kold666
jpg file icon gyro2.jpg (258,148 bytes) Mar 4, 2018, 09:55 Uploaded by Kold666
Kold666
Relationships
There are no relationship linked to this issue.
Notes
1
User avatar
No.14800
Haze
Senior Tester
Mar 5, 2018, 00:36
talking this through with Kold I can only assume that original gyrodine boards have issues with rendering flipped tiles.

the shadow sprite is a perfectly normal sprite in spriteram, the only thing special about it seems to be that it gets drawn with the flip bit set, which apparently corrupts the sprite.

there are weird lines around some of the background tiles too which makes me think similar is happening there, as if once flipped they end up slightly offset and misaligned.

since there are multiple sources showing the very same issues it must be an issue that affects at least the majority of PCBs for the game, and probably one MAME should emulate at some point, even if it looks awful.
