Summary 06914: tdragon3h: Thunder Dragon 3 Bootleg Lacks YM2203 and may have totally different sound.
Description This board lacks the YM2203, and may have totally different (nasty!) sound

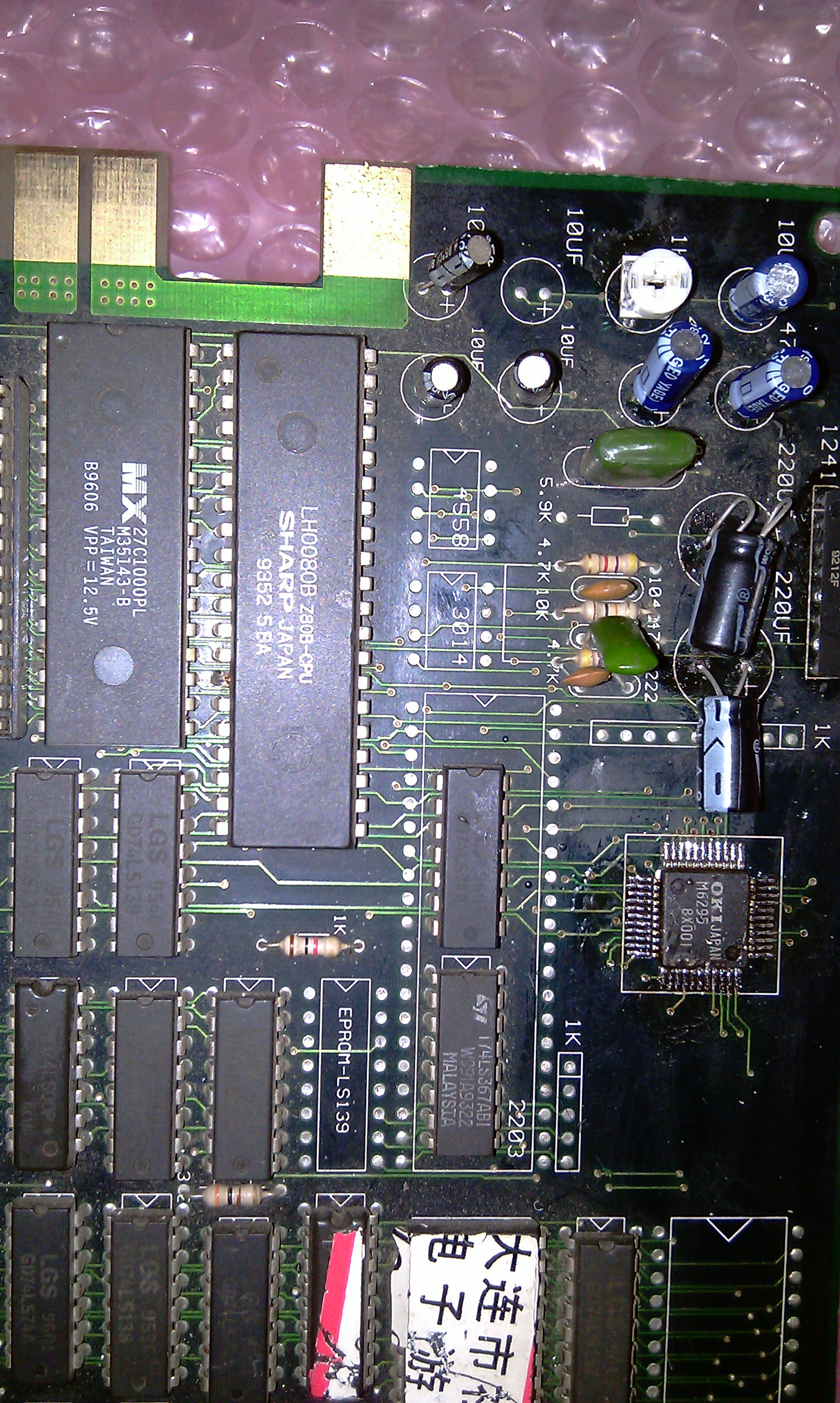

There is a place for the 2203, however it has an LS74 and an LS367 in it's place.

Dump of sound roms soon :)

&feature=youtu.be
Steps To Reproduce n/a
Additional Information n/a
Github Commit
Flags
Regression Version
Affected Sets / Systems tdragon3h
Attached Files

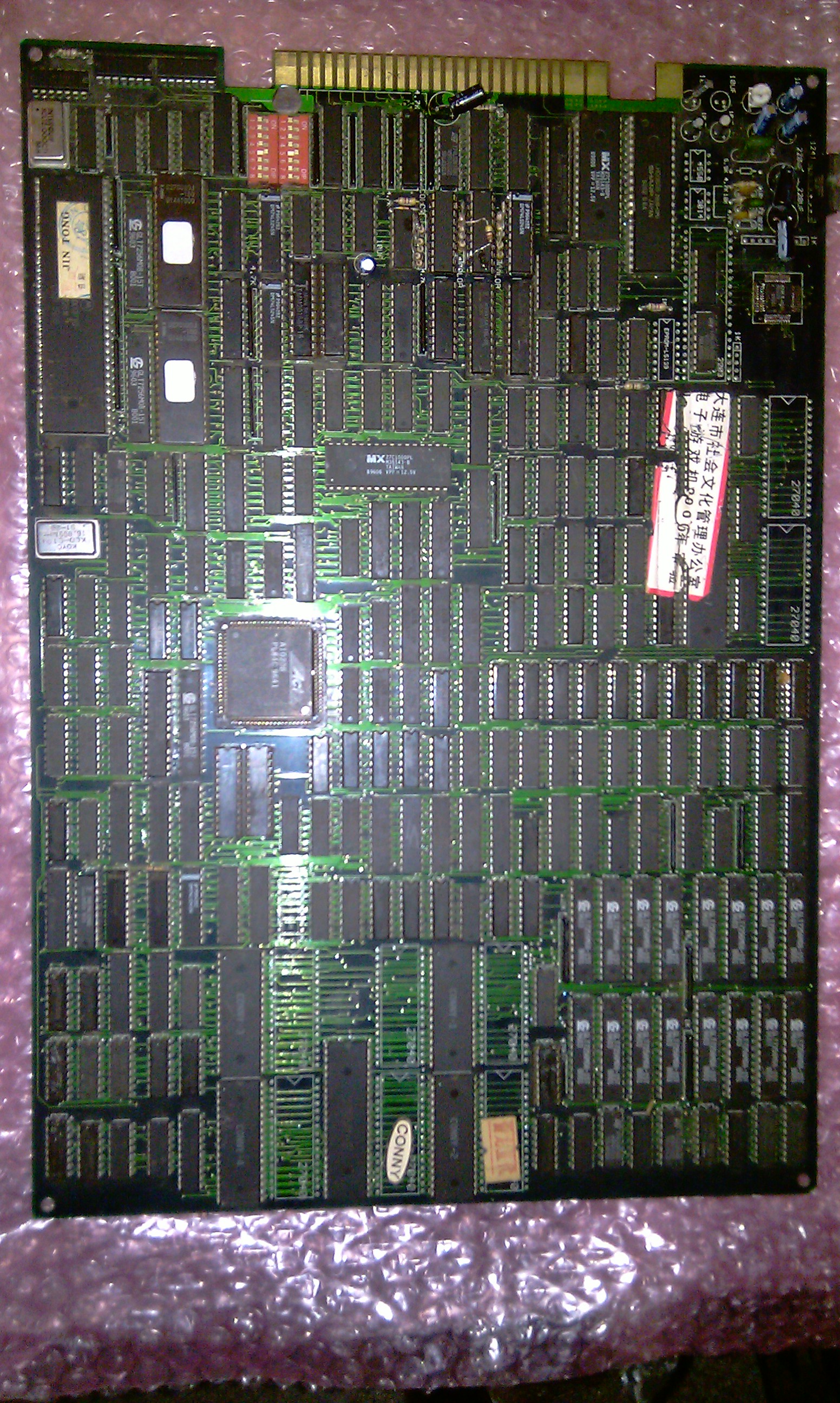

jpg file icon IMAG1058[1].jpg (1,319,623 bytes) Mar 15, 2018, 01:48 Uploaded by Hammy
jpg file icon IMAG1060[1].jpg (1,257,746 bytes) Mar 15, 2018, 01:49 Uploaded by Hammy
Relationships
There are no relationship linked to this issue.
Notes
1
User avatar
No.14840
Tafoid
Administrator
Mar 14, 2018, 23:45
Can you post a picture of the PCB?
