03729: gmgalax: Wrong colors

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
03729	Color/Palette	Minor	Always	Feb 13, 2010, 00:20	Apr 30, 2022, 11:18

Tester	M.A.S.H.	View Status	Public	Platform
Assigned To	Robbbert	Resolution	Fixed	OS
Status [?]	Resolved			Driver	galaxian/galaxian.cpp
Version	0.136u2	Fixed in Version	0.244	Build
		Fixed in Git Commit	90c2542	Github Pull Request #

Summary	03729: gmgalax: Wrong colors
Description	The colors in Ghostmuncher Galaxian (bootleg) are wrong since MAME 0.124u1. See snapshots from MAME 0.124 and MAME 0.136u2.
Steps To Reproduce	Start gmgalax. Select Galaxian in the dipswitch menu and start the game.
Additional Information	The video driver for gmgalax was changed in MAME 0.124u1 from: static void gmgalax_modify_charcode(UINT16 code,UINT8 x); static void gmgalax_modify_spritecode(UINT8 spriteram,int code,int flipx,int flipy,int offs); static void gmgalax_modify_color(UINT8 color); VIDEO_START( gmgalax ) { VIDEO_START_CALL(galaxian); modify_charcode = gmgalax_modify_charcode; modify_spritecode = gmgalax_modify_spritecode; modify_color = gmgalax_modify_color; } static void gmgalax_modify_charcode(UINT16 code,UINT8 x) { code \|= (gfxbank[0] << 9); } static void gmgalax_modify_spritecode(UINT8 spriteram,int code,int flipx,int flipy,int offs) { code \|= (gfxbank[0] << 7) \| 0x40; } static void gmgalax_modify_color(UINT8 color) { color \|= (gfxbank[0] << 3); } to void gmgalax_extend_tile_info(UINT16 code, UINT8 color, UINT8 attrib, UINT8 x) { code \|= gfxbank[0] << 9; // color \|= gfxbank[0] << 3; } void gmgalax_extend_sprite_info(const UINT8 base, UINT8 sx, UINT8 sy, UINT8 flipx, UINT8 flipy, UINT16 code, UINT8 color) { code \|= (gfxbank[0] << 7) \| 0x40; color \|= gfxbank[0] << 3; } FIX ---------------------------------------------------------------------------------- If you changed in src\mame\video\galaian.c (MAME 0.136u2) line 1276 from // color \|= gfxbank[0] << 3; to color \|= gfxbank[0] << 3; you got all gfx in gmgalax back!
Github Commit

Flags
Regression Version	0.124u1
Affected Sets / Systems	gmgalax

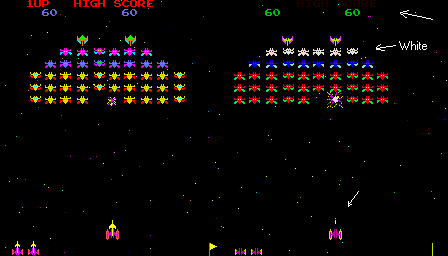

Attached Files	gmgalax-0124-0136u2.png (4,881 bytes) Feb 13, 2010, 00:20

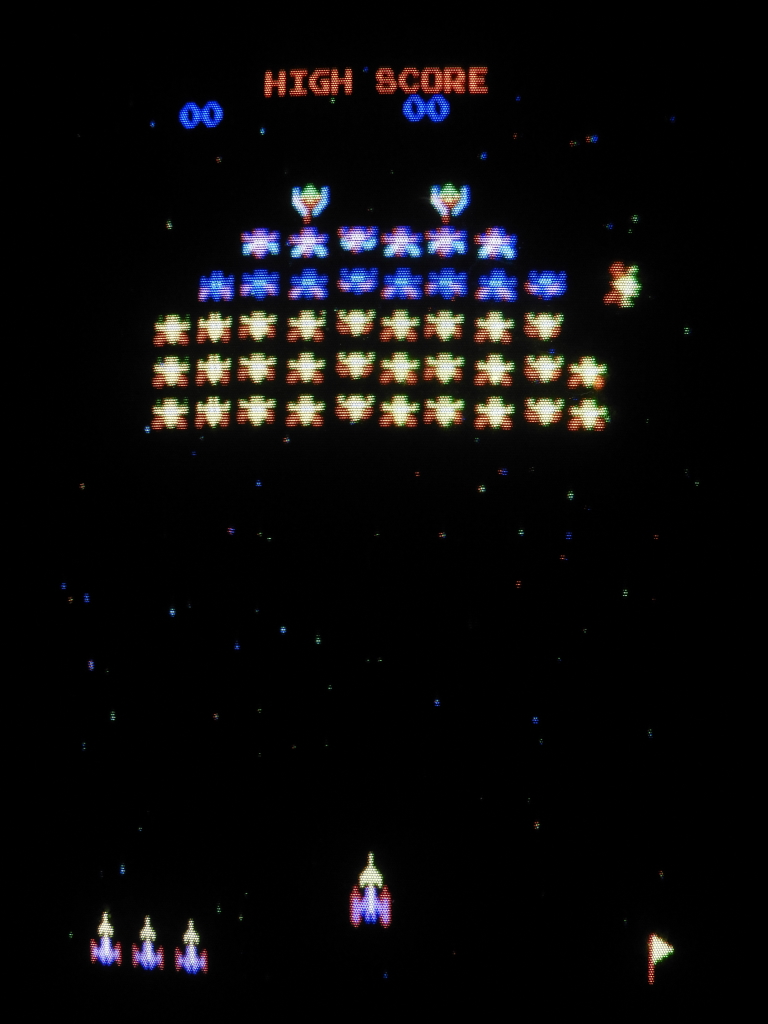

	DSCN1975.JPG (290,573 bytes) Jan 7, 2022, 16:44 Uploaded by Osso PCB reference 1

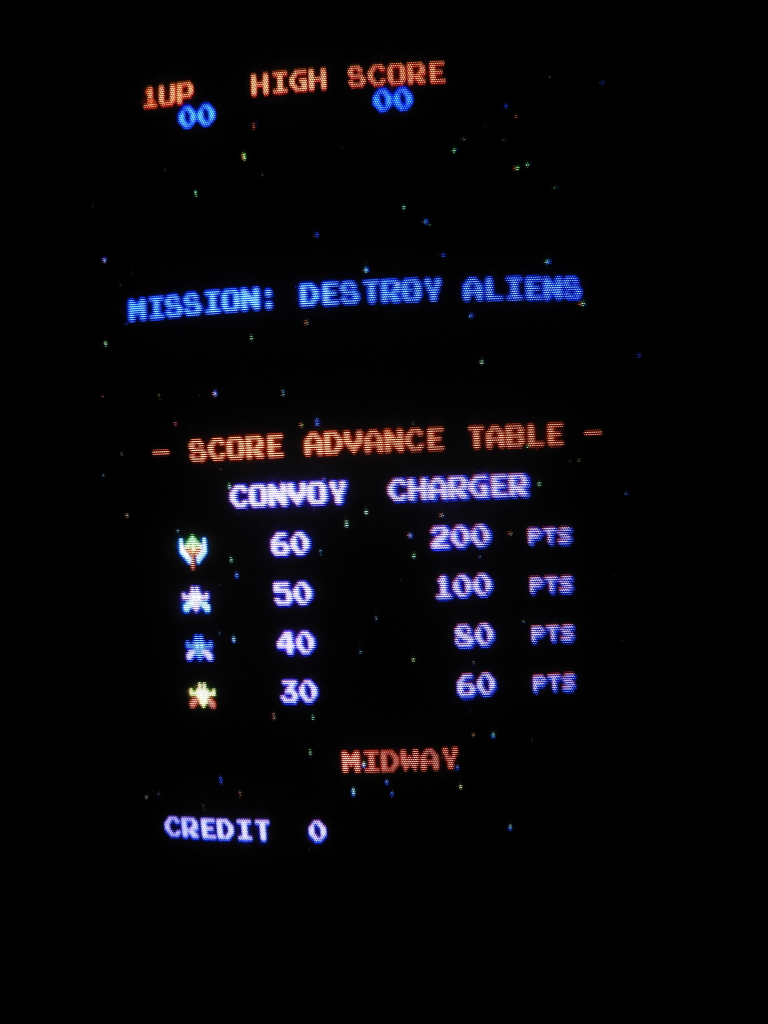

	DSCN1973.JPG (322,977 bytes) Jan 7, 2022, 16:45 Uploaded by Osso PCB reference 2

No.05710 Haze Senior Tester Feb 13, 2010, 01:54	which begs the question, why was it commented out in the first place. usually lines aren't commented out unless the person working on the driver thought theret was a good reason to do it, do you have any idea why it might have been done?
No.19656 Osso Moderator Jan 7, 2022, 16:42	Right now in the emulation the Galaxian game is using the same PROM of the Ghostmuncher game, instead of using its PROM. Attached some screenshots from Guru that show that the pre 0.124u1 behaviour was right.
No.20134 Robbbert Senior Tester Apr 30, 2022, 11:18	Appears that during the creation of galaxold, this code was commented out probably for testing, and then forgotten about.
