| ID | Category [?] | Severity [?] | Reproducibility | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 08110 | Image Enhancement | Major | Always | Oct 15, 2021, 08:11 | Jan 26, 2022, 20:42 |
| Tester | john_iv | View Status | Public | Platform | MAME (Official Binary) |
| Assigned To | Calamity | Resolution | Fixed | OS | Windows 10/11 (64-bit) |
| Status [?] | Resolved | Driver | |||
| Version | 0.236 | Fixed in Version | 0.240 | Build | 64-bit |
| Fixed in Git Commit | 7a6749a | Github Pull Request # | |||
| Summary | 08110: dkong, pacman, 1942: -autostretchxy causing cropping in some vertical games | ||||
| Description |
The following command line produces an integer stretch that crops the image at top and bottom. My understanding is that it should *not* be cropped (unless using -intoverscan) and shrink down and letter/pillarbox to fit. Note: This is on a physical 2560x1440 display (it does not appear to crop on a second system's monitor which has a 1920x1200 display) mame dkong -norc -noues -nofilter -autostretchxy Does this in other vertical games, like 1942 and pacman. Happens in official .236 and today's tree 0.236 (mame0236-150-gffe92ecc727) |
||||
| Steps To Reproduce | Run the command line. | ||||
| Additional Information | |||||
| Github Commit | |||||
| Flags | |||||
| Regression Version | |||||
| Affected Sets / Systems | dkong, pacman, 1942 | ||||
|
Attached Files
|

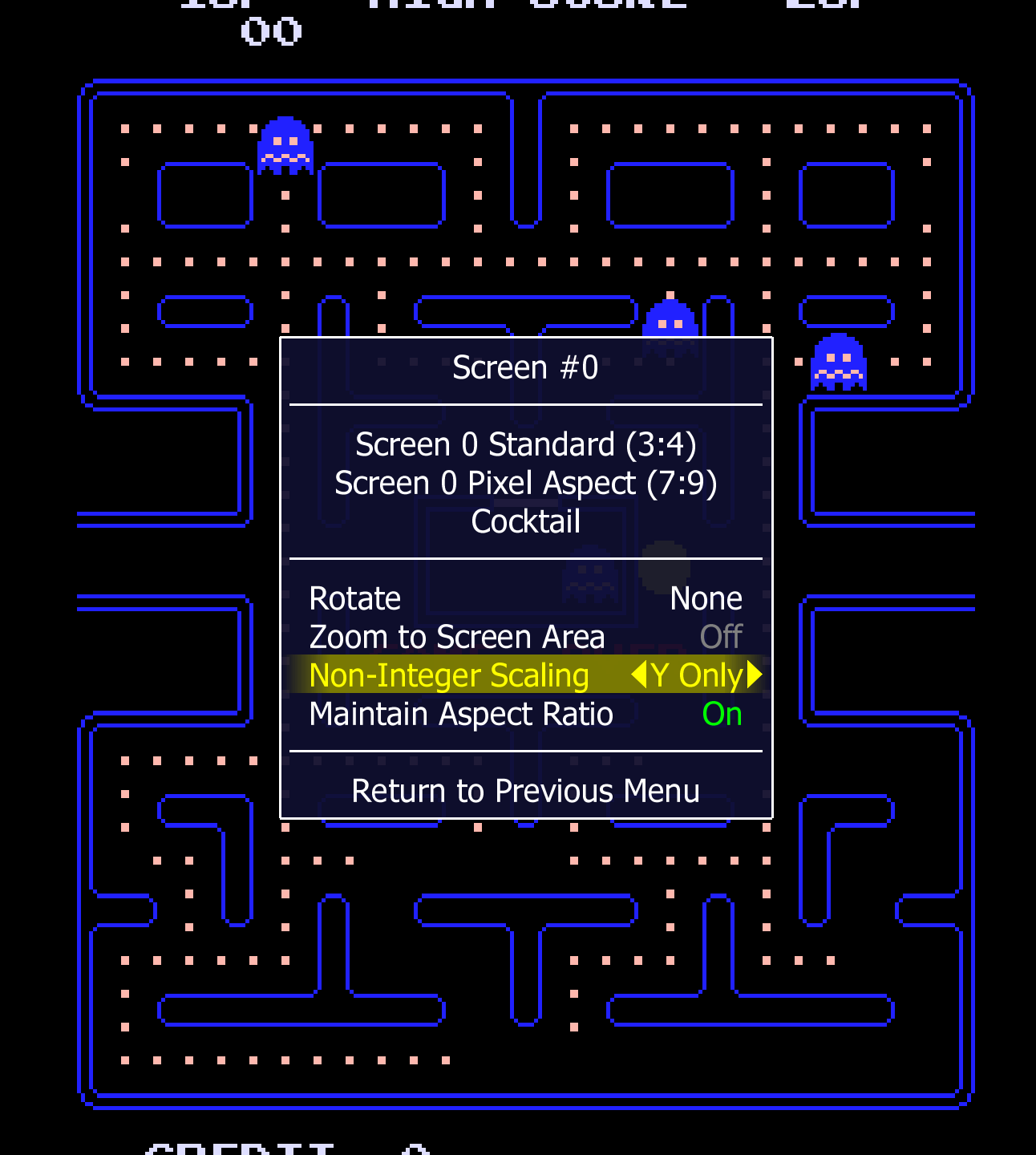

 cropped puckman.png (75,255 bytes) Oct 15, 2021, 18:16 Uploaded by john_iv | ||||
| cropped puckman 2.png (83,798 bytes) Oct 15, 2021, 18:17 Uploaded by john_iv | |||||
 No.19348
Tafoid Administrator
Oct 15, 2021, 17:55
|
I don't seem to see it. Is artwork involved again? |
|---|---|
 No.19349
john_iv Senior Tester
Oct 15, 2021, 18:15
|
No, artwork is out of the mix w/ the -norc switch, I have my in-game artwork in non-standard named directories. Do you have a monitor at that resolution? Ok, it looks like it's physical monitor resolution related. On my 1440p it causes cropping, on my old 1980x1200 it does not. 2560x1440 monitor: mame puckman -nofilter -noues -autostretchxy -verbose -norc Error opening translation file English **Error loading plugin.ini** Video: Monitor 65537 = "\\.\DISPLAY1" (primary) Video: Monitor 65539 = "\\.\DISPLAY2" Direct3D: Using Direct3D 9 Physical width 2560, height 1440 Direct3D: Initialize Direct3D: Configuring adapter #0 = AMD Radeon RX 5600 XT Direct3D: YUV format = RGB Direct3D: Max texture size = 16384x16384 Direct3D: Device created at 2560x1440 Direct3D: Initialize HLSL Direct3D: First store options Direct3D: HLSL initialized RawInput: APIs detected RawInput: APIs detected RawInput: APIs detected DirectSound: Primary buffer: 48000 Hz, 16 bits, 2 channels Input: Adding keyboard #0: HID Keyboard Device (device id: \\?\HID#VID_D209&PID_0301&MI_00#9&2f94dd5c&0&0000#{884b96c3-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding keyboard #1: HID Keyboard Device (device id: \\?\HID#VID_D209&PID_0301&MI_01#9&bbd9f9a&0&0000#{884b96c3-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding keyboard #2: HID Keyboard Device (device id: \\?\HID#VID_045E&PID_00DB&MI_00#9&ecca7b0&0&0000#{884b96c3-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding keyboard #3: HID Keyboard Device (device id: \\?\HID#virtualdevice&10&Col02#2&d21ad2d&0&0001#{884b96c3-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding keyboard #4: HID Keyboard Device (device id: \\?\HID#virtualdevice&10&Col03#2&d21ad2d&0&0002#{884b96c3-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding mouse #0: HID-compliant mouse (device id: \\?\HID#VID_046D&PID_C408#7&1e19524&0&0000#{378de44c-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding mouse #1: HID-compliant mouse (device id: \\?\HID#virtualdevice&10&Col01#2&d21ad2d&0&0000#{378de44c-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding mouse #2: HID-compliant mouse (device id: \\?\HID#virtualdevice&10&Col04#2&d21ad2d&0&0003#{378de44c-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding lightgun #0: HID-compliant mouse (device id: \\?\HID#VID_046D&PID_C408#7&1e19524&0&0000#{378de44c-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding lightgun #1: HID-compliant mouse (device id: \\?\HID#virtualdevice&10&Col01#2&d21ad2d&0&0000#{378de44c-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding lightgun #2: HID-compliant mouse (device id: \\?\HID#virtualdevice&10&Col04#2&d21ad2d&0&0003#{378de44c-56ef-11d1-bc8c-00a0c91405dd}) Skipping DirectInput for XInput compatible joystick 0x12b48d98. Input: Adding joystick #0: XInput Player 1 (device id: XInput Player 1) unzip: opened archive file roms\puckman.zip unzip: found roms\puckman.zip ECD unzip: roms\puckman.zip has no ZIP64 ECD locator unzip: read roms\puckman.zip central directory unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache Optional shared pointer ':rocktrv2_prot' not found Optional shared pointer ':s2650_tileram' not found Optional shared pointer ':s2650_spriteram' not found Optional memory region ':screen' not found Starting Puck Man (Japan set 1) ':' (missing dependencies; rescheduling) Starting Zilog Z80 ':maincpu' Starting 74LS259 Addressable Latch ':mainlatch' Starting Watchdog Timer ':watchdog' Starting gfxdecode ':gfxdecode' Starting palette ':palette' Starting Video Screen ':screen' Starting Speaker ':mono' (missing dependencies; rescheduling) Starting Namco ':namco' Starting Puck Man (Japan set 1) ':' (missing dependencies; rescheduling) Starting Speaker ':mono' Starting Puck Man (Japan set 1) ':' Attempting to parse: default.cfg Attempting to parse: puckman.cfg Average speed: 100.00% (8 seconds) Sound: buffer overflows=1 underflows=0 ------------------------------------------------------------------------------------------------------------------- 1920x1200 monitor c:\O\Games\MAME>mame puckman -autostretchxy -norc -nofilter -verbose Reading translation file English: 1 strings, original table at word offset 7, translated table at word offset 9 Loaded 0 translations from file English Starting plugin data... Video: Monitor 65537 = "\\.\DISPLAY1" (primary) Direct3D: Using Direct3D 9 Physical width 1920, height 1200 Direct3D: Initialize Direct3D: Configuring adapter #0 = AMD Radeon (TM) R9 390 Series Direct3D: YUV format = RGB Direct3D: Max texture size = 16384x16384 Direct3D: Device created at 1920x1200 Direct3D: Initialize HLSL Direct3D: Unable to find D3DXCreateEffectFromFileW RawInput: APIs detected RawInput: APIs detected RawInput: APIs detected DirectSound: Primary buffer: 48000 Hz, 16 bits, 2 channels Input: Adding keyboard #0: Wireless Keyboard Filter Device (device id: \\?\HID#VID_045E&PID_07B2&MI_00#7&84af9a8&0&0000#{884b96c3-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding mouse #0: HID-compliant mouse (device id: \\?\HID#VID_045E&PID_07B2&MI_01&Col01#7&1b8c441a&0&0000#{378de44c-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding lightgun #0: HID-compliant mouse (device id: \\?\HID#VID_045E&PID_07B2&MI_01&Col01#7&1b8c441a&0&0000#{378de44c-56ef-11d1-bc8c-00a0c91405dd}) unzip: opened archive file roms\puckman.zip unzip: found roms\puckman.zip ECD unzip: roms\puckman.zip has no ZIP64 ECD locator unzip: read roms\puckman.zip central directory unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache unzip: found roms\puckman.zip in cache unzip: opened archive file roms\puckman.zip unzip: closing archive file roms\puckman.zip and sending to cache Optional shared pointer ':rocktrv2_prot' not found Optional shared pointer ':s2650_tileram' not found Optional shared pointer ':s2650_spriteram' not found Optional memory region ':screen' not found Starting Puck Man (Japan set 1) ':' (missing dependencies; rescheduling) Starting Zilog Z80 ':maincpu' Starting 74LS259 Addressable Latch ':mainlatch' Starting Watchdog Timer ':watchdog' Starting gfxdecode ':gfxdecode' Starting palette ':palette' Starting Video Screen ':screen' Starting Speaker ':mono' (missing dependencies; rescheduling) Starting Namco ':namco' Starting Puck Man (Japan set 1) ':' (missing dependencies; rescheduling) Starting Speaker ':mono' Starting Puck Man (Japan set 1) ':' Attempting to parse: default.cfg Attempting to parse: puckman.cfg Average speed: 100.03% (4 seconds) Sound: buffer overflows=3 underflows=0 |
|
No.19350
john_iv Senior Tester
Oct 15, 2021, 18:16
|
For vertical games the cropping occurs using Y only axis as well. See pics. |
 No.19358
ICEknight Tester
Oct 16, 2021, 01:49
edited on: Oct 16, 2021, 19:49
|
Can confirm this, since it also happens to me: https://i.imgur.com/F9Dhenf.png |
|
No.19359
ICEknight Tester
Oct 16, 2021, 20:22
|
Also of note, "intoverscan" is turned off in my tests (and I assume the OP's too), so the picture shouldn't be going outside of the screen boundaries. When this bug happens, it makes no difference whether it's on or off, so perhaps the problem might be related? |
 No.19362
B2K24 Senior Tester
Oct 20, 2021, 01:00
|
I can confirm this behavior using my Acer Predator XB271HU |
|
No.19714
john_iv Senior Tester
Jan 24, 2022, 17:50
|
Resolved and fixed. Marking as closed. |
