03868: moguchan: Original pcb screen shots for reference

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
03868	Original Reference	Minor	Always	May 29, 2010, 17:12	May 30, 2010, 02:54

Tester	Smitdogg	View Status	Public	Platform
Assigned To		Resolution	Open	OS
Status [?]	Acknowledged			Driver	orca/zodiack.cpp
Version	0.138u1	Fixed in Version		Build
		Fixed in Git Commit		Github Pull Request #

Summary	03868: moguchan: Original pcb screen shots for reference
Description	Original pcb screen shots for reference
Steps To Reproduce
Additional Information
Github Commit

Flags	Verified with Original
Regression Version
Affected Sets / Systems	moguchan

Attached Files	2.jpg (111,977 bytes) May 29, 2010, 17:14

No.06206 M.A.S.H. Senior Tester May 29, 2010, 19:24 edited on: May 29, 2010, 19:25	I think i got it. With ROM_CONTINUE for the first color prom we got the new screenshots. Notes to Smitdogg pictures: - In the first pictures you can't see the 'INSERT COIN' message. But if you use a paint programm with Brightness/Contrast changes you can see it. - If you think the big devil at the top has now wrong colors, then compare it with Smitdogg's first picture. It is in the second picture darker, but it is correct! Changed in drivers\zodiack.c lines 630-632 from: ROM_REGION( 0x0040, "proms", 0 ) ROM_LOAD( "moguchan.2a", 0x0000, 0x0020, CRC(e83daab3) ... ) ROM_LOAD( "moguchan.2b", 0x0020, 0x0020, CRC(9abfdf40) ... ) to ROM_REGION( 0x0040, "proms", 0 ) ROM_LOAD( "moguchan.2a", 0x0018, 0x0008, CRC(e83daab3) ... ) ROM_CONTINUE( 0x0010, 0x0008 ) ROM_CONTINUE( 0x0008, 0x0008 ) ROM_CONTINUE( 0x0000, 0x0008 ) ROM_LOAD( "moguchan.2b", 0x0020, 0x0020, CRC(9abfdf40) ... )
No.06207 Haze Senior Tester May 30, 2010, 02:54	that doesn't fix the sprite colours (see hammer) I think the problem runs deeper (if it's a bootleg, maybe it's not identical hardware to the other things in the driver)

No.06206

M.A.S.H.

Senior Tester

May 29, 2010, 19:24

edited on: May 29, 2010, 19:25

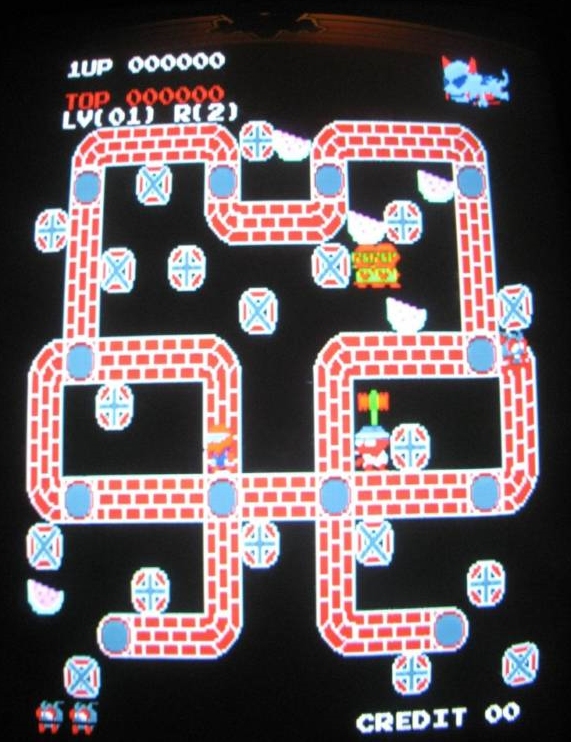

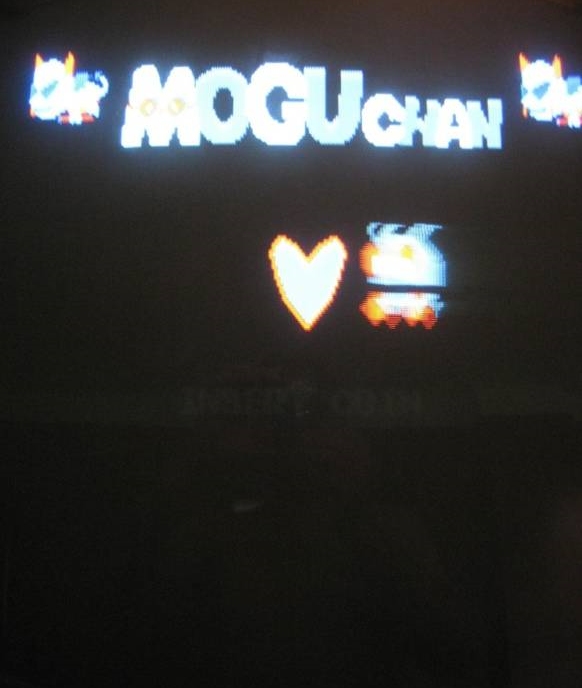

I think i got it. With ROM_CONTINUE for the first color prom we got the new
screenshots.
Notes to Smitdogg pictures:
- In the first pictures you can't see the 'INSERT COIN' message. But if you use a
paint programm with Brightness/Contrast changes you can see it.
- If you think the big devil at the top has now wrong colors, then compare it with
Smitdogg's first picture. It is in the second picture darker, but it is correct!

Changed in drivers\zodiack.c lines 630-632 from:

ROM_REGION( 0x0040, "proms", 0 )
ROM_LOAD( "moguchan.2a", 0x0000, 0x0020, CRC(e83daab3) ... )
ROM_LOAD( "moguchan.2b", 0x0020, 0x0020, CRC(9abfdf40) ... )

to

ROM_REGION( 0x0040, "proms", 0 )
        ROM_LOAD( "moguchan.2a", 0x0018, 0x0008, CRC(e83daab3) ... )
        ROM_CONTINUE( 0x0010, 0x0008 )
        ROM_CONTINUE( 0x0008, 0x0008 )
        ROM_CONTINUE( 0x0000, 0x0008 )
        ROM_LOAD( "moguchan.2b", 0x0020, 0x0020, CRC(9abfdf40) ... )

No.06207

Haze

Senior Tester

May 30, 2010, 02:54

that doesn't fix the sprite colours (see hammer) I think the problem runs deeper (if it's a bootleg, maybe it's not identical hardware to the other things in the driver)
