| ID | Category [?] | Severity [?] | Reproducibility | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 08829 | Graphics | Minor | Always | Feb 27, 2024, 07:09 | Feb 27, 2024, 08:45 |
| Tester | john_iv | View Status | Public | Platform | MAME (Official Binary) |
| Assigned To | Resolution | Open | OS | Windows 10/11 (64-bit) | |
| Status [?] | Confirmed | Driver | |||
| Version | 0.262 | Fixed in Version | Build | 64-bit | |
| Fixed in Git Commit | Github Pull Request # | ||||
| Summary | 08829: cliffhgr: 'Default' BGFX Chain produces off-center (to right) output in non-LD content in Cliff Hanger | ||||
| Description |
Cliff Hanger has the option for two Screen Effects, 0 and 1 (accessed from tab / slider menu). Windows 0, Screen Effect 1 affects the high score table, programmers credits, and instructions display. When Windows 0, Screen Effect 1 is set to something like 'default', the text screens push off to the right and don't center. It is necessary to set Windows 0, Screen Effect 1 to 'None' to get the three text screens centered. |
||||
| Steps To Reproduce |
No .ini necessary, take it out of the picture with -norc. 1. mame cliffhgr -norc -video bgfx -bgfx_screen_chains default,default (produces the problem with the shifted text) 2. Hit insert to FF to the blue text screens, hiscore, credits, instructions 3. mame cliffhgr -norc -video bgfx -bgfx_screen_chains default,none (text is now centered) 4. Hit insert to FF to the blue text screens, hiscore, credits, instructions alternatively: 1. mame cliffhgr -norc -video bgfx -bgfx_screen_chains default,default (observe shifted text) 2. Hit insert to FF to one of the shifted blue text screens and pause. 3. Hit tab, slider control 4. Alter Window 0, Screen 1 effect to none 5. Observe text come back into center |
||||
| Additional Information | |||||
| Github Commit | |||||
| Flags | |||||
| Regression Version | |||||
| Affected Sets / Systems | cliffhgr | ||||
|
Attached Files
|

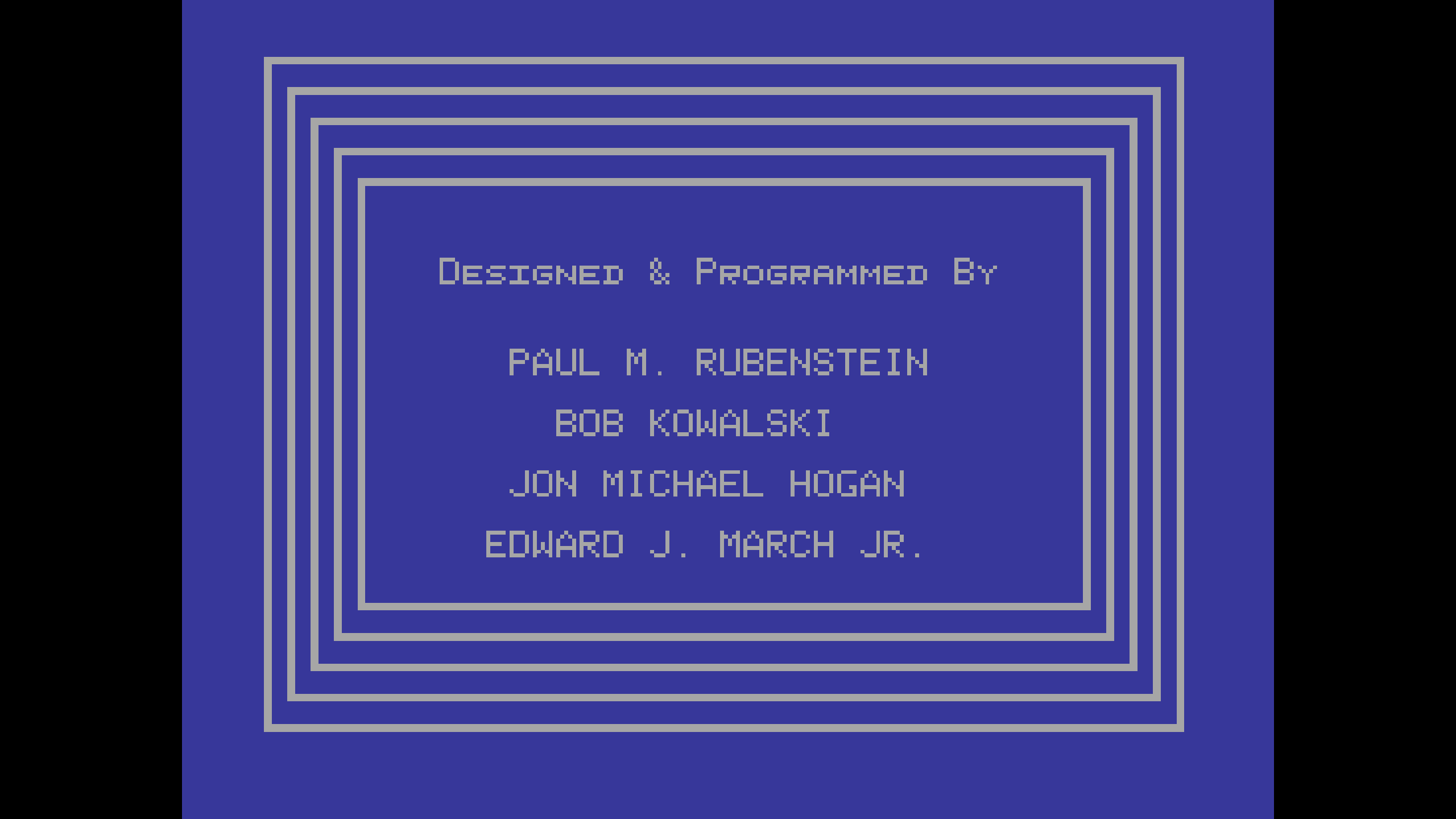

 1.png (98,124 bytes) Feb 27, 2024, 07:10 Uploaded by john_iv | ||||

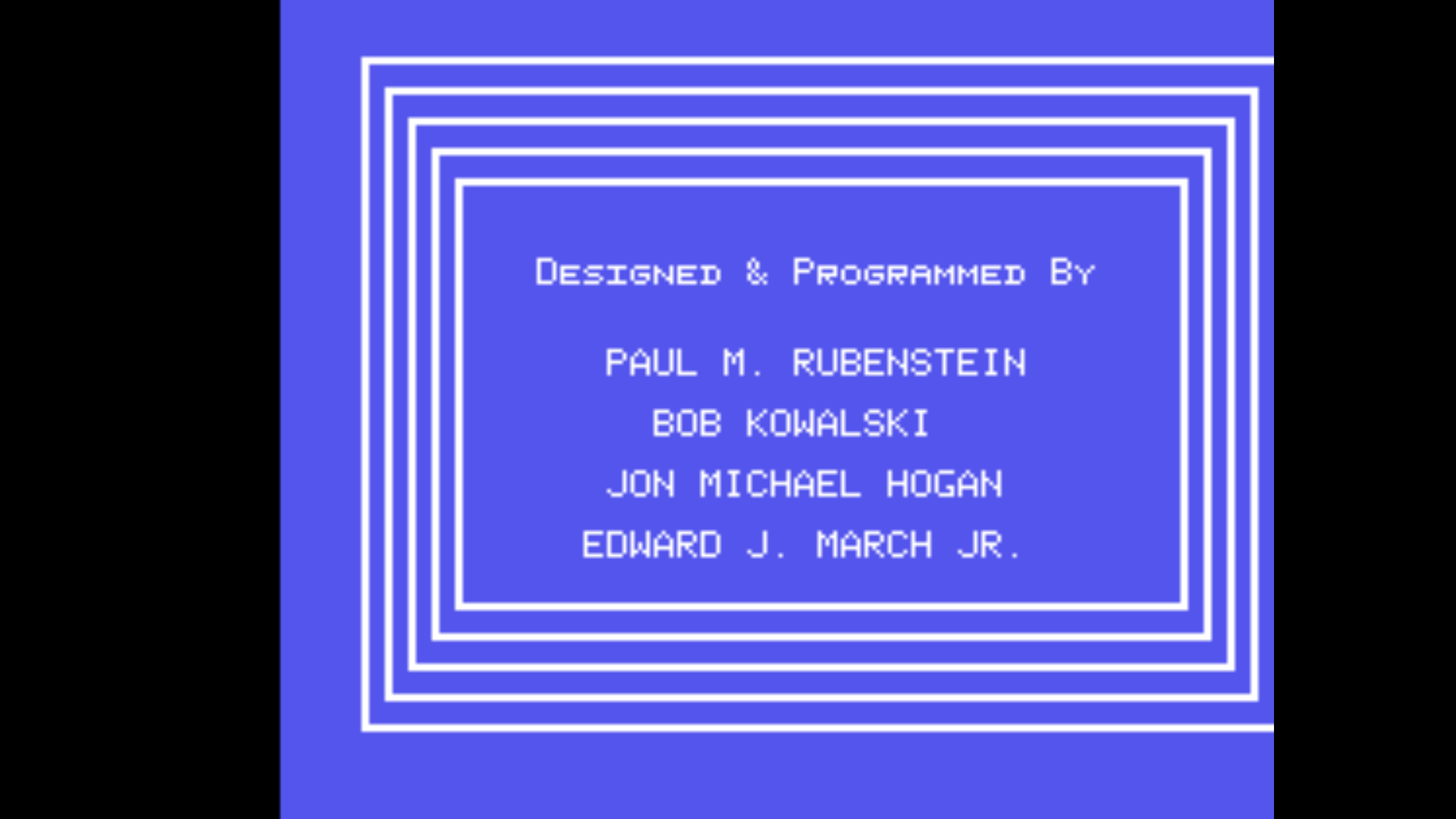

| 2.png (16,439 bytes) Feb 27, 2024, 07:10 Uploaded by john_iv | |||||
| 3.png (200,374 bytes) Feb 27, 2024, 07:10 Uploaded by john_iv | |||||
 No.21987
john_iv Senior Tester
Feb 27, 2024, 07:14
|
Repro in release 0.262 and tip of master 0.262 (mame0262-389-gb316d47bbb7). Note: 'mame.exe cliffhgr -norc -video d3d' is centered (-nohlsl being used by default) |
|---|---|
 No.21989
Robbbert Senior Tester
Feb 27, 2024, 08:45
|
Confirmed as per john_iv. I don't have the chd. |
