| ID | Category [?] | Severity [?] | Reproducibility | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 01058 | Documentation | Typo | Have not tried | Feb 9, 2008, 04:28 | Jul 13, 2008, 14:09 |
| Tester | Kold666 | View Status | Public | Platform | |
| Assigned To | nicolasa | Resolution | Fixed | OS | |
| Status [?] | Resolved | Driver | |||
| Version | 0.111u2 | Fixed in Version | 0.126u1 | Build | |
| Fixed in Git Commit | Github Pull Request # | ||||
| Summary | 01058: exctsccrb: Exciting soccer bootleg should be placed in champbas.c. | ||||
| Description |
For the sake of documentation, Exciting soccer bootleg should be placed in champbas.c. Me and f205v have dumped it 2 years ago (same dump as the current one), we documented the hardware saying: Alpha denshi co. LTD made in Japan cpu board 58AS1 Display board 58AS2 Voice board 58AS3 KAZUTOMI board 1x Alpha8201 (CPU board) 1x AY-3-8910 (CPU board) 1x Sharp Z80ACPU (CPU board) 1x Sharp Z80ACPU (VOICE board) 3x 2764 (CPU board) (1-2-3) 3x 2764 (VOICE board) (a-b-c) 2x 2764 (DISPLAY board) (4-5) 1x 2764 (daughter board kazutomi) (6) 2x 2732 (daughter board kazutomi) (7-8) The hardware is very different from Exciting soccer 1 and 2. Most important on board there is an Alpha 8201 mcu instead of the 8301 one. I have just found that Exciting soccer (bootleg) is a conversion from Championship Baseball 2, look for yourself: http://www.citylan.it/exctsccb/PCB%20component%20side.jpg [citylan.it] http://www.crazykong.com/pcbs/A%20-%20F/ChampBaseball2.pcb.html [crazykong.com] I attach a (bad) pic of the kazutomi board, as you can see there is a lot of flying wires from that board to the original display board. So Exciting soccer bootleg should be placed in champbas.c Also the frequencies of the bootleg are wrong since they should be identical to the champbas.c games. As for the following comment in exctsccr.c source: "I'm using the ROMs from exctscc2, national flags are wrong (ITA replaces USA)" it's an original bug, the pcb does the same (forget the colours, I wired blue and red wrong on the pcb, but it's enough to see the original bug). Kazutomi forgot to patch it. The roms are good and have their original stickers (not modified) |
||||
| Steps To Reproduce | |||||
| Additional Information | exctsccr.c merged into champbas.c for 0.126u1 | ||||
| Github Commit | |||||
| Flags | |||||
| Regression Version | |||||
| Affected Sets / Systems | exctsccrb | ||||
|
Attached Files
|

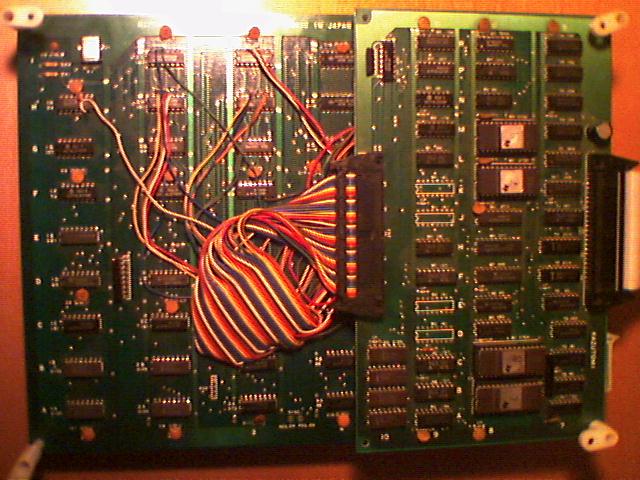

| kazutomi board.jpg (71,146 bytes) Feb 14, 2008, 17:56 | |||||
 No.01603
nicolasa Developer
Jul 13, 2008, 14:09
|
I merged the two drivers. |
|---|
