01667: mtwins, chikij: A strange bar on top of the continue screen when game is over.

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
01667	Graphics	Minor	Always	Apr 3, 2008, 21:24	Apr 5, 2008, 12:49

Tester	Layne	View Status	Public	Platform	MAME (Official Binary)
Assigned To		Resolution	Bugs That Aren't Bugs	OS	Windows XP/Vista 32-bit
Status [?]	Resolved			Driver	capcom/cps1.cpp
Version	0.124u1	Fixed in Version		Build	Normal
		Fixed in Git Commit		Github Pull Request #

Summary	01667: mtwins, chikij: A strange bar on top of the continue screen when game is over.

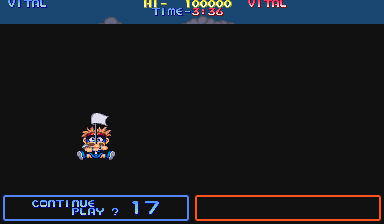

Description	A strange bar on top of the continue screen when game is over. It's clearly the background of the level where you died. Screenshot 0001.png is of 0.112u2, showing alternate behavior.
Steps To Reproduce
Additional Information
Github Commit

Flags
Regression Version	0.112u3
Affected Sets / Systems	mtwins, chikij

Attached Files	0000.png (3,516 bytes) Apr 3, 2008, 21:25

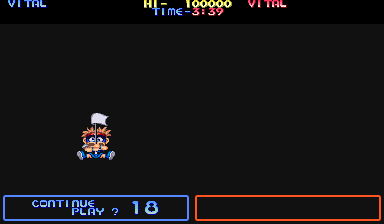

No.00536 Tafoid Administrator Apr 3, 2008, 22:15 edited on: Apr 3, 2008, 22:23	This reported behavior starts in 0.112u3. Prior to that the band of area at the top of the screen was still there - just a black background instead (attached) and the background was more of a gray color otherwise. Change related to this, perhaps: "Connected brightness support on the CPS1 board (not just CPS2) after verifying that the real board does support it. [MAME Italia forum]" Question is.. can we PCB verify that this reported bug is correct?
No.00580 nicolasa Developer Apr 5, 2008, 11:01	A test of the PCB is absolutely needed. The game is definitely not placing opaquea characters on the top part of the screen, while it does put them in the rest of the screen. The palette is changed by setting the "brightness" part to 0, however it has been verified with tests on other PCBs that such setting doesn't correspond to a black color, but rather to just a darker color (50% in current MAME). Therefore the background should definitely show on the PCB, though possibly at a different brightness than what MAME shows currently.
No.00582 Kold666 Developer Apr 5, 2008, 11:15	Stefan Lindberg has the pcb

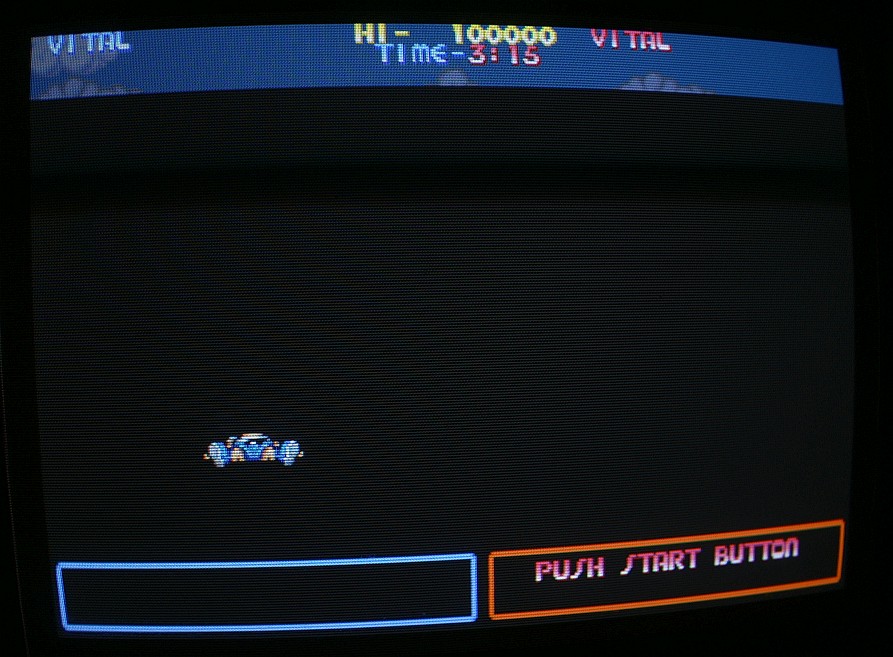

No.00587 Stefan Lindberg Senior Tester Apr 5, 2008, 12:30	It looks like that on the PCB so it's correct :-) I attached a picture.
No.00588 Tafoid Administrator Apr 5, 2008, 12:49	Updated BTANB status. Thanks for the verification.
