| ID | Category [?] | Severity [?] | Reproducibility | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 02199 | DIP/Input | Minor | Always | Sep 3, 2008, 19:51 | Oct 27, 2008, 01:09 |
| Tester | M.A.S.H. | View Status | Public | Platform | MAME (Self-compiled) |
| Assigned To | Kale | Resolution | Fixed | OS | |
| Status [?] | Resolved | Driver | |||
| Version | 0.127u1 | Fixed in Version | 0.128u2 | Build | |
| Fixed in Git Commit | Github Pull Request # | ||||
| Summary | 02199: banbam, pettanp: The 4th 'Unused' dipswitch is the 'Freeze' switch. | ||||
| Description |

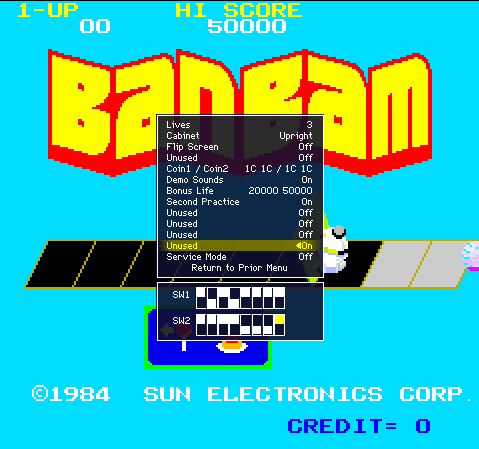

In MAME 0.113u4 did Brian Troha fixed the dipswitches according to the manual. One of the changes was from PORT_DIPNAME( 0x10, 0x00, "Unknown 2-5" ) PORT_DIPSETTING( 0x00, DEF_STR( Off ) ) PORT_DIPSETTING( 0x10, DEF_STR( On ) ) PORT_DIPNAME( 0x20, 0x00, "Unknown 2-6" ) PORT_DIPSETTING( 0x00, DEF_STR( Off ) ) PORT_DIPSETTING( 0x20, DEF_STR( On ) ) PORT_DIPNAME( 0x40, 0x00, "Unknown 2-7" ) PORT_DIPSETTING( 0x00, DEF_STR( Off ) ) PORT_DIPSETTING( 0x40, DEF_STR( On ) ) PORT_DIPNAME( 0x80, 0x00, "Freeze" ) PORT_DIPSETTING( 0x00, DEF_STR( Off ) ) PORT_DIPSETTING( 0x80, DEF_STR( On ) ) to PORT_DIPUNUSED_DIPLOC( 0x10, 0x10, "SW2:5" ) /* These four dips are unused according to the manual */ PORT_DIPUNUSED_DIPLOC( 0x20, 0x20, "SW2:6" ) PORT_DIPUNUSED_DIPLOC( 0x40, 0x40, "SW2:7" ) PORT_DIPUNUSED_DIPLOC( 0x80, 0x80, "SW2:8" ) But there is a 'Freeze' DIP and you must set him (see screenhot) to play the game. |
||||
| Steps To Reproduce | |||||
| Additional Information | |||||
| Github Commit | |||||
| Flags | |||||
| Regression Version | 0.113u4 | ||||
| Affected Sets / Systems | banbam, pettanp | ||||
|
Attached Files
|
