Summary 03108: finalizr: White colour appear purple / sound incorrect
Description The colour white is displayed as purple in MAME, it should be white if judging from the PCB. see screenshot.
Sound/music is out of tune.
Steps To Reproduce
Additional Information
Github Commit
Flags Verified with Original
Regression Version
Affected Sets / Systems finalizr
Attached Files
png file icon finalizer_colour.png (107,877 bytes) Apr 13, 2009, 08:59
jpg file icon finalizer_front.jpg (2,289,441 bytes) Jun 22, 2015, 18:05 Uploaded by system11

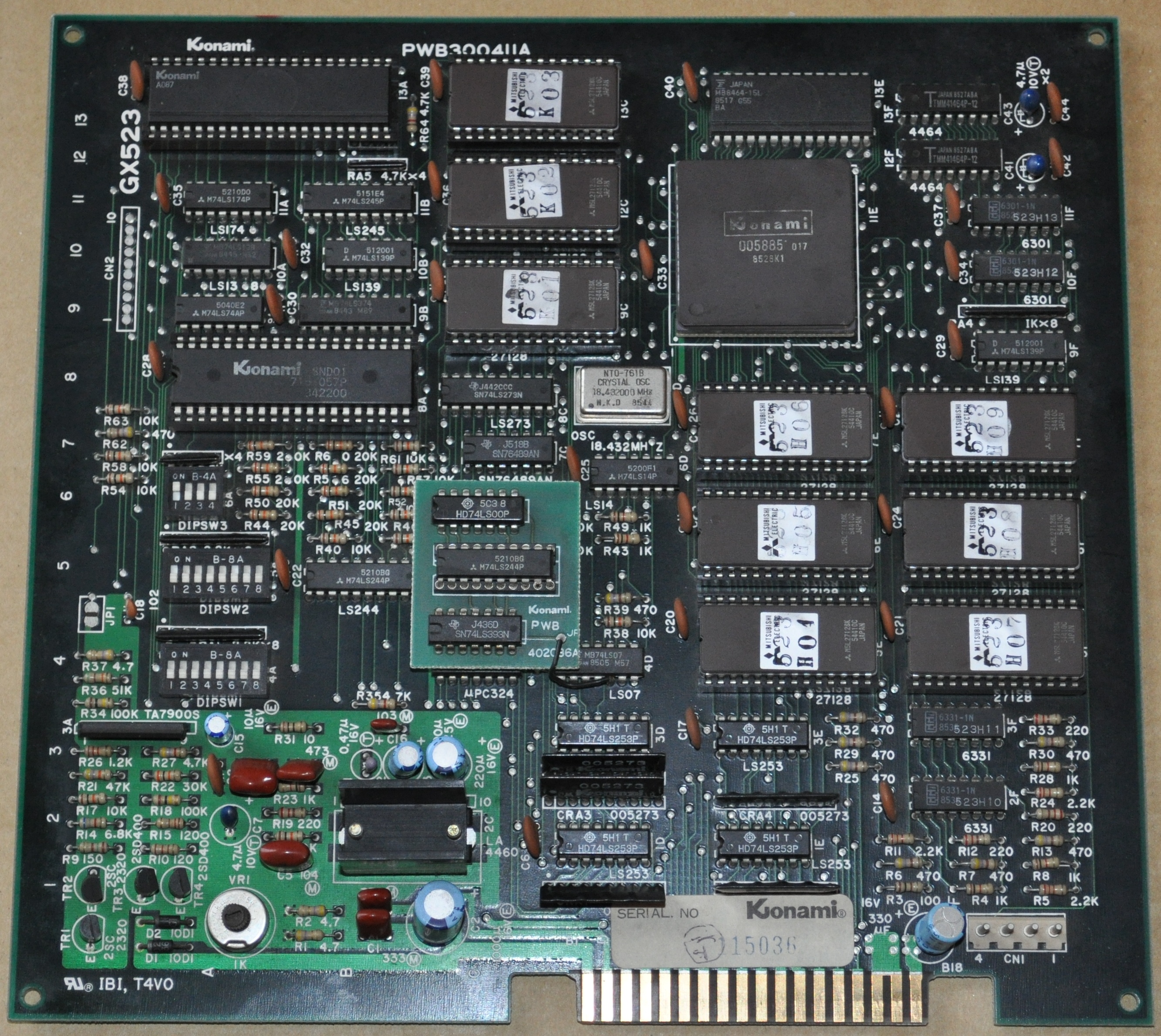

jpg file icon finalizer_back.jpg (2,108,541 bytes) Jun 22, 2015, 18:05 Uploaded by system11
Relationships
There are no relationship linked to this issue.
Notes
8
User avatar
No.06034
hap
Developer
May 2, 2010, 19:42
Not only that, but the other colours look bad too, look at the larger picture in the other report: http://www.mametesters.org/view.php?id=3102 (ignore the red enemies). The sea is about 20% green 80% blue, as opposed to 100% blue in MAME, and the land border is more defined.

Any resistor networks between the PROM/video chip and the connector on the PCB? -- I've hardly any knowledge on resnets myself though.
User avatar
No.06047
hap
Developer
May 5, 2010, 18:49
Oh, and could a PCB owner measure the clock speeds? It might fix (or at least help) the completely off-tune music, current clocks:

MDRV_CPU_ADD("maincpu", M6809,XTAL_18_432MHz/6) /* ??? */ (3mhz)
MDRV_CPU_ADD("audiocpu", I8039,XTAL_18_432MHz/2) /* 9.216MHz clkin ?? */
MDRV_SOUND_ADD("snsnd", SN76489A, XTAL_18_432MHz/12) (1.5mhz)
User avatar
No.11786
system11
Senior Tester
Jun 22, 2015, 18:04
I measured the clocks, plugging these into MAME results in ... bad sounds. There must be something else going on.

76489 - 651ns - 18.432 / 12
6809 - 651ns - 18.432 / 12
8039 - 162ns - 18.432 / 3

Additionally yes there are colour output resistors, interesting that MAME has a tint though since it looks like each colour has an identical set of resistors. Picture in MAME overall is dim and lacking vibrancy compared to the PCB, these are definitely involved.
User avatar
No.11787
Haze
Senior Tester
Jun 22, 2015, 19:02
have you verified the PROMs? in other cases where we've seen tints like this when the resistor levels are all the same it's ended up being due to a badly read prom with a floating bit.
User avatar
No.11788
system11
Senior Tester
Jun 22, 2015, 19:04
I'll see if I can get hold of a second PCB from somewhere, dead or alive, and desolder them - not really feeling like pulling them out of this one at the moment. Luckily it's a cheap game.
User avatar
No.19727
M.A.S.H.
Senior Tester
Jan 26, 2022, 22:04
edited on: Jan 26, 2022, 22:04
Can "sound incorrect" removed from the title summary? --> 03108: finalizr: White colour appear purple / sound incorrect

Added sound mcu internal rom (0.241):
https://git.redump.net/mame/commit/src/mame/drivers/finalizr.cpp?id=8b91f962834983a877efcfe757b5cea863839390

Removed imperfect sound flag (0.241):
https://git.redump.net/mame/commit/src/mame/drivers/finalizr.cpp?id=dcca7801b8b515148517d00966c58a74ca19b89a
User avatar
No.19741
Fortuna
Tester
Jan 31, 2022, 20:57
the sound now is 80 to 90% fixed, only need fix the pitch for bgm only, maybe for the next update the sound is fixed to 100%
Color maybe need more data and better screenshot (need more screens)

PS: exist a set with the life bar down (this maybe is possible with old set or bootleg set)
User avatar
No.19744
hap
Developer
Feb 1, 2022, 10:08
Music pitch sounds same as the PCB to me:
