Summary 03747: ckong, cclimber, possibly others: Slightly wrong sprite offsets.
Description Again, using that video, we have another issue which was patched because it's not expected behavior - but it actually is:

There should be a one pixel area between Kong's feet and the level below, most noticeable on the barrel screen. You can see it in the video if you go full screen that there is clearly a one pixel gap that was 'fixed' in a previous MAME.


-----
see comments for more information, bigsprite issue was fixed in 138u2
Steps To Reproduce
Additional Information Was caused by:
Cleaned up the Crazy Climber video driver, mainly via tilemap
conversion. This fixes the ape sprite positioning in Crazy Kong - no
more gap between feet and platform. Merged Yamato driver with Crazy
Climber. [Zsolt Vasvari]


Reported by crazykongfan at KLOV forums:
http://forums.arcade-museum.com/showpost.php?p=1083657&postcount=8
Github Commit
Flags
Regression Version 0.123u3
Affected Sets / Systems ckong, cclimber, possibly others
Attached Files
png file icon ckong-video-1.png (82,351 bytes) Jun 19, 2010, 16:10
png file icon ckong-video-2.png (170,803 bytes) Jun 19, 2010, 16:10
png file icon MAME-ckong-new.png (4,313 bytes) Jun 19, 2010, 16:11
zip file icon crazykong-falcon.zip (2,877,537 bytes) Jun 23, 2010, 16:49
Relationships
There are no relationship linked to this issue.
Notes
6
User avatar
No.06260
M.A.S.H.
Senior Tester
Jun 19, 2010, 16:11
The fix in MAME 0.138u2 from hap is not complete. If you read the report
at http://forums.arcade-museum.com/showpost.php?p=1083657&postcount=8
from the crazykongfan very carefully, he says that every object has a one

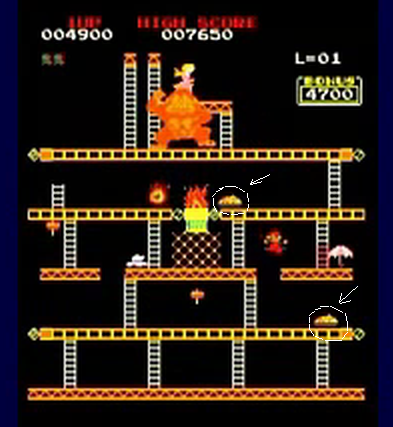

pixel gap. I downloaded the mp4 (!) video from YouTube and make two snapshots
from kong at the beginning and level 2, bump them up and you can see that
the kong (ckong-video-1.png) and the moving object (ckong-video-2.png) has
that pixel.
If you changed in mame\video\cclimber.c lines 575 and 581 to
x = 241 - x;
y = 241 - y;
the bug was fixed!!!. See screenshot (MAME-ckong-new.png).
User avatar
No.06272
hap
Developer
Jun 21, 2010, 17:28
Looking at it again, the video above is very likely an old MAME recording, and it doesn't show gaps between floor and sprites, eg. mario. Look closer.

here's some originals (bootlegs though):
orca:

unknown:


These do show gaps between floor and sprites.
More evidence would be handy, from an original Falcon board.
User avatar
No.06273
hap
Developer
Jun 21, 2010, 17:32
Here's Crazy Climber, also showing the x + 1 offset, with unflipped screen (so your quick fix above is bogus):


Hmm, and if you look at the eyes of that big ape (at 1:05), sprites seem to have an y + 1 offset too, but then the climber guy y offset would be wrong.

Again, this will need more investigation
User avatar
No.06282
hap
Developer
Jun 22, 2010, 15:01
Tafoid was able to reconfirm Crazy Climber x + 1 via a friend (by climber character in relation to windows). This and ckong pixel gap will be fixed in 138u3.

I'll leave this report open, since y offset isn't accurate yet, and other games on similar hardware haven't been tested.
User avatar
No.06291
hap
Developer
Jun 23, 2010, 16:52
crazykong-falcon.zip contains Smitdogg's pictures of Crazy Kong, showing that (compared to MAME ckongalc) sprite and bigsprite X/Y is correct now.

Should we set this report to resolved again? Or await hardware checks of games on similar hardware? like Swimmer, Top Roller, ..
User avatar
No.06749
CrazyKongFan
Tester
Oct 6, 2010, 20:00
edited on: Oct 6, 2010, 20:04
Hap, the above video, if done with MAME, was spot on with an arcade PCB...I don't remember any version of MAME being that close to the original. It's got all the 1 pixel offsets, and also the extra lower-pitched chest beat sounds that aren't present in MAME (see http://www.mametesters.org/view.php?id=3743). That's why I mentioned it as a reference (to Tafoid). Anyway, things look correct now for the most part. It's even correctly offset 1 pixel the opposite direction in cocktail mode, so instead of floating 1 pixel above, Mario, Kong, etc are 1 pixel in the beams in cocktail mode. There is one other thing I noticed in cocktail mode that MAME doesn't seem to do though. On the 2nd player, when Mario is on the ladder, he's offset 1 or 2 pixels to the left (as viewed from player 2 side). Also, when Kong goes up the ladder, he has one piece of his sprite offset 1 pixel (this can be seen on the Scramble and Galaxian sets...looks like he has a black line in his left leg, since that part of the leg is offset 1 pixel to the right, or the rest of him is offset 1 pixel to the left, not sure which). I can provide pics if needed.
