Summary 04194: sf2hf, sf2hfu, sf2hfj: Original PCB videos
Description This is a video (9:30 length) with all dips off:

http://smitdogg.mameworld.info/mametesters/sf2hfu.wmv


Here is one (same length) with almost all dips filpped up (see attached picture). Flipping the others just seemed to either flip the screen or freeze it or run garbage down the side:

http://smitdogg.mameworld.info/mametesters/sf2hfu-dipsup.wmv


Running the 12 Mhz Dash A board.
Steps To Reproduce
Additional Information
Github Commit
Flags Verified with Original
Regression Version
Affected Sets / Systems sf2hf, sf2hfu, sf2hfj
Attached Files

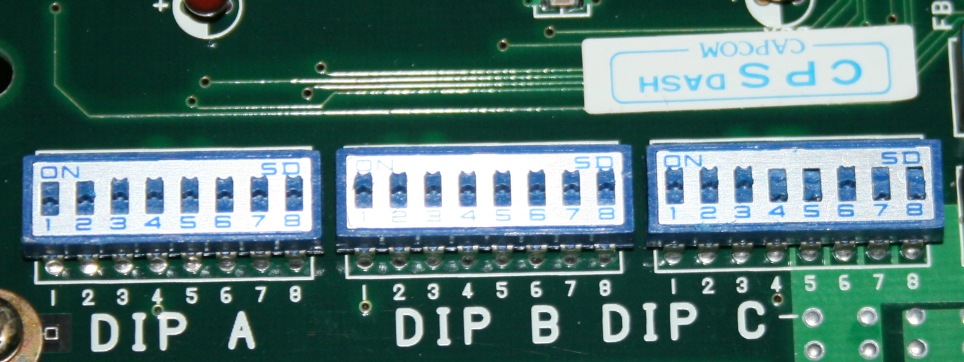

jpg file icon dips on second vid.jpg (135,844 bytes) Jan 22, 2011, 04:24
Relationships
related to 00408Confirmed  sf2hfu: Running too fast.
Notes
1
User avatar
No.07109
Smitdogg
Senior Tester
Jan 22, 2011, 06:41
I forgot to make the mono audio cover both speakers on the second vid... Ah well, doesn't make any difference...
