Summary 05035: janputer, ippatsu: DIP switch info.
Description I received this information via a mail.

This pdf contains the manual of ippatsu,

It describes Ippatsu Gyakuten was provided as a sub board for any Royal Mahjong games, how to convert boards, functions and DIP switch settings. And Ippatsu can be converted into "Super Duble BET" version by swapping S1-11 and S2-12 on the sub board of ippatsu.

Here's DIPs:


Pay out rate 1-4: (crabbed scan)

Bet Max 1: SW6 ON, SW7 ON
Bet Max 3: SW6 OFF, SW7 ON
Bet Max: 5: SW6 ON, SW7 OFF
Bet Max 10: SW6 OFF, SW7 OFF

Open Reach Yes: SW8 OFF
Open Reach No: SW8 ON

- Sub DIPSW-1

Yakuman Cut: SW1 OFF, SW2 OFF
3-bai man Cut: SW1 ON, SW2 OFF
Baiman Cut: SW1 Off, SW2 On
No Cut: SW1 On, SW2 On

Yakuman Prize A (300): Sw3 Off, Sw4 Off
Prize B (200) :On, Off
Prize C (100): Off, On
Prize D (32): On. On

Double Ups 3 times: Sw5 On, Sw6 On
4 times: Off On
5 times: On Off
6 times: Off Off

Last Chance 5 times: Sw7 off
3 times: on

Unused: sw8

- Sub DIPSW2

Double Chance (1/8) Yes: Sw1 off
No: Sw1 on

2nd Bonus Yes: Sw2 off
No: Sw2 on

Double BET Yes: Sw3 off
No: Sw3 on

Heart Chance no: Sw4 on Sw5 on
Heart Chance 1/8 (12.5%): off on
Heart Chance 1/4 (25%): on off
Heart Chance 1/2 (50%): off off

Closing credits 300: Sw6 off, Sw7 off
Closing credits 500: Sw6 on, Sw7 off
Closing credits 800: Sw6 off, Sw7 on
Closing credits 1000: Sw6 on, Sw7 on

Message Yes: sw8 off
No: sw8 on
Steps To Reproduce
Additional Information
Github Commit
Regression Version
Affected Sets / Systems janputer, ippatsu
Attached Files

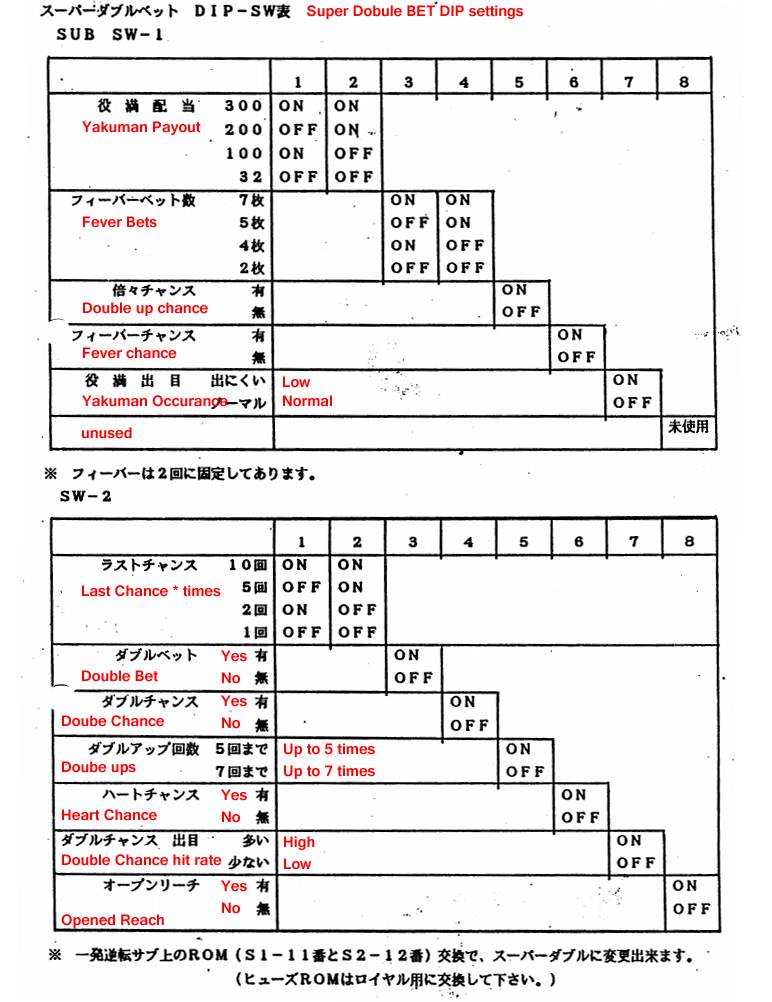

png file icon superdoublebetdips.png (302,344 bytes) Oct 11, 2012, 04:05 Uploaded by Fujix
Super Double Bet DIP switch settings
There are no relationship linked to this issue.
User avatar
Oct 11, 2012, 04:14
edited on: Oct 11, 2012, 04:14

This page also has many other mahjong, hanafuda and 8-line games manuals like

8-line: Cherry Bonus 1, Cherry Bonus 2, Cherry Bonus 3, Cherry Bonus 5, El Dorado, Love Chance Gold, Miracle Joker, W-6, Wild Cat, Golden Miracle, JIngle Bell, Magical Odds, Magical Tonic, Ippatsu Gyakuten Three Seven Part 2, Ippatsu Gyakuten Three Seven, 7 Lock Dokkaan, Seven Rush

Hanafudas: Night Rose, Hana Renchan II, Hanaawase 6, Hanateppou, Hanadojo, Hanaarashi Part II, Hanaarashi, Hanaginga, Hanagokou, Hanagokou Gaiden Deluxe, Hanashoubu, Hanajingi, Hanatsubaki, Hanatsubaki Gaiden, Hanatengoku, Hanakagerou, Yumefuda

Mahjongs: Almond-Pinky, Cafe Doll, Cafe Paradise, Cafe Time, New Comic Mahjong, Johngputer 96, Jongputer Special, Shot Gun, Focus, Vegas, Ippatsugyakuten, Kyuukyokuno onna, Johnoh 88, Akamahjong Grand Prix, Daisharin, Daichuukaken, Daireach, Tenkaigen, Denjinhai, Mahjong if, Mahjong Club, Mahjong Studio 101, Mahjong Shinkirou, Mahjongkel Haisenzu, Raijinhai
User avatar
Oct 18, 2012, 20:10
edited on: Oct 18, 2012, 20:12
Fujix do you know how to add dipswitch settings to MAME source?
Not many devs know how to play these games, and thus can't test the (DIPs)code they changed.

*edit* oh, maybe Kale can add them, he likes playing Mahjong games.
User avatar
Jan 3, 2013, 16:28
But I don't like doing dips ;p
