Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
05782 Graphics Minor Always Nov 12, 2014, 23:14 22 days ago
Tester zaxxon View Status Public Platform MAMEUI
Assigned To hap Resolution Fixed OS Windows Vista/7 (32-bit)
Status [?] Resolved Driver
Version 0.155 Fixed in Version 0.272 Build Normal
Fixed in Git Commit 671e521 Github Pull Request #
Summary 05782: choplift: misaligned graphics on levels 3 & 4
Description note: the two clone sets 'chopliftbl' and 'chopliftu' do not have this problem:-

for the parent set: choplifter (8751 315-5151):

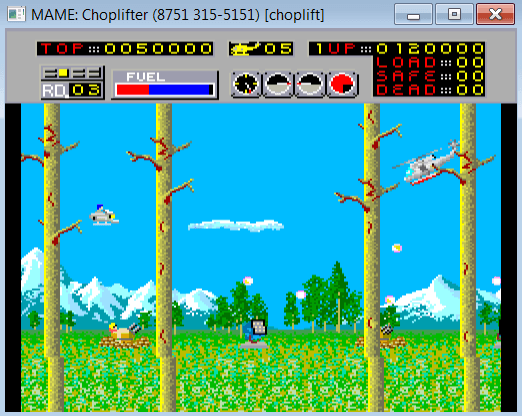

on level 3, when you are flying the helicopter and scrolling the screen, the large yellow trees graphics become misaligned (see the snapshot picture below). the alignment is ok when the screen is not scrolling. a save state (for mame 0.155) is provided.

here is a video (mame 0.155) showing the level 3 issue: http://www.mediafire.com/download/b9l4loyjb4q6bdh/choplift.avi

EDIT: i just noticed the graphics are also misaligned in a similar way on the final level, level 4. (level 4 save state now added below).
i dont know if it is related to the problem, but levels 1 and 2 contain the fancy parallax scrolling ground, but levels 3 and 4 do not.
Steps To Reproduce
Additional Information
Github Commit
Flags
Regression Version
Affected Sets / Systems choplift
Attached Files
png file icon choplift.png (27,090 bytes) Nov 12, 2014, 23:14 Uploaded by zaxxon
zaxxon
zip file icon choplift level 3.zip (6,152 bytes) Nov 13, 2014, 00:31 Uploaded by zaxxon
choplift - save state level 3 (mame 0.155)
zip file icon choplift level 4.zip (6,804 bytes) Nov 13, 2014, 00:31 Uploaded by zaxxon
choplift - save state level 4 (mame 0.155)
Relationships
There are no relationship linked to this issue.
Notes
7
User avatar
No.11243
B2K24
Senior Tester
Nov 13, 2014, 07:31
zaxxon, thank you for the save states. In the future, please take snap shots with the F12 key only as stated in the Rules and Guidelines.

I'll confirm this as I'm seeing the same behavior here.
User avatar
No.11244
zaxxon
Tester
Nov 13, 2014, 10:28
ah ok sorry about that, i will remember for next time
User avatar
No.11250
Haze
Senior Tester
Nov 14, 2014, 16:20
edited on: Nov 14, 2014, 16:20
there are reports on MARP that the parent set crashes sometimes too, could be the MCU rom that was hand-repaired (afiak) is still bad.
User avatar
No.11251
zaxxon
Tester
Nov 14, 2014, 22:01
there's some chat about the crash from others (plus a screenshot of the crash) here: http://www.jammaplus.co.uk/forum/forum_posts.asp?TID=66193&PID=642886&title=2014-highscore-challenge-round-20choplifter#642886
User avatar
No.16698
kazblox
Tester
Jul 28, 2019, 13:56
edited on: Jul 28, 2019, 13:57
According to Osso, the correct dump of the MCU does not fix the misalignment bug.
Has anyone checked if it happens on real hardware?
User avatar
No.16699
MetalGod
Senior Tester
Jul 28, 2019, 15:20
edited on: Jul 29, 2019, 18:44
I've seen videos on the internet which do not present the issue, but they could be the clones not affected by this bug.
User avatar
No.22419
hap
Developer
24 days ago
edited on: 22 days ago
I tried to force 1 screen update per frame, and I tried to force an update at each scanline, neither affected this issue.
It's suspicious that it works fine on chopliftu...
