Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
06174 DIP/Input Minor Always Apr 3, 2016, 22:13 Apr 8, 2024, 23:48
Tester ketburai View Status Public Platform
Assigned To Resolution Fixed OS
Status [?] Resolved Driver
Version 0.172 Fixed in Version 0.173 Build
Fixed in Git Commit Github Pull Request #
Summary 06174: fshark, skyshark, hishouza, tp84, tp84a, tp84b: Dipswitch info
Description is a pretty good website for Japan factory defaults, since it's pretty much impossible to find manuals online. Here's the page for Hi Sho Zame:

Hi Sho Zame is a very peculiar Toaplan release in that it uses the 50K/150K extend setting usually found in world releases (Japan releases usually have 70K/200K), and has continues disabled by default. Currently, continues are enabled in MAME.

This and a lot of other Toaplan (and Japanese '80s) games also run in cocktail mode by default, which is currently not the case in MAME. I don't know what MAME's policy on the cocktail dip is.

I'm not sure about the other releases, but I imagine Flying Shark uses the same dips at least (which is a rarity). A Sky Shark manual I found has some really wacky "recommended" settings; difficulty A, extend at 100k only, etc. I get the impression you're shipped a board with the Japan defaults and expected to press buttons yourself...

I also just found out that Time Pilot '84 is supposed to be difficulty 2, not difficulty 3:
Steps To Reproduce
Additional Information
Github Commit
Regression Version
Affected Sets / Systems fshark, skyshark, hishouza, tp84, tp84a, tp84b
Attached Files

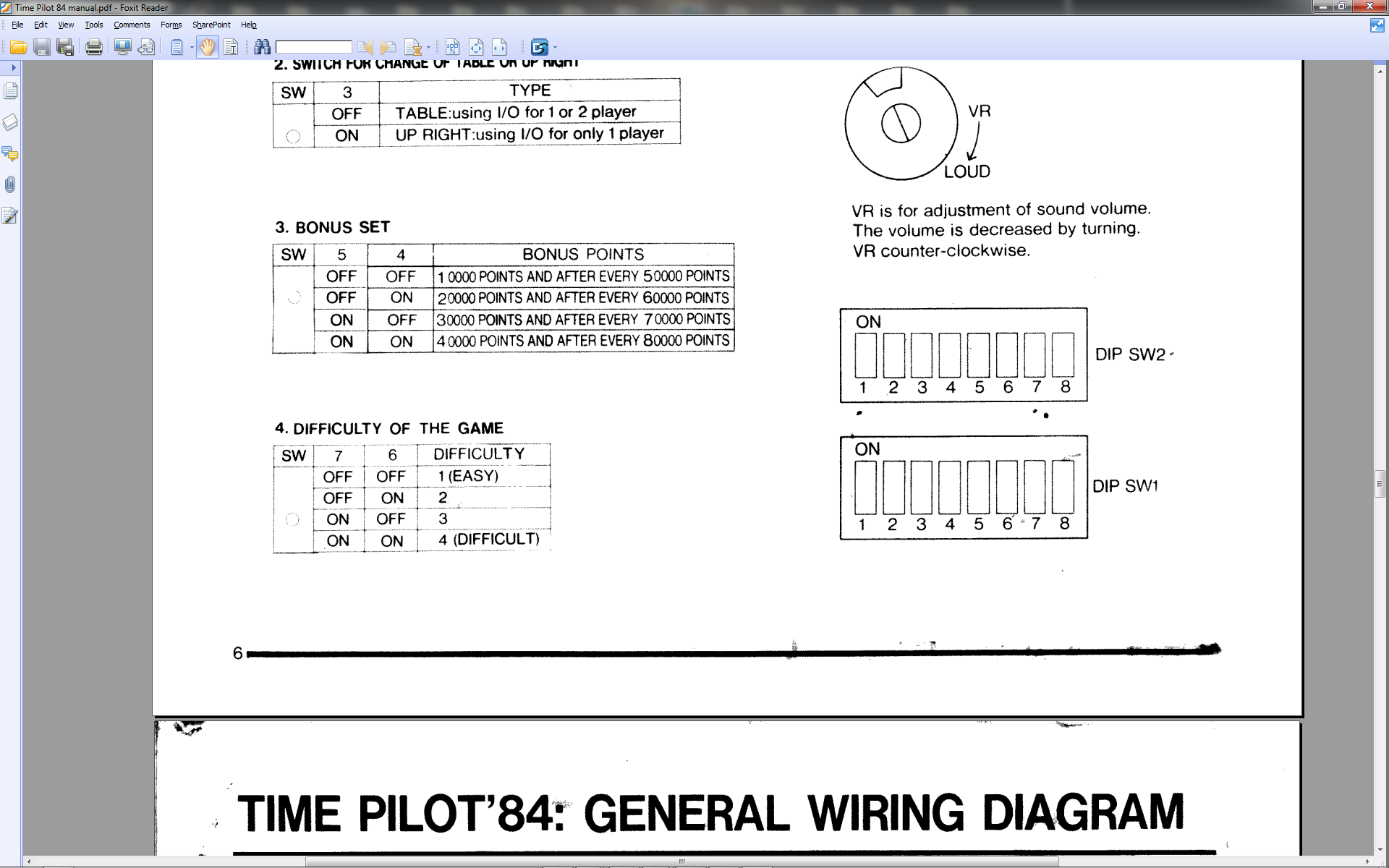

png file icon tp84-difficulty.png (326,126 bytes) Apr 4, 2016, 01:33 Uploaded by Tafoid
Time Pilot 84 - Difficuly Setting Dip

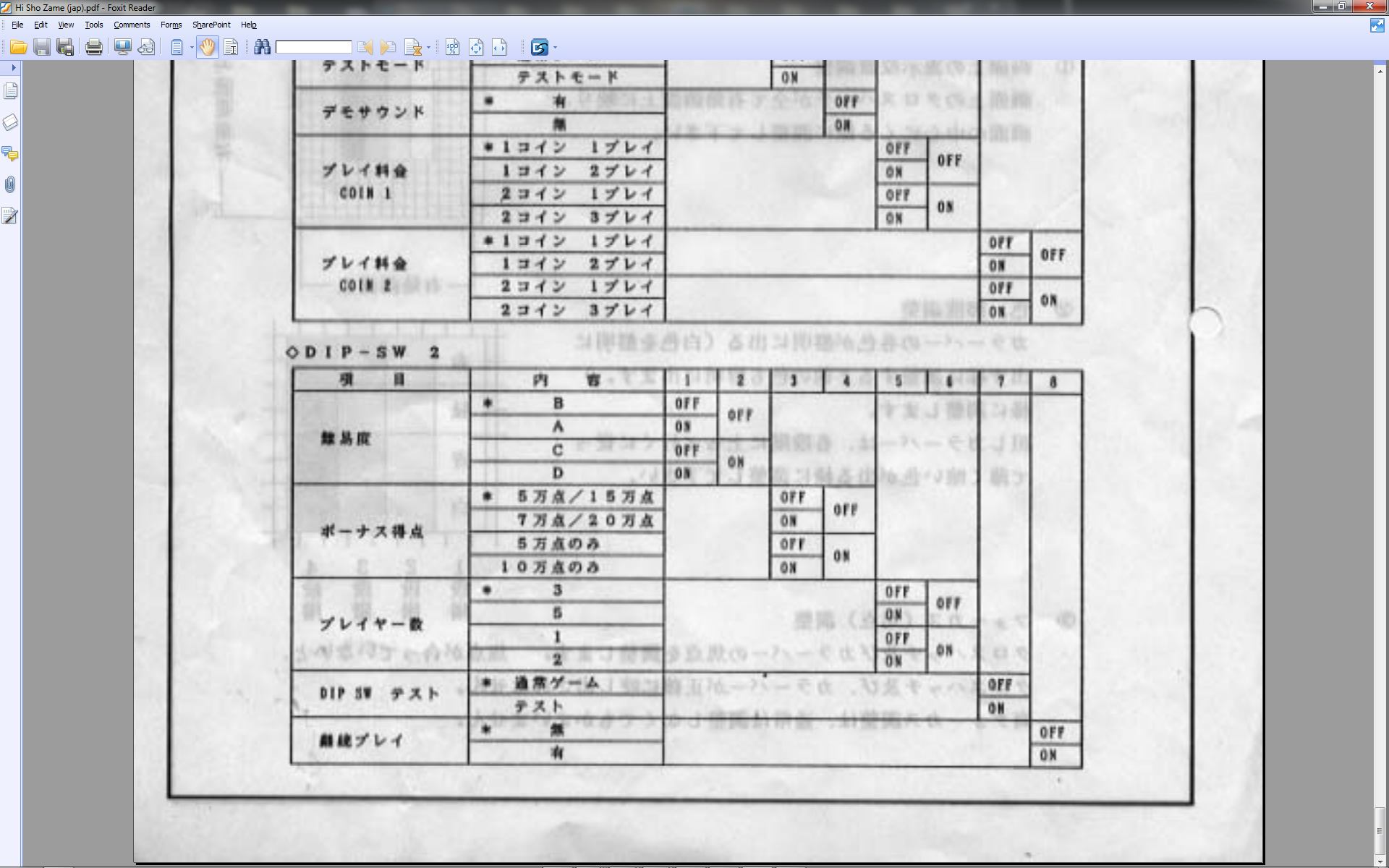

png file icon hishouza_dip.png (1,518,787 bytes) Apr 8, 2016, 11:16 Uploaded by Tafoid
Hishou Zame DIp Sheet - Continue OFF default
There are no relationship linked to this issue.
User avatar
Apr 4, 2016, 01:32
edited on: Apr 4, 2016, 01:33
The Time Pilot 84 assertion might have merit if any of the dumps we had were confirmed to be Japanese region. Everything in source that suggest US and Japan had different default difficulty settings (tp84.cpp) - Line 227
I've also included the manual snapshot indicating 3 as the default difficulty level.
PORT_DIPNAME( 0x60, 0x20, DEF_STR( Difficulty ) ) PORT_DIPLOCATION("SW2:6,7")
PORT_DIPSETTING( 0x40, DEF_STR( Normal ) ) // JP default
PORT_DIPSETTING( 0x20, DEF_STR( Hard ) ) // US default
PORT_DIPSETTING( 0x00, DEF_STR( Hardest ) )
User avatar
Apr 8, 2016, 11:14
For Hishou Zame, I was able to confirm via dip sheet that continues were off, so I adjusted that one only.
Traditionally, yes, we keep Upright as the default unless (much like Demo Sounds is always default ON), despite what defaults might say.
The remaining defaults should be ok for fshark and others and the dips themselves are fine and are all based on direct m68000/z80 code examination some time ago by one of the Developers (stephh) and you can examine his notes at the top of the driver file.
User avatar
Apr 8, 2024, 23:48
edited on: Apr 8, 2024, 23:51
Hi, I just wanted to say thank you for looking into this back then. I'm not sure why I didn't look for a Time Pilot '84 manual. Export manuals are readily available, but Japanese manuals are hard to come by, it's a bit frustrating. More frustrating is that, as you've said, none of the currently available sets have any indication of being for a specific region, so this really cannot go anywhere right now.

For future reference: nowadays, we have an Arcade Archives release for Time Pilot '84. I'm not sure what MAME's policy is regarding Arcade Archives and questions like this. In any event, if it at all helps, that release claims to be using the "Japanese version" (no other version is available) and has this game default to Normal difficulty.

Otokaru has changed their site structure slightly, so the links in the report are broken. This report is resolved, so it doesn't seem right to edit it directly. The correct pages are now and
