06632: All: Aperture effect extrapolate the boundaries of the screen limit

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
06632	Interface	Minor	Always	Jul 21, 2017, 12:03	Jul 25, 2017, 16:25

Tester	wuemura	View Status	Public	Platform	MAME (Official Binary)
Assigned To		Resolution	Open	OS	Windows 10 (64-bit)
Status [?]	Confirmed			Driver
Version	0.187	Fixed in Version		Build	64-bit
		Fixed in Git Commit		Github Pull Request #

Summary	06632: All: Aperture effect extrapolate the boundaries of the screen limit

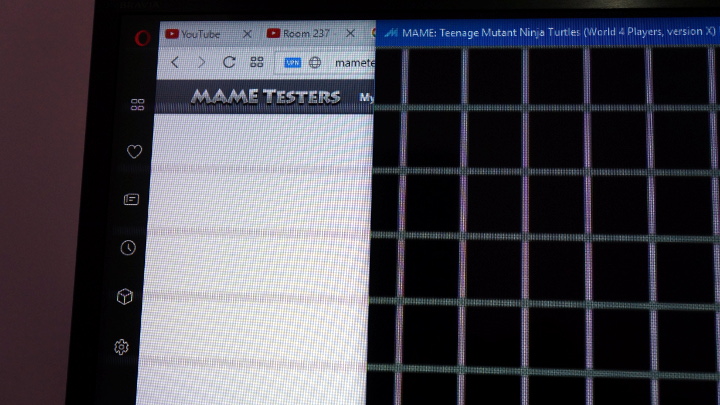

Description	When aperture effect aperture1x2rb, aperture1x3rb, aperture2x4bg or aperture2x4rb are applied, the effect extrapolate the boundaries of the screen limit.
Steps To Reproduce	Run mame in window mode with any of those effects applied, is much ease to see the problem with the "tmnt" rom right at the beginning with that cross lines but the issue apply to any rom.
Additional Information	It doesn't happen with other effects.
Github Commit

Flags
Regression Version
Affected Sets / Systems	All

Attached Files	aperture.JPG (139,763 bytes) Jul 21, 2017, 12:03 Uploaded by wuemura
	showconfig.txt (10,677 bytes) Jul 21, 2017, 20:43 Uploaded by wuemura [Show Content]
	mamamia.txt (6,798 bytes) Jul 21, 2017, 21:32 Uploaded by wuemura [Show Content]
	repro.mp4 (1,817,664 bytes) Jul 23, 2017, 11:18 Uploaded by Fujix Win10 64bit + i5 3550 + GeForce 7500Ti

No.14001 Tafoid Administrator Jul 21, 2017, 16:35 edited on: Jul 21, 2017, 16:35	I can't see such an effect when I try > mame -window -effect aperture2x4rb tmnt Nothing appears to escape or is seen outside of MAME's window with the default Window's render "d3d" Are you using any other video related options , modes or filters? If you could, please post an capture of this command: > mame -window -effect aperture2x4rb tmnt -showconfig > showconfig.txt The resulting text file will show you all your configuration values including anything you may have in command-line.
No.14002 wuemura Viewer Jul 21, 2017, 21:04 edited on: Jul 21, 2017, 21:15	All settings are default, no special configuration. showconfig.txt file uploaded. Thanks.

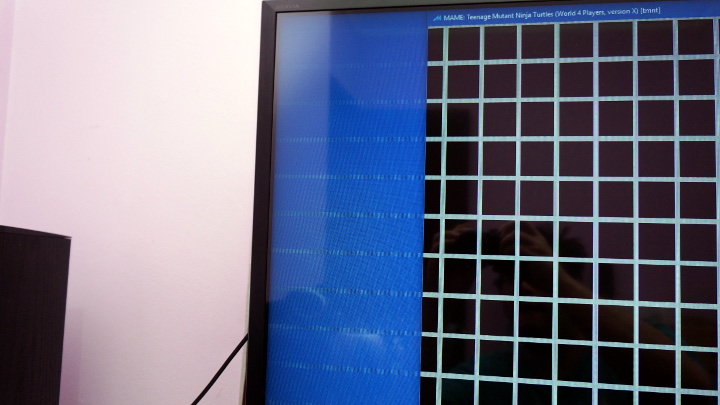

No.14003 wuemura Viewer Jul 21, 2017, 21:42 edited on: Jul 21, 2017, 21:46	I've deleted my mame.ini and generated a new one with mame64 -createconfig, same thing happens, see aperture2.JPG. Enabling the verbose and log it show the errors below using the default mame.ini generated by mame (no changes): [:screen] :screen: Deprecated legacy Old Style screen configured (MCFG_SCREEN_VBLANK_TIME), please use MCFG_SCREEN_RAW_PARAMS instead. Soft reset [:maincpu] ':maincpu' (00101A): unmapped program memory write to 10E800 = 1313 & 00FF Looks like this errors are game specific, robocop show something like that: [:ym1] YM2203 OPN using legacy output levels! Soft reset [:] CPU #0 PC 00013c: warning - write 00 to unmapped memory address 30c01a [:] CPU #0 PC 000144: warning - write 303 to unmapped memory address 30c01e [:maincpu] ':maincpu' (00017E): unmapped program memory read from 30C01E & FFFF [:] CPU #0 PC 00017e: warning - write 00 to unmapped memory address 30c01e [:maincpu] ':maincpu' (000184): unmapped program memory read from 30C018 & FFFF And the main issue persists, it looks like mame apply the effect to the whole screen instead limiting to the mame screen size, mame some video buffer related? Video memory related? I'm using a Sony KDL-47W802A for monitor connected by HDMI from a Radeon R7 250, for audio I have a ASUS Xonar Essence STX. Thanks.
No.14004 wuemura Viewer Jul 21, 2017, 21:43	mamamia.txt has the verbose output.
No.14005 Tafoid Administrator Jul 21, 2017, 21:48	I tried with your settings - you actually have several which are not default. Despite this, I cannot see those line outside the window on my screen using Win7, i5-3.2ghz, Intel HD Graphics 4600, Syncmaster T240 (Samsung). I started MAME with the following to match your config: > mame64 -gamma 1.2 -effect aperture2x4rb -cheat -skip_gameinfo -ui cabinet -window -waitvsync -syncrefresh -nofilter tmnt I'll leave open for a bit for others to attempt duplication. It may vary well be a monitor related issue (perhaps some color/saturation/temperature) on your end if no one can duplicate.
No.14006 B2K24 Senior Tester Jul 21, 2017, 22:23	Unable to reproduce testing at command line with what Tafoid posted.
No.14011 Fujix Administrator Jul 23, 2017, 11:25 edited on: Jul 23, 2017, 11:32	This reproduced with the Tafoid's command on my desktop PC. Uploaded a short video capture. I also captured the screen directly, but no problem found, which means we can't capture this effect by the Print Screen key. Here's my verbose output: mame 0.187 Copyright (C) Nicola Salmoria and the MAME team Lua 5.3 Copyright (C) Lua.org, PUC-Rio Video: Monitor 65537 = "\.\DISPLAY1" (primary) Direct3D: Using Direct3D 9 Physical width 1511, height 1160 Direct3D: Initialize Direct3D: Configuring adapter #0 = NVIDIA GeForce GTX 750 Ti RawInput: APIs detected RawInput: APIs detected RawInput: APIs detected DirectSound: Primary buffer: 48000 Hz, 16 bits, 2 channels Input: Adding keyboard #0: HID Keyboard Device (device id: \?\HID#VID_0853&PID_011D#7&a481ba6&0&0000#{884b96c3-56ef-11d1-bc8c-00a0c91405dd}) Input: Adding keyboard #1: HID Keyboard Device (device id: \?\HID#VID_046D&PID_C246&MI_01&Col01#8&5bfb1fb&0&0000#{884b96c3-56ef-11d1-bc8c-00a0c91405dd}) Direct3D: Using dynamic textures Direct3D: YUV format = RGB Direct3D: Max texture size = 16384x16384 Direct3D: Device created at 1495x1121 Direct3D: Initialize HLSL Direct3D: First store options Direct3D: HLSL initialized [1;36m[MAME][0m> Region ':maincpu' created unzip: opened archive file roms\tmnt.zip unzip: found roms\tmnt.zip ECD unzip: roms\tmnt.zip has no ZIP64 ECD locator unzip: read roms\tmnt.zip central directory unzip: closing archive file roms\tmnt.zip and sending to cache unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache Region ':audiocpu' created unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache Region ':k052109' created unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache Region ':k051960' created unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache Region ':proms' created unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache Region ':k007232' created unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache Region ':upd' created unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache Region ':title' created unzip: found roms\tmnt.zip in cache unzip: opened archive file roms\tmnt.zip unzip: closing archive file roms\tmnt.zip and sending to cache Starting Teenage Mutant Ninja Turtles (World 4 Players, version X) ':' Optional device ':gfxdecode' not found Optional device ':k054000' not found Optional device ':k053936' not found Optional device ':k053251' not found Optional device ':k053245' not found Optional device ':k054539' not found Optional device ':k053260' not found Optional shared pointer ':tmnt2_1c0800' not found Optional shared pointer ':sunset_104000' not found Optional shared pointer ':tmnt2_rom' not found Optional shared pointer ':spriteram' not found (missing dependencies; rescheduling) Starting M68000 ':maincpu' Starting Z80 ':audiocpu' Starting Watchdog Timer ':watchdog' Starting Video Screen ':screen' (missing dependencies; rescheduling) Starting palette ':palette' Optional memory region ':palette:finder_dummy_tag' not found Starting K052109 Tilemap Generator ':k052109' Optional device ':k052109:finder_dummy_tag' not found Starting K051960 Sprite Generator ':k051960' (missing dependencies; rescheduling) Starting Speaker ':mono' (missing dependencies; rescheduling) Starting Generic 8-bit latch ':soundlatch' Starting Yamaha YM2151 OPM ':ymsnd' Starting K007232 PCM Controller ':k007232' Starting NEC uPD7759 ':upd' Starting Samples ':samples' Starting Teenage Mutant Ninja Turtles (World 4 Players, version X) ':' Optional device ':gfxdecode' not found Optional device ':k054000' not found Optional device ':k053936' not found Optional device ':k053251' not found Optional device ':k053245' not found Optional device ':k054539' not found Optional device ':k053260' not found Optional shared pointer ':tmnt2_1c0800' not found Optional shared pointer ':sunset_104000' not found Optional shared pointer ':tmnt2_rom' not found Optional shared pointer ':spriteram' not found (missing dependencies; rescheduling) Starting Video Screen ':screen' Starting K051960 Sprite Generator ':k051960' Starting Speaker ':mono' Starting Teenage Mutant Ninja Turtles (World 4 Players, version X) ':'
No.14012 Fujix Administrator Jul 23, 2017, 11:32	No repro on my laptop.
No.14017 Tafoid Administrator Jul 25, 2017, 16:25	I still can't shake this being an issue with either video card/driver and/or monitor. Maybe it is a Windows 10 issue? Hard to say.
