Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
06823 DIP/Input Minor Always Jan 3, 2018, 17:53 Feb 22, 2018, 14:57
Tester StHiryu View Status Public Platform MAME (Unofficial Binary)
Assigned To Resolution Open OS Windows Vista/7/8 (64-bit)
Status [?] Confirmed Driver
Version 0.193 Fixed in Version Build 64-bit
Fixed in Git Commit Github Pull Request #
Summary 06823: polepos ( example): Analog devices values are not saved when using a digital input.
Description Not sure it's a bug but it's interesting: Playing several racing games whose use analog controls for steering and increasing/decreasing speed, I've noticed when you load a state saved, it's likely the analog input is not saved.
Steps To Reproduce Example using polepos rom (but it happens in another games like outrun, hangon, shangon or toutrun):

1-Play one race lap (after qualification lap) and reach maximun speed of 313KM when completing first lap.
2-Pause the game with P, and save state with Mays+F7 using the key assigned to the acceleration pedal holding it all the time, continue playing.
3-Load the state with the key and keep pressing it. You'll notice the car speed is under 313KM (About 298KM).
Additional Information This doesn't occur with digital controls: If you do the same procedure with the outrun game at megadrive or master system roms, the speed doesn't vary when you load the state.

Provided image with analog configuration and youtube video:
1-Changed P1 Pedal 1 Analog Inc to the keyboard X key.
2-Saved state in min 0:03 with X key, when Time is 47 and speed is 313km.
3-Load state at min 0:10 with X key holding it all the time, Time is 47 but speed decreases to 307km, it's like the key is temporarily off
Github Commit
Flags
Regression Version
Affected Sets / Systems polepos (example)
Attached Files

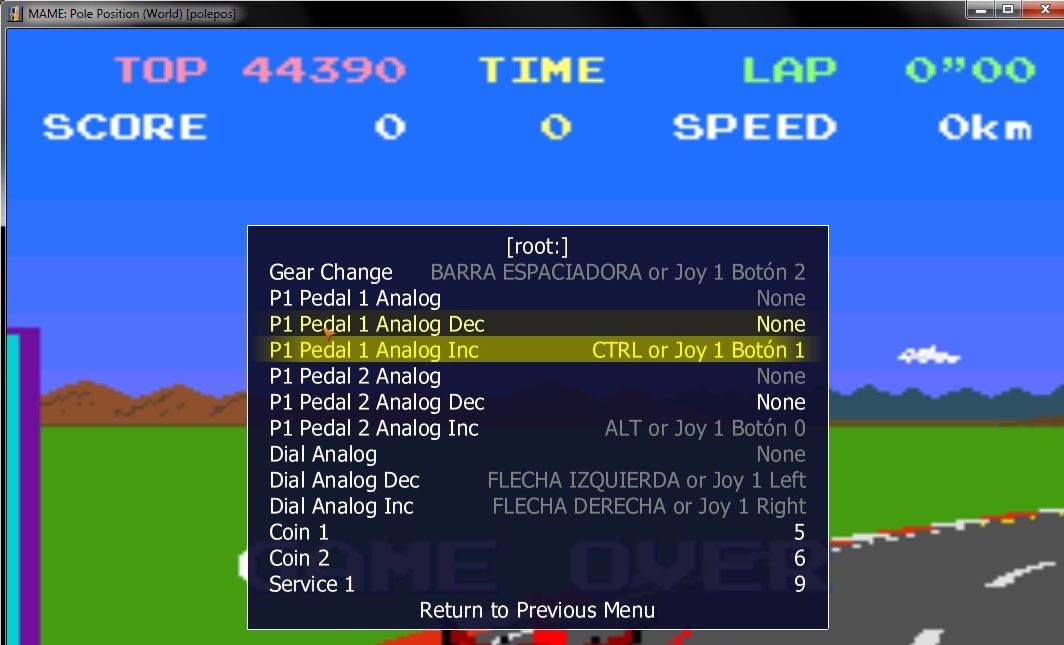

jpg file icon poleposKeyConf.jpg (134,983 bytes) Jan 5, 2018, 19:32 Uploaded by StHiryu
Analog Key Configuration
StHiryu
Relationships
There are no relationship linked to this issue.
Notes
7
User avatar
No.14622
Tafoid
Administrator
Jan 5, 2018, 18:37
I don't really see it adjusting the speed at all here in my testing of using a mouse and keyboard (I don't have actual steering wheel/pedals) so I'm not certain there may be some input lag somewhere.
User avatar
No.14624
StHiryu
Tester
Jan 5, 2018, 19:42
edited on: Jan 6, 2018, 01:39
Updated the report with a video where you can see it clearly, and a image with the analog configuration (Finally for the video I updated the pedal 1 analog inc to the "x" key, since I can`t save a state with the Ctrl key).
User avatar
No.14633
B2K24
Senior Tester
Jan 8, 2018, 05:12
Does this happen with the official binary using your current exact hardware?
User avatar
No.14634
StHiryu
Tester
Jan 8, 2018, 17:07
Yes, I've just tried with the official binary. The same problem.
User avatar
No.14668
B2K24
Senior Tester
Jan 15, 2018, 08:27
An interesting observation here but I don't foresee a redesign or change of the current SS system to address this particular issue.
User avatar
No.14669
hap
Developer
Jan 15, 2018, 21:12
It's a known problem, I've observed it in Outrun and Ridge Racer before.
It also affects PORT_TOGGLE, for example the gear shifter in outrun or the magnet sensors in chess computers.
User avatar
No.14766
StHiryu
Tester
Feb 20, 2018, 23:58
edited on: Feb 22, 2018, 14:58
Update:
After getting a new analog joypad I made some tests with hang-on and outrun, and those are my conclusions:
-In first place I`ve mapped the accelerator pedal to the analog stick and a digital button.
-The issue is not load/save state related only, it happens after pausing the gameplay too.
-Accelerate with the analog stick to the max speed, hold it and push pause, wait one second and hit pause again, the speed is not decreased.
-However, if you do the same with the digital button after pausing, you'll always see the meter losing speed for a while.

It's likely the emulator expects a value from a range, and can't recognise the value from the digital input.
