07300: dragon32, dragon64, dragon64h, dragon200, dragon200e: PAL Dragon machines show NTSC color artifacting

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
07300	Color/Palette	Minor	Always	Apr 24, 2019, 19:44	Jun 2, 2019, 12:23

Tester	robcfg	View Status	Public	Platform	MAME (Official Binary)
Assigned To	robcfg	Resolution	Fixed	OS	MacOS X
Status [?]	Resolved			Driver	technos/ddragon.cpp
Version	0.209	Fixed in Version	0.210	Build	64-bit
		Fixed in Git Commit		Github Pull Request #

Summary	07300: dragon32, dragon64, dragon64h, dragon200, dragon200e: PAL Dragon machines show NTSC color artifacting
Description	PAL Dragons high res display mode (256x192 black & white) is rendered with NTSC artifacts, instead of b&w patterns, you get also blue and orange color. This does not happen on real machines or other emulators, like XRoar.
Steps To Reproduce	Type the following program: 10 PMODE4,1:SCREEN 1,1:PCLS1 20 FOR I=0 to 3071:POKE 3072+I,85:NEXT I 30 FOR I=3072 to 6143:POKE 3072+I,170:NEXT I 40 GOTO 40 Please note that if you don't have the dos cartridge loaded, you have to change the "POKE 3072," instances to "POKE 1536,". Also, see attached picture.
Additional Information
Github Commit

Flags
Regression Version
Affected Sets / Systems	dragon32, dragon64, dragon64h, dragon200, dragon200e

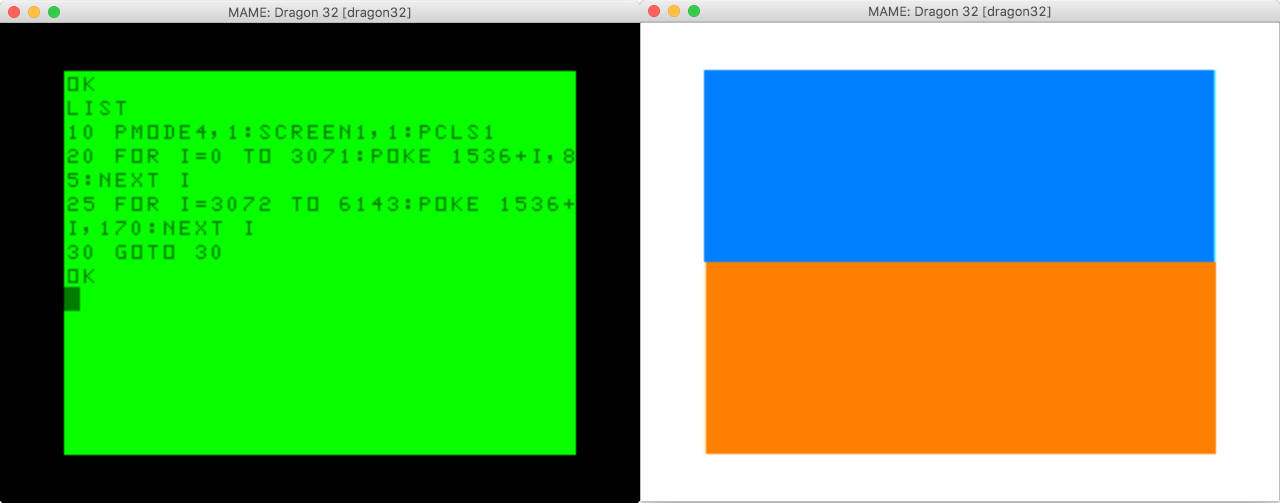

Attached Files	MameDragon32NTSCArtifacting.jpg (42,777 bytes) Apr 24, 2019, 19:44 Uploaded by robcfg Test program on emulated dragon32 showing ntsc artifating.

No.16388 robcfg Tester Apr 27, 2019, 13:34	It seems that the artifacter function in mc6847.h only does ntsc artifacting. As there are pal and ntsc dragons, a possible solution would be to make the artifacter detect the color system in use and apply the right one. The pal color artifacting needs to be implemented. More information on the subject can be found here: http://archive.worldofdragon.org/phpBB3/viewtopic.php?f=5&t=5462
No.16439 robcfg Tester May 6, 2019, 19:56	I've implemented the pal color blend and the changes are in this pull request https://github.com/mamedev/mame/pull/4980
No.16502 Robbbert Senior Tester Jun 2, 2019, 12:23 edited on: Jun 2, 2019, 12:25	Fixed by the OP according to the SB. robcfg: Quick question. I fixed this bug I reported (https://mametesters.org/view.php?id=7300) and the changes are on 0.210. Who can check that it's safe to close it as solved?
