07517: beastfp and other pacman hardware epos games: "Service Mode" switch for Epos games running on pacman hardware.

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
07517	DIP/Input	Minor	Always	Dec 7, 2019, 03:32	Dec 9, 2019, 20:09

Tester	chaneman	View Status	Public	Platform
Assigned To		Resolution	No change required	OS
Status [?]	Closed			Driver	pacman/jrpacman.cpp
Version	0.216	Fixed in Version		Build
		Fixed in Git Commit		Github Pull Request #

Summary	07517: beastfp and other pacman hardware epos games: "Service Mode" switch for Epos games running on pacman hardware.
Description	Service Mode switch should be added for "Diagnostics" screen function for the Epos games running in the pacman driver. Should work for most if not all of the Epos games: acitya, beastfp, bwcasino, eeekkp, sprglobp, theglobp, theglobme
Steps To Reproduce
Additional Information
Github Commit

Flags
Regression Version
Affected Sets / Systems	beastfp and other pacman hardware epos games

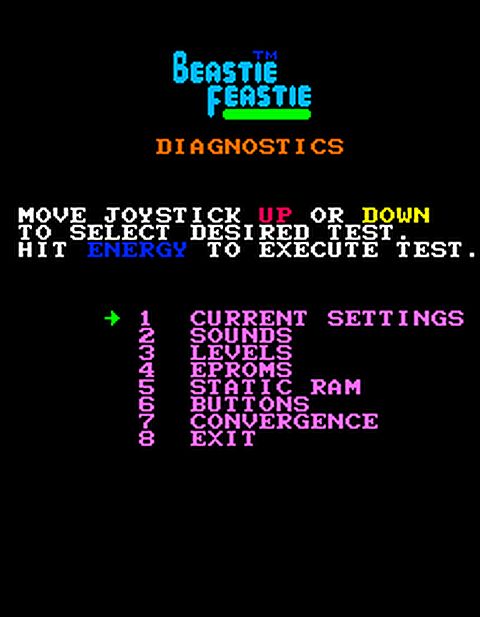

Attached Files	beastfp.jpg (34,344 bytes) Dec 7, 2019, 03:32 Uploaded by chaneman

No.17254 Tafoid Administrator Dec 8, 2019, 12:23	In doing some research and reading an original "Beastie Feastie" PCB Manual, it states: In order to aid the operator in quickly locating and correcting problems in the "BEASTIE FEASTIE" game board, several comprehensive diagnostic routines were provided in "BEASTIE FEASTIE" software. Wiring a diagnostic button inside the arcade cabinet will allow the operator to access the diagnostics mode. Upon entering diagnostics by depressing the diagnostics button, a menu of the various options will be displayed. The following options may be slected and executred by Up, Down, and the Energy button So, DIP switches are used to represent actual physical OFF/ON switches and not inputs akin to simple "press to activate" inputs which this one is. As it stands in the EPOS driver, they are mapped to a no toggle service button because that best describes its function. The Beastie Feastie Pac-Man hardware version also has a diagnostic mode which is triggered when you have chosen "Upright" mode and uses the Player 2 Energy to do this (which would not be a normally available input to an upright Pac-Man cabinet. There is no way to represent this as a DIP Switch because it simply isn't one. As far as I can tell, the diagnostic modes work as expected with current inputs.

No.17254

Tafoid

Administrator

Dec 8, 2019, 12:23

In doing some research and reading an original "Beastie Feastie" PCB Manual, it states:

In order to aid the operator in quickly locating and correcting problems in the "BEASTIE FEASTIE" game board, several comprehensive diagnostic routines were provided in "BEASTIE FEASTIE" software. Wiring a diagnostic button inside the arcade cabinet will allow the operator to access the diagnostics mode. Upon entering diagnostics by depressing the diagnostics button, a menu of the various options will be displayed. The following options may be slected and executred by Up, Down, and the Energy button

So, DIP switches are used to represent actual physical OFF/ON switches and not inputs akin to simple "press to activate" inputs which this one is. As it stands in the EPOS driver, they are mapped to a no toggle service button because that best describes its function. The Beastie Feastie Pac-Man hardware version also has a diagnostic mode which is triggered when you have chosen "Upright" mode and uses the Player 2 Energy to do this (which would not be a normally available input to an upright Pac-Man cabinet. There is no way to represent this as a DIP Switch because it simply isn't one.

As far as I can tell, the diagnostic modes work as expected with current inputs.
