Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
07561 Graphics Minor Always Feb 3, 2020, 16:56 May 19, 2021, 17:02
Tester sasuke View Status Public Platform MAME (Official Binary)
Assigned To Resolution Open OS Windows 10 (64-bit)
Status [?] Confirmed Driver
Version 0.218 Fixed in Version Build 64-bit
Fixed in Git Commit Github Pull Request #
Summary 07561: skyfox, exerizer, exerizreb: Shorter vertical resolution than PCB
Description The PCB screen area is larger than MAME.
The top margin is 2-6(?) pixels and the bottom margin is 10 pixels or more.


PCB VIdeo:




PCB Photos:
https://twitter.com/KDO9999/status/581777122982694912/photo/1
https://twitter.com/ZENOFof/status/705002813990920192/photo/1
https://twitter.com/mukasiya_game/status/1074659459278884866/photo/1
https://twitter.com/crane2346/status/562048175221915648/photo/1
https://twitter.com/KDO9999/status/393928590602928128/photo/1
https://twitter.com/KDO9999/status/411463870918557696/photo/1
https://twitter.com/danjyo360/status/1231086292382863360
https://twitter.com/nyarise/status/1243342177716957184
Steps To Reproduce
Additional Information
Github Commit
Flags Verified with Original
Regression Version
Affected Sets / Systems skyfox, exerizer, exerizreb
Attached Files
png file icon exerizer.png (682,235 bytes) Feb 3, 2020, 16:56 Uploaded by sasuke
sasuke
png file icon exerizer2.png (665,274 bytes) May 19, 2021, 17:02 Uploaded by sasuke

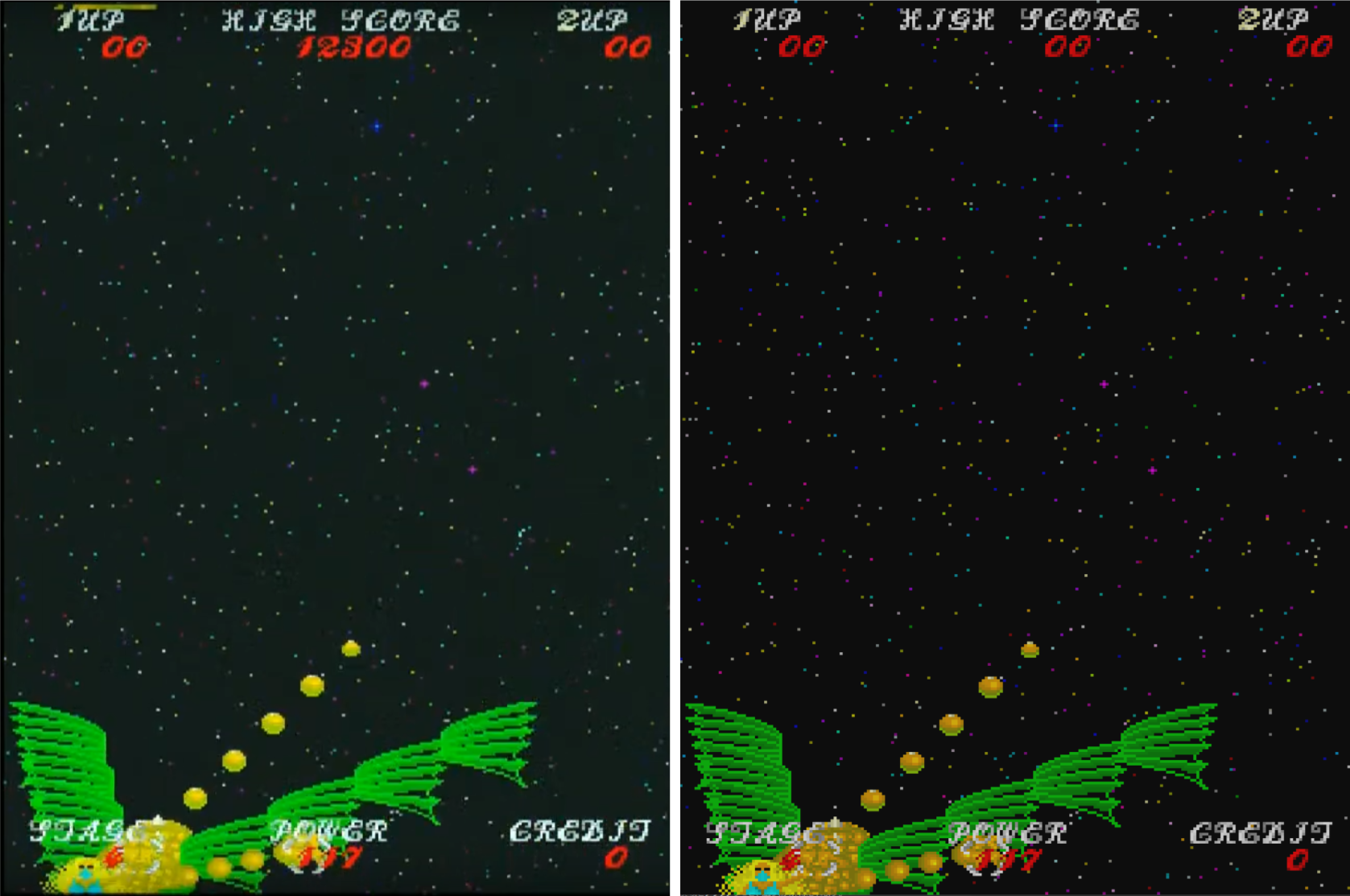

Comparison between PCB capture, and MAME with extension top 2px and bottom 10px
sasuke
Relationships
There are no relationship linked to this issue.
Notes
3
User avatar
No.17395
Kale
Developer
Feb 8, 2020, 17:33
If I'm gonna guess I'd say 2 lines from "top" and 6 from "bottom", rotate in X axis being a tate screen.
2 + 6 = 8 because gfx works in 8 pixel chunks.

NB: A few pics also sports a border color that isn't hooked by a quick glance. Looks blue-ish in pics, may also be a side effect from the background rendering and change dynamically by unknown reasons even if a video is provided. Also mathematically doesn't make sense (blue pens from the 0x*c family?)
User avatar
No.17609
sasuke
Tester
May 4, 2020, 05:31
edited on: May 4, 2020, 19:18
https://twitter.com/nyarise/status/1243342177716957184
In this picture, there is also an about 8-pixel top margin, so the top and bottom margins may both be 8 pixels.
User avatar
No.18863
sasuke
Tester
May 19, 2021, 16:59
edited on: May 20, 2021, 02:45
I verified this with various output images and videos, including clear captures.
It seems top is at least 3pixel (maybe 4pixel?), and bottom is 10pixel.
At the bottom it looks end of pixels, but the topmost pixel is half hidden, so it looks as if there are still pixels.
Sprites will show in top pixel the part of the sprite that protrudes from the bottom.
Background (stars) at top pixel is normal.
