Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
07587 Graphics Minor Always Mar 7, 2020, 18:13 May 28, 2020, 14:56
Tester hap View Status Public Platform MAME (Official Binary)
Assigned To Resolution Open OS Windows 10 (64-bit)
Status [?] Confirmed Driver hh_sm510.cpp
Version 0.219 Fixed in Version Build 64-bit
Summary 07587: Artwork: multi-screen layer blending problem with BGFX
Description Artwork: layer blending problem with BGFX.

This is a bug specifically witnessed with hydef's Game&Watch artwork, and only for the dual-screen games. It could be related to https://mametesters.org/view.php?id=7586 , however it does not only apply to D3D9, but all BGFX backends.
Steps To Reproduce - install hydef's G&W artwork (his google drive: https://drive.google.com/drive/folders/1WLKcvynl0ky2mRL1UacA9yaiMTnNs4x5 )
- mame64.exe gnw_zelda -video bgfx

or any dual-screen G&W

Look carefully at the 1st screen (left screen for horizontal, upper screen for vertical).
hydef applied a layer effect to simulate LCD screen shadow. It is missing on the 1st screen.
Additional Information MooglyGuy was already informed of this bug a while ago, he verified it and suspected it is something with screen chains.
Flags
Regression Version
Affected Sets / Systems
Attached Files

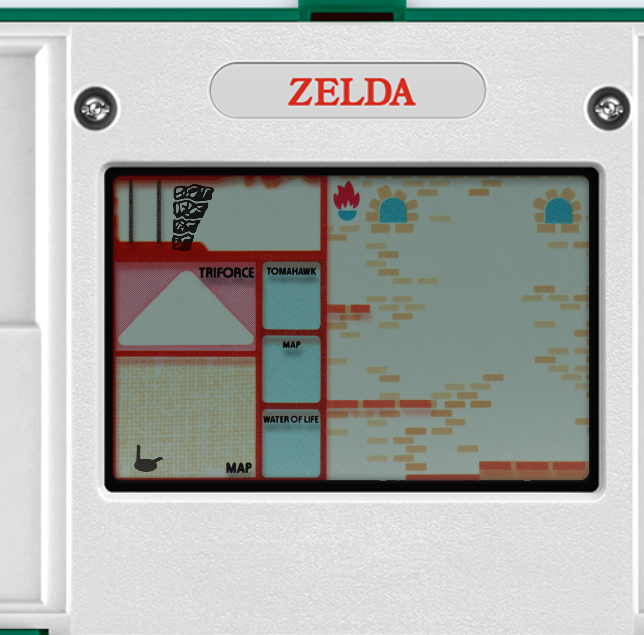

png file icon bgfx.png (576,904 bytes) Mar 8, 2020, 15:41 Uploaded by Fujix
Screen capture on bgfx
Fujix
Relationships
related to 07586Confirmed Artwork: screen combined with multiply-blend does not work on BGFX D3D9
Notes
1
User avatar
No.17688
hap
Developer
May 28, 2020, 14:56
Probably related to either this bug, or 07586:

gives a black screen:
mame64.exe nummunch -video bgfx -bgfx_backend d3d9

in 'cocktail' view, the bottom screen is visible however:
mame64.exe nummunch -video bgfx -bgfx_backend d3d9 -view cock
