Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
07982 DIP/Input Trivial Always May 22, 2021, 07:32 May 23, 2021, 10:48
Tester jkburks View Status Public Platform MAME (Official Binary)
Assigned To jkburks Resolution Fixed OS Windows 10 (64-bit)
Status [?] Resolved Driver
Version 0.231 Fixed in Version 0.232 Build 64-bit
Fixed in Git Commit 97b65aa Github Pull Request #
Summary 07982: itaten: Incorrect default difficulty setting
Description The current default difficulty DIP for Itazura Tenshi is incorrect according to the manual.

There are photos of the board, manual, & instruction card on this auction listing:

If you consult the DIP table:
難易度 (Difficulty Level)
0 1 2 3
the underscored setting is 1, not 0

※ 工場出荷時は_印に設定されています。
(* When shipped from the factory, it is set to the _ mark.)
This is also confirmed by the illustration of the PCB DIP switches.

It would be more accurate to change the MAME DIP settings text to:
Easy Normal Harder Hardest
and set the default to Normal
Steps To Reproduce Watch the attract mode on the current easy difficulty setting.
The “special stage” heart never appears.

Increase the difficulty DIP then reset the machine.
The “special stage” heart appears in the attract mode.
Additional Information Nichibutsu designed this game to play on the Normal setting. The harder and hardest settings increase the number of enemies, the number of projectiles on screen, and maybe allow the high-level enemies to spawn earlier.

To create an easy setting they simply removed whole aspects of the game. It is effectively a game mode for toddlers. The “Special Stage” mentioned on the instruction card does not occur on easy, and several of the high level enemies (like the green wizard) never spawn at all.

If you consult the sales flyer on Flyer Fever, and the instruction card on the above site, you will see that the spinning heart is a central theme in the game. But you will never see it in MAME unless you change the difficulty.

The purpose of the heart is to give the player an opportunity to auto-complete the constellation in the current sector (by shooting the heart). You also have the option of chasing the heart to another sector. Touching the heart stops it from moving so that you can collect a bow power-up before it exits the screen. Shooting the heart makes it explode.

Also, the button acts as a "wing-flap" to speed up the player, only changing to "shoot" when the Bow power-up is obtained. You are supposed to rapid tap the button at all times, otherwise you fly around in slow motion… like so many of the Youtube videos of this game running in MAME.
Github Commit
Regression Version
Affected Sets / Systems itaten
Attached Files

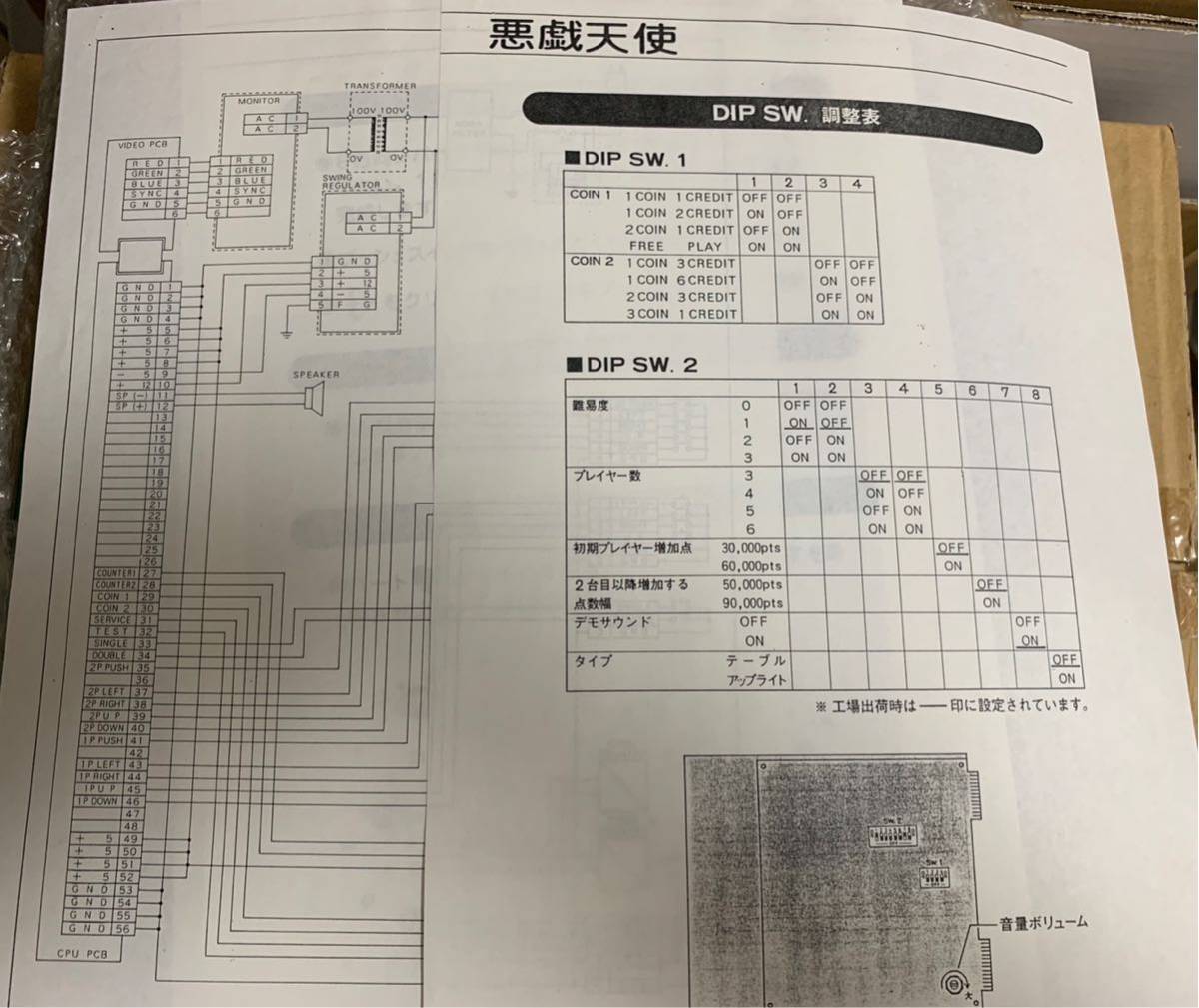

jpg file icon itazura_tenshi_dip_table.jpg (126,117 bytes) May 22, 2021, 07:32 Uploaded by jkburks
Itazura Tenshi DIP Settings

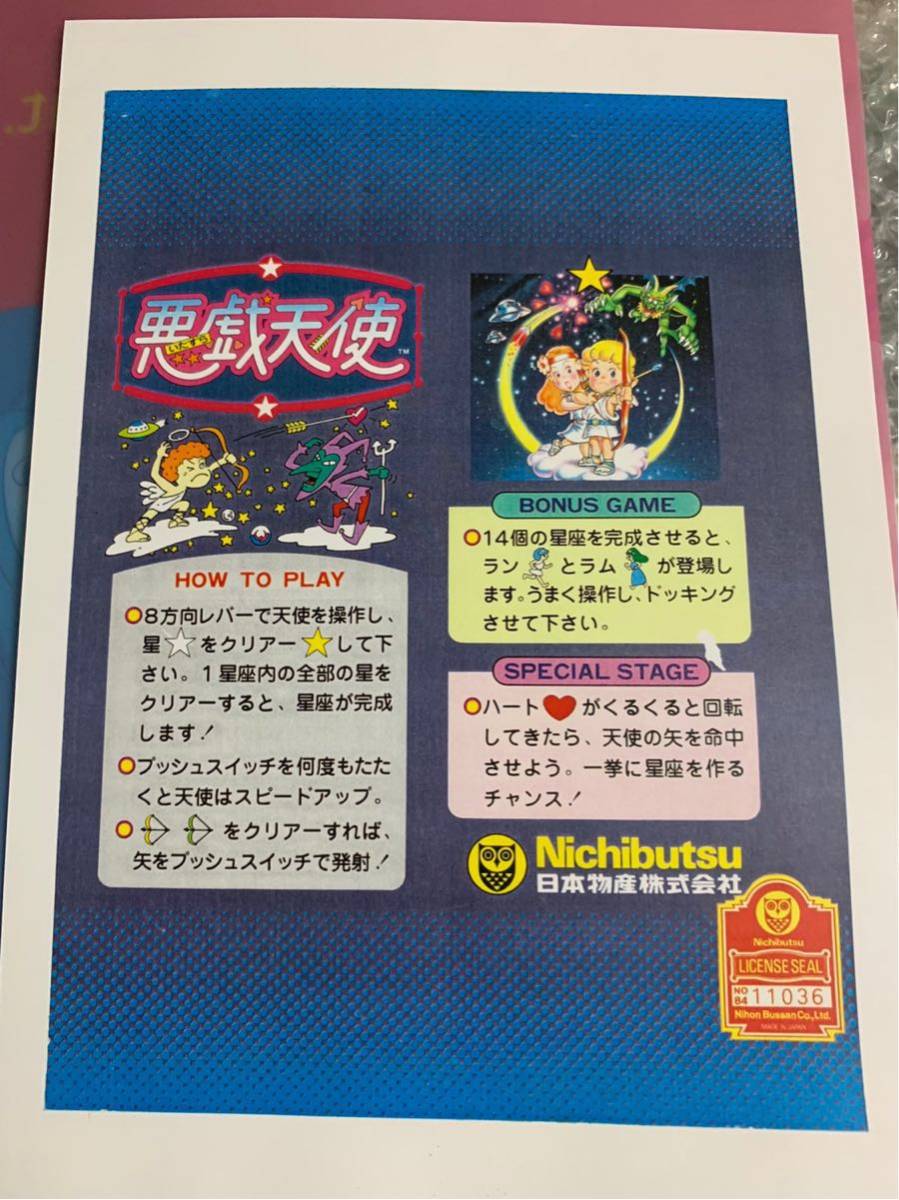

jpg file icon itazura_tenshi_instruction_card.jpg (147,012 bytes) May 22, 2021, 07:32 Uploaded by jkburks
Itazura Tenshi Instruction Card
There are no relationship linked to this issue.
User avatar
May 22, 2021, 21:57
Ok, default difficulty will be changed. Thanks for the report.

I don't understand why you say difficulty for 0,1,2,3 Easy,Normal,Harder,Hardest would be more accurate than Easy,Medium,Hard,Hardest
User avatar
May 23, 2021, 07:02
My only concern is that the default difficulty in MAME match the factory setting so that first time players see the game as it was intended by the designers (without missing features).

It is my understanding that MAME drivers use factory settings when they are documented, but that many games were dumped without manuals, and not all manuals list the factory settings anyway. And I notice that MAME sometimes uses the exact wording from the manual and sometimes uses generic terms. I have never seen MAME use only numbers for difficulty though.

I was suggesting that the wording in the MAME DIP menu for this particular game be altered to use the word “Normal” because it is the only way MAME has to indicate factory setting / manufacturer intent. The manuals usually do this with an asterisk or underscore. I really like the DIP visualization that some of the drivers have now, as this is very helpful for board owners. Maybe in the future this can include some indication for the factory setting.
User avatar
May 23, 2021, 10:48
I don't think MAME intended any special meaning behind "Normal". And if it did, it wouldn't make sense that knowing which is default only applies to difficulty setting and not the other settings. For example common settings like number of lives or score extend, there wouldn't be a way to put in "Normal" there.

There is a way to set the switch to default though: press Enter.
