Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
08084 Misc. Major Always Sep 16, 2021, 07:49 Feb 1, 2023, 19:48
Tester john_iv View Status Public Platform MAME (Official Binary)
Assigned To Ryan Holtz Resolution Fixed OS
Status [?] Resolved Driver
Version 0.235 Fixed in Version 0.252 Build 64-bit
Fixed in Git Commit 5671484 Github Pull Request # #10858
Summary 08084: All: New BGFX files interacting poorly with art/overlays in warpwarp.cpp games
Description Seeing some weird art effects, certain areas missing, discolored etc. when using -video bgfx and Fighters chain.
Issue is not present with -video d3d with or without hlsl.

Official .235 and daily 0.235 (mame0235-254-g0ce24d16f1c)
Steps To Reproduce Need to have mr. do's latest art in the .\artwork directory (so that it uses the upright artwork view by default)

mame geebee -video bgfx -bgfx_screen_chains Fighters -norc

compare to mame geebee -video d3d -hlsl_enable
Additional Information
Github Commit
Regression Version
Affected Sets / Systems All
Attached Files

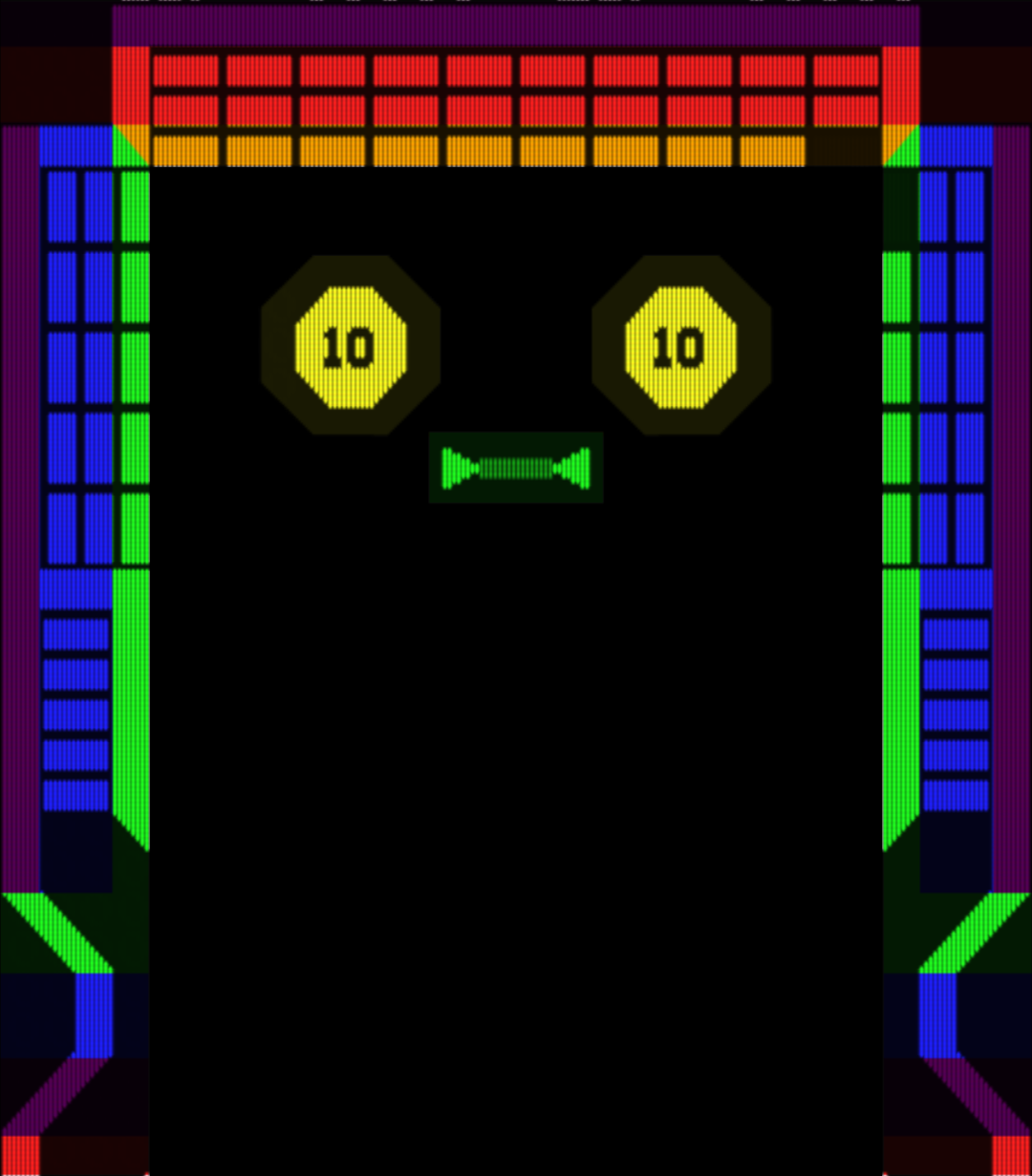

png file icon geebee.png (390,780 bytes) Sep 16, 2021, 07:49 Uploaded by john_iv
png file icon geebee_bgfx_fighters.png (672,833 bytes) Sep 26, 2021, 18:39 Uploaded by Tafoid
There are no relationship linked to this issue.
User avatar
Sep 16, 2021, 08:22
edited on: Sep 16, 2021, 08:23
Yeah bgfx will do that on some of the artwork and overlay. videopin for example.
User avatar
Sep 26, 2021, 18:38

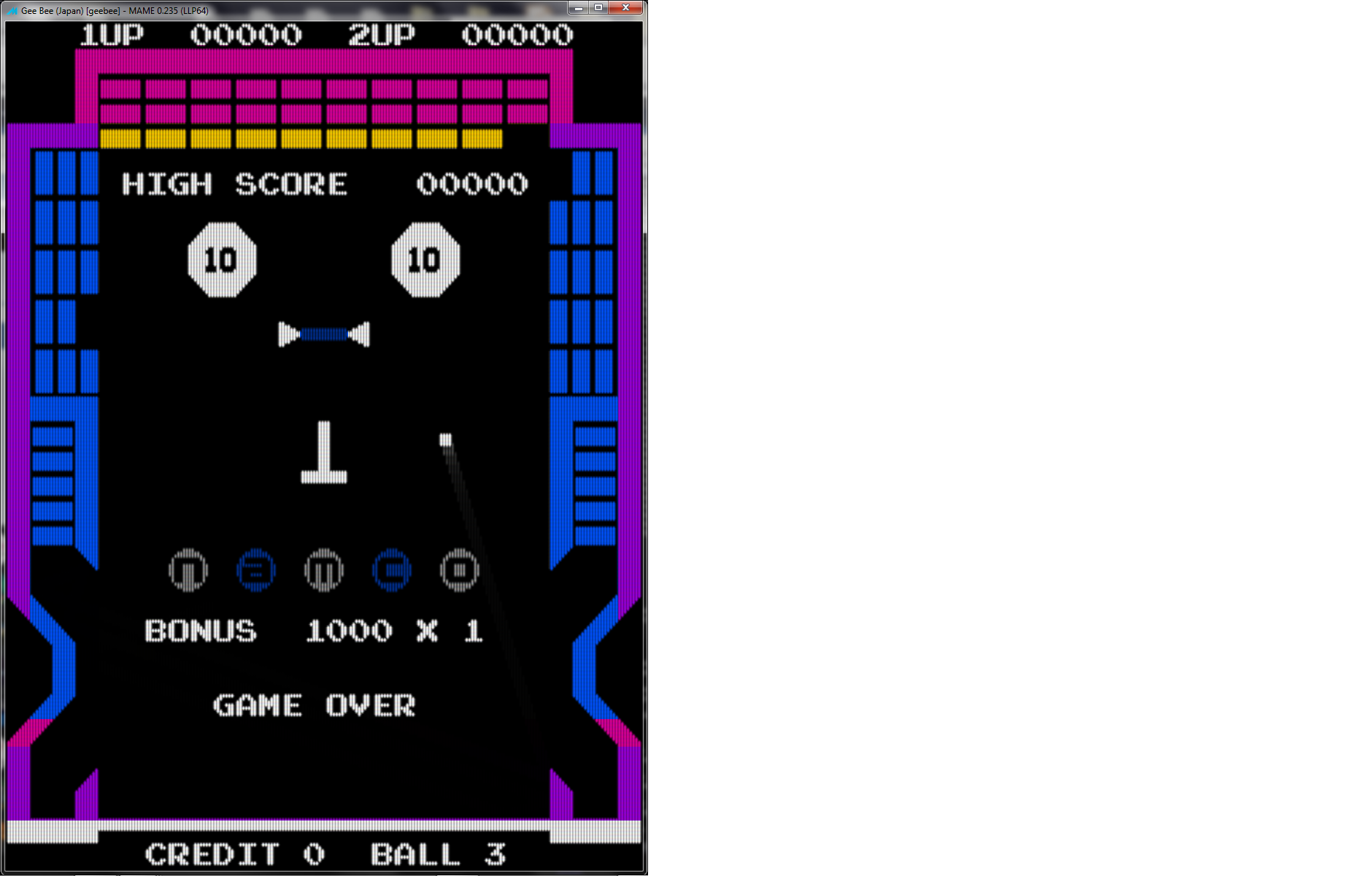

As I've been told, this chain was imported from RetroArch shader packs. Anyway, I don't normally use shaders but using your command doesn't show the malfunction you are having on my end. Uploaded a print screen of the window of the output using your command line.

Perhaps you have others non-default setting added. Does it happen with a clean install? Not sure if we can help as I cannot duplicate.
User avatar
Oct 9, 2021, 19:39
Been waiting for nearly 2 weeks for a response and since I don't see an issue using the command shown (using 0.236), I'm closing as unable to reproduce.
User avatar
Senior Tester
Oct 15, 2021, 03:32
Hi Tafoid, I didn't see this get closed as I didn't have my notifications set up properly apparently.

The missing bit of info is that it looks like this happens with Mr. Do's most recent art in the artwork folder and using that upright artwork view, the internal view you posted is fine.

The art view however is ok with -video d3d. So not sure who needs to conform, the artwork to the shader or the shader to the artwork.
User avatar
Oct 15, 2021, 23:56
reopening for possible discussion
