Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
08684 DIP/Input Minor Always Jun 24, 2023, 22:54 Jun 28, 2023, 16:11
Tester Balthier View Status Public Platform MAME (Official Binary)
Assigned To Resolution Open OS Windows 10/11 (64-bit)
Status [?] Confirmed Driver
Version 0.255 Fixed in Version Build 64-bit
Fixed in Git Commit Github Pull Request #
Summary 08684: sgunner2 and clones: games use pot based mounted guns, but are mapped to lightgun inputs
Description These games are hooked up to lightgun inputs instead of ad stick. The games use mounted prop guns with potentiometers.
Steps To Reproduce 1. Run the affected games.
2. TAB to the Input Assignments for the system and view them.
Additional Information I've looked at footage of the machines, parts on ebay and over at arcadecontrols forum, and the manual. The service menu also shows "A/D CONVERTER" and the CH values change when you move the guns. The game came in a conversion kit for Operation Thunderbolt, which is hooked up in mame as ad stick, and uses the same gun parts. The game also has dedicated guns looking like a space zapper.

The Golly! Ghost! games guns look the same except they don't have the left side button for bombing, but use the same recoiling barrel as the Steel Gunner games. I think maybe those should be changed to ad stick as well since they are currently hooked up with lightgun inputs and have a similar set up in service mode.

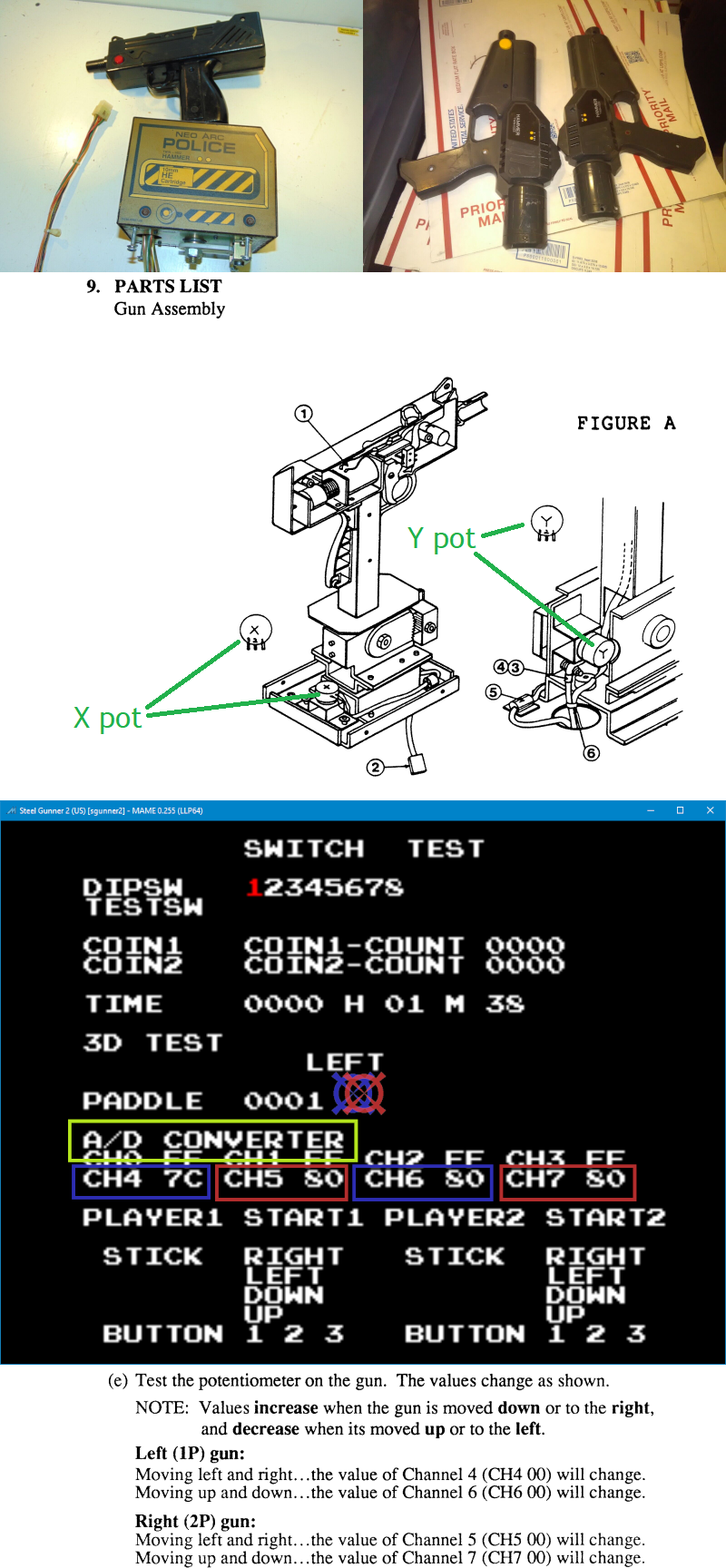

I attached images.
- Top left is the Operation Thunderbolt gun with the Steel Gunner 2 decals slapped on it already.
- Top right is the cover for the Steel Gunner 2 gun.
- 3rd image is from the manuals for Operation Thunderbolt and Steel Gunner 2.
  page 16:
  page 22:
- 4th image is the service mode from the game.
- 5th image is the excerpt from the manual for that screen on page 15 for Steel Gunner 2.
Github Commit
Regression Version
Affected Sets / Systems sgunner2 and clones
Attached Files
png file icon pewpew.png (651,995 bytes) Jun 24, 2023, 22:54 Uploaded by Balthier
There are no relationship linked to this issue.
User avatar
Jun 28, 2023, 09:02
Yeah, we use IPT_LIGHTGUN for games that have that kind of controller. It's so the user can see the aim.
User avatar
Jun 28, 2023, 16:11
edited on: Jun 28, 2023, 16:13
I said that these games use the same guns but Operation Thunderbolt is AD_STICK in mame and Steel Gunner 2 is LIGHTGUN. Why would this be different if they are the same parts? The manuals both have the same diagram.

They also have a crosshair option in the UI so you can calibrate. Just turn off the crosshairs when done in Steel Gunner 2 so it is not in the way of the game's cursor.
