08797: All 1943 games and clones: Cabinet DIP labeled wrong in manual.

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
08797	DIP/Input	Typo	Always	Nov 29, 2023, 17:35	Dec 2, 2023, 01:05

Tester	chaneman	View Status	Public	Platform	MAME (Official Binary)
Assigned To	cuavas	Resolution	Fixed	OS	Windows 10/11 (64-bit)
Status [?]	Resolved			Driver	capcom/1943.cpp
Version	0.261	Fixed in Version	0.262	Build	64-bit
		Fixed in Git Commit	ab892a4	Github Pull Request #

Summary	08797: All 1943 games and clones: Cabinet DIP labeled wrong in manual.
Description	Although DIP 3 is labeled as Upright/Table Change in the manual for this game, it should be renamed to "Screen Flip" in MAME as that is what it does. A 1943 two player game is a cooperative game where both players are always on the screen at the same time, there is no flipping of the screen to alternate player turns.
Steps To Reproduce	Load and run any version of 1943, set the Upright/Cocktail setting to Cocktail and then reset the game. The screen will now always be upside down.
Additional Information
Github Commit

Flags
Regression Version
Affected Sets / Systems	All 1943 games and clones

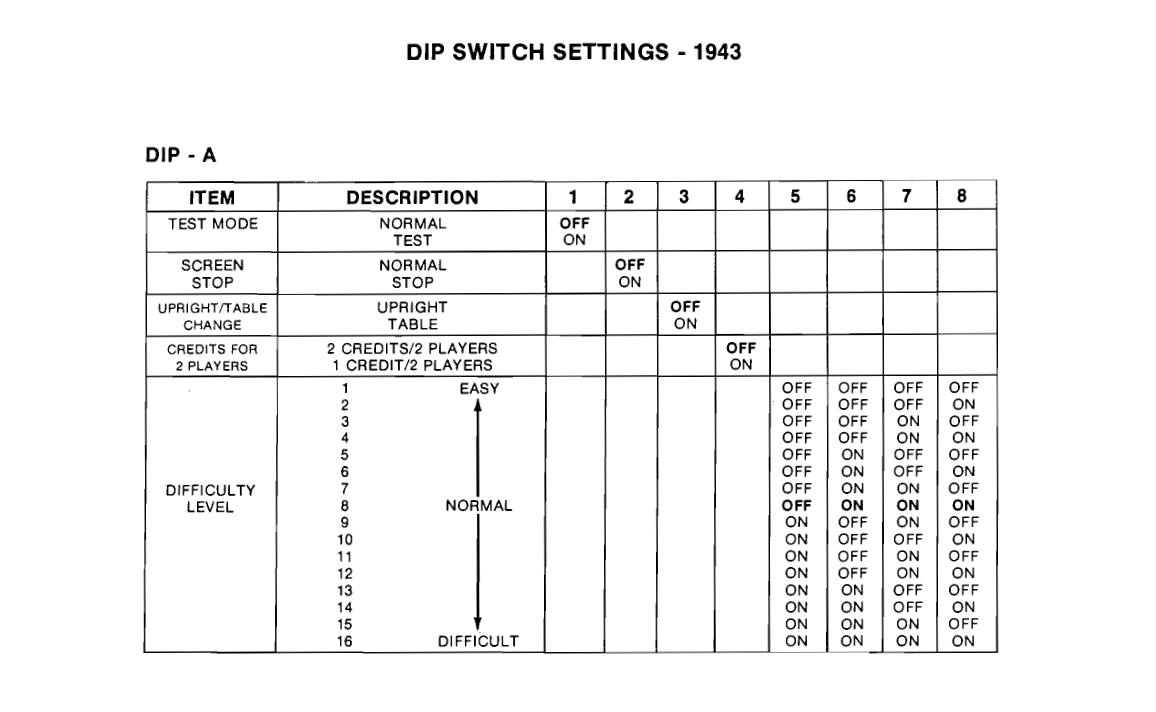

Attached Files	1943 DIPS.png (134,164 bytes) Nov 29, 2023, 17:35 Uploaded by chaneman

No.21870 Fujix Administrator Nov 30, 2023, 03:48	It's "Screen Flip" in the Japanese manual. https://otokaru.net/otocontents/dipsw/a-o/1943.html https://translate.weblio.jp/web/english?lp=JE&url=https%3A%2F%2Fotokaru.net%2Fotocontents%2Fdipsw%2Fa-o%2F1943.html&sentenceStyle=spoken
No.21874 cuavas Administrator Dec 2, 2023, 00:01	For what it’s worth, it’s possible that in original cabinets, the upright and cocktail cabinets had the monitors in opposite orientations. The cocktail cabinet would obviously have needed to have both sets of controls on one side.
