01607: tetrisp, gametngk, gratia, p47aces: ms32.c graphic glitches, including tetrisp

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
01607	Graphics	Trivial	Always	Mar 24, 2008, 10:40	May 22, 2011, 19:20

Tester	haynor666	View Status	Public	Platform	MAME (Self-compiled)
Assigned To	Haze	Resolution	Fixed	OS
Status [?]	Resolved			Driver	jaleco/ms32.cpp
Version	0.124	Fixed in Version	0.135u1	Build	C2D
		Fixed in Git Commit		Github Pull Request #

Summary	01607: tetrisp, gametngk, gratia, p47aces: ms32.c graphic glitches, including tetrisp
Description	Brightness Related gametngk: incorrect fades on bomb effect p47aces: incorrect fade in intro. Shadow Related: tetrisp: There is strange white box when you start on the right. gametngk: bad shadows on all sprites. Layer Enable Related: gratia: some layers not disabled between levels hiding parts of the dialog boxes.
Steps To Reproduce	original note for tetrisp: Run the game in puzzle mode. Play some time and look on the right side (then normally is second player). Sometimes box is visible with tex. Probably should be black with color border.
Additional Information	when improvements are finished this video driver can be merged with the non m32 version, used by rockn etc.
Github Commit

Flags
Regression Version
Affected Sets / Systems	tetrisp, gametngk, gratia, p47aces

Attached Files	tetrisp.png (25,135 bytes) Mar 24, 2008, 10:40

No.00372 Haze Senior Tester Mar 24, 2008, 11:54	Well it's one of many ms32.c bugs that are currently being worked in. Once Charles gets things running better on real hardware fixing them will be easy. In this case it's related to the missing shadow effects. IIRC it's already marked as imperfect graphics, but I don't mind, I think such bugs should be here anyway, although this is part of a more general bug than something specific to ms32.c
No.00373 Haze Senior Tester Mar 24, 2008, 12:01	I've added some additional details about the general problems with m32.c, these aren't comprehensive but make it clear that the bug isn't really specific to tetrisp. I can't give an ETA on when this will be fixed, as it depends a lot on external factors too.

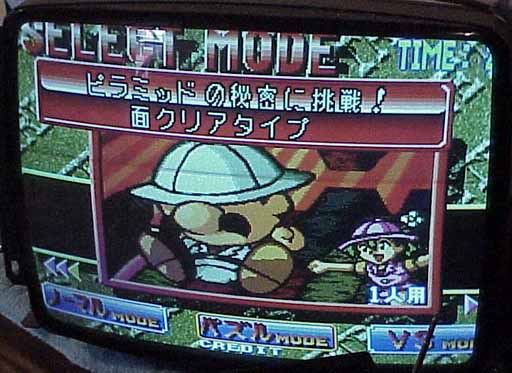

No.03916 Smitdogg Senior Tester Mar 8, 2009, 06:15	I added some pcb comparison shots. The photos aren't perfect and don't show the eh, blue glow effect well.
No.05137 Haze Senior Tester Nov 8, 2009, 11:21 edited on: Nov 8, 2009, 11:49	I've been doing some work on this for 135u1 I think the shadows work by placing a sprite with a lower priority than the tilemap. Of course, this all depends on priority RAM which isn't properly understood, and for now I've decided to use the same kludgse as the standalone Tetris 2 Plus hardware. I think it should actually be per pixel / per pen. Also I have a feeling the standalone board doesn't support the shadowing, there are subtle differences between the two versions which would suggest this. (basically in the standalone they fake shadows by greying the graphics instead of duplicating them, which suggests the hardware isn't capable of doing it)
No.05138 Haze Senior Tester Nov 8, 2009, 17:05 edited on: Nov 8, 2009, 17:22	I'm resolving this one and splitting it into other more specific bugs. The cases shown in the screenshots here have been fixed, so new reference material for the new bugs will be useful.
