Summary 01809: Scanline Effect distortion on Vertical Orentation
Description I've been using the scanline (scanlines.png) effect, but on games that use a vertical orientation (contra, xevious, digdug, ect) there is a visible line where the effect overlay does not line up properly. If the go into the Video Options and switch the aspect ratio from Standard (3:4) to the alternate setting, the problem goes away.
Steps To Reproduce use Mame.ini defaults

run with -effect scanlines
Additional Information
Github Commit
Flags
Regression Version
Affected Sets / Systems
Attached Files

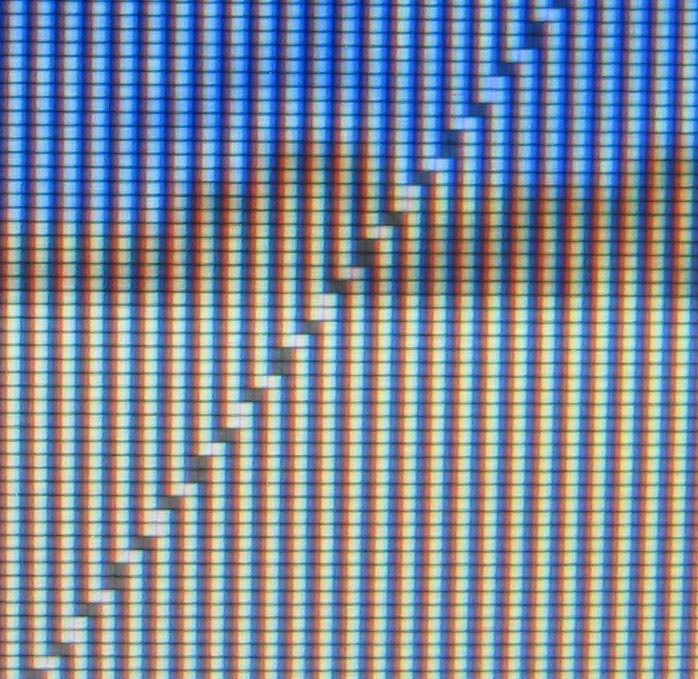

jpg file icon scanlines.jpg (117,452 bytes) May 15, 2008, 22:24
Relationships
There are no relationship linked to this issue.
Notes
6
User avatar
No.00983
Tafoid
Administrator
May 15, 2008, 22:45
From command line, using just the -effect scanlines and setname, I don't see anything like your screen shot shows. What game is that from? How much is it magified? Are you using -video ddraw or d3d? Are there other video related commands that might be interfering?
User avatar
No.00984
aaron
Developer
May 16, 2008, 00:04
Also run with -verbose as well, and post the output. I suspect you are running at a resolution larger than the maximum texture size.
User avatar
No.00986
Yonah
Tester
May 16, 2008, 03:40
That particular game is "Devastators" (devstors). I'm using D3D. As I understand it, the effects aren't availible unless D3D is used. I took the picture with my digital camera.

Video: Monitor 00010001 = "\\.\DISPLAY1" (primary)
Direct3D: Using Direct3D 9
Direct3D: Configuring adapter #0 = NVIDIA GeForce 7650 GS
Direct3D: Using dynamic textures
Direct3D: YUV format = RGB
Direct3D: Device created at 1440x900
User avatar
No.00990
Sune_S
Senior Tester
May 16, 2008, 17:23
edited on: May 16, 2008, 17:23
I can't reproduce this either.

Are you running at your monitor's native resolution?

Try manually setting its aspect ratio in mame.ini, default is auto.
User avatar
No.00994
Yonah
Tester
May 16, 2008, 20:34
1400x900 is the native resolution of my LCD monitor and the aspect ratio should be 16:10.

I have always left the setting in Mame.ini to Auto, and it seems to give the same results as using 16:10, so I would assume MAME is using the correct aspect. Here is what I tried running Digdug:

AUTO or 16:10 = Standard (3:4) glitch / Pixel Aspect (7:9) OK

16:9 or 3:4 = Standard (3:4) OK / Pixel Aspect (7:9) OK

What I find interesting is that the glitch disappears when the screen is rotated twice, so the screen is upside down. I checked some older versions just now. For me, this problem started with version 0.124. I just tried 0.123 using the same config I use now and the glitch does not appear.
User avatar
No.01041
Tafoid
Administrator
May 21, 2008, 17:28
edited on: May 21, 2008, 17:28
I'll move this to acknowledged until we can isolate exactly what the issue is or mismatched setting might be. Also, if anyone else can try to duplicate this issue - please post a note detailing what was attempted.
