02052: xmultipl: On the PCB you can (partly)see the bubbles/balls on the titlescreen during the flash

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
02052	Graphics	Minor	Always	Jul 27, 2008, 23:06	Feb 19, 2012, 20:08

Tester	Stefan Lindberg	View Status	Public	Platform	MAME (Official Binary)
Assigned To		Resolution	Open	OS	Windows XP/Vista 32-bit
Status [?]	Confirmed			Driver	irem/m72.cpp
Version	0.126u2	Fixed in Version		Build	I686
		Fixed in Git Commit		Github Pull Request #

Summary	02052: xmultipl: On the PCB you can (partly)see the bubbles/balls on the titlescreen during the flash

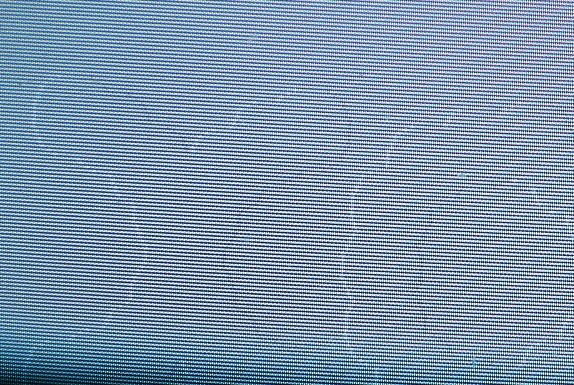

Description	On the PCB the titlescreen shows during the bright flash the relief of the rotating bubble/balls logo... it's a bit hard to explain but i think the picture of the monitor and movie (capturecard) will more understandable. The slowdown during the movie is not a PCB fault, it's just because i could not sync a stable picture.
Steps To Reproduce
Additional Information	In the attached AVI, you'll see the flash at about :12 in. This doesn't happen in MAME.
Github Commit

Flags	Verified with Original
Regression Version
Affected Sets / Systems	xmultipl

Attached Files	xm_title.jpg (152,486 bytes) Jul 27, 2008, 23:06
Attached Files	xmultiply_pcb_title.zip (4,777,418 bytes) Jul 27, 2008, 23:08

No.01834 Kold666 Developer Jul 28, 2008, 22:06	it seems the same problem with the m62 games where you can see the silhouette of the hair of kid niki on the black background! M72 schematics are available, maybe someone can see if there a similar colour circuit to m62 hardware?
No.08210 haynor666 Tester Feb 18, 2012, 14:21	Stefan, in on first level scrolling jerky just like in MAME?
No.08215 Stefan Lindberg Senior Tester Feb 19, 2012, 18:04	It is always scrolling jerky in MAME as it is 55hz :-)
No.08217 haynor666 Tester Feb 19, 2012, 20:08	That's not the case because I'm running this at 55Hz (custom resolution). The first planes is scrolling a bit jerky for me (it's clearly visible in attract mode on level where background is black. For example R-Type and Legend of Hero Tomma are ok - first bitplane scrolling is constant.
