02154: ckongg: Coinage settings are wrong.

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
02154	DIP/Input	Minor	Always	Aug 23, 2008, 11:03	Jan 10, 2010, 23:27

Tester	M.A.S.H.	View Status	Public	Platform
Assigned To		Resolution	Fixed	OS
Status [?]	Resolved			Driver	galaxian/galaxold.cpp
Version	0.127	Fixed in Version	0.136u1	Build	Normal
		Fixed in Git Commit		Github Pull Request #

Summary	02154: ckongg: Coinage settings are wrong.

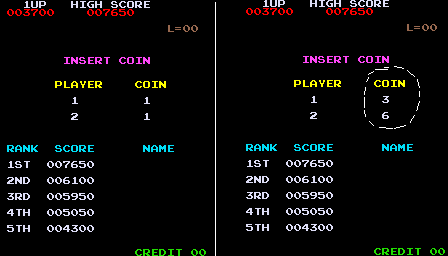

Description	The Coinage settings in the Dip Switches menu are wrong. For 1x Coin you get 2x Credits and if you set Coinage to 2x Coins you get 4x Credits. So the inputs must be changed from: PORT_DIPNAME( 0xc0, 0x00, DEF_STR( Coinage ) ) PORT_DIPSETTING( 0x40, DEF_STR( 2C_1C ) ) PORT_DIPSETTING( 0x00, DEF_STR( 1C_1C ) ) to PORT_DIPNAME( 0xc0, 0x00, DEF_STR( Coinage ) ) PORT_DIPSETTING( 0x40, DEF_STR( 2C_4C ) ) PORT_DIPSETTING( 0x00, DEF_STR( 1C_2C ) ) Also, if you set the 'Unused' dip to 'ON' in the Dip Switches menu, you get another game coinage. Then you must put in 3x Coins to start a game (see screenshots -> Normal and Unused-On ).
Steps To Reproduce
Additional Information
Github Commit

Flags	Verified with Code
Regression Version
Affected Sets / Systems	ckongg

Attached Files	ckongg.png (4,458 bytes) Aug 23, 2008, 11:03

No.02188 etabeta Developer Aug 23, 2008, 12:36	the problem is twofold: * on one hand, the coinage settings shown at screen don't correspond in any way to the game behaviour. this is probably due to the fact that ckong was not programmed to run on galaxian hw. it would be nice to have the behavior confirmed, but it's not a bug in my opinion; * on the other hand, current coinage settings are wrong and the 'unused' dip is not unused. for the second point I'll submit a patch soon.
No.02197 etabeta Developer Aug 24, 2008, 04:16 edited on: Aug 24, 2008, 15:08	to complete the description of the dips behavior, this is the effect produced by various combinations: * The coinage settings are spread between one of the current Coinage dips and the previously labeled "unused" dip: as reported by MASH, if "Unused" is ON it gives 3 Coins / 1 Credit and 5 Coins / 1 Credit; if it's OFF, it gives 1 Coin / 2 Credits and 1 Coin / 4 Credits * The second dipswitch previously labeled as Coinage doesn't actually affect the coinage setting, and its effect is unknown A patch to add these findings to ckongg has been submitted, so I'm going to close this report. EDITED to reflect more precse findings from Fujix.
No.05481 stephh Developer Jan 10, 2010, 23:26	The problem was that the Dip Switches were still wrong (even after the supposed fix). I've updated the galaxold.c driver according to the Z80 code, so now everything shall be correct in 0.136u1 .
