| ID | Category [?] | Severity [?] | Reproducibility | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 02768 | Documentation | Typo | N/A | Dec 24, 2008, 20:50 | Dec 30, 2008, 16:40 |
| Tester | WilalvesBR | View Status | Public | Platform | MAME (Official Binary) |
| Assigned To | aaron | Resolution | Fixed | OS | Windows XP/Vista 32-bit |
| Status [?] | Resolved | Driver | |||
| Version | 0.128u7 | Fixed in Version | 0.129 | Build | Normal |
| Fixed in Git Commit | Github Pull Request # | ||||
| Summary | 02768: mk3, mk3r20, mk3r10, mk3p40, umk3, umk3r10, umk3r11 : Roms incorrectly named as umk3 instead of mk3 + two versions of U2 SOUND ROM. | ||||
| Description |
Some roms are named as if they were all from umk3 game wich is incorrect. There are two versions of U2 SOUND ROM (L1.0 and L2.0). L1.0 U2 SOUND ROM is used on mk3, mk3r20, mk3r10 and mk3p40. L2.0 U2 SOUND ROM is used on umk3, umk3r10 and umk3r11. U3, U4 and U5 SOUND ROMS are the same from mk3 and should not be named as umk3 (they are all from original mk3 boards). Graphics roms U122, U123, U124, U125, U126, U127, U128, U129, U130, U131, U132 and U133 are also named as umk wich is incorrect, they are all from original mk3 boards and should be named as mk3. There are also two versions of the roms U118, U119, U120 and U121 (L1.0 on mk3 pcb and L2.0 on umk3 pcb) but they are already correctly named on MAME. Correct rom names to be used on MAME: (For mk3, mk3r20, mk3r10 and mk3p40): mk3-u2.bin mk3-u3.bin mk3-u4.bin mk3-u5.bin mk321u54.bin / mk320u54.bin / mk310u54.bin / mk3p40u54.bin mk321u63.bin / mk320u63.bin / mk310u63.bin / mk3p40u63.bin mk3-u133.bin mk3-u132.bin mk3-u131.bin mk3-u130.bin mk3-u129.bin mk3-u128.bin mk3-u127.bin mk3-u126.bin mk3-u125.bin mk3-u124.bin mk3-u123.bin mk3-u122.bin mk3-u121.bin mk3-u120.bin mk3-u119.bin mk3-u118.bin mk3-u117.bin mk3-u116.bin mk3-u115.bin mk3-u114.bin (For umk3, umk3r11, umk3r10 ): umk3-u2.bin mk3-u3.bin mk3-u4.bin mk3-u5.bin um312u54.bin / um311u54.bin / um310u54.bin um312u63.bin / um311u63.bin / um310u63.bin mk3-u133.bin mk3-u132.bin mk3-u131.bin mk3-u130.bin mk3-u129.bin mk3-u128.bin mk3-u127.bin mk3-u126.bin mk3-u125.bin mk3-u124.bin mk3-u123.bin mk3-u122.bin umk-u121.bin umk-u120.bin umk-u119.bin umk-u118.bin umk-u113.bin umk-u112.bin umk-u111.bin umk-u110.bin |
||||
| Steps To Reproduce | Check pictures from real PCBs (mk3 and umk3r11). | ||||
| Additional Information | |||||
| Github Commit | |||||
| Flags | Verified with Original | ||||
| Regression Version | |||||
| Affected Sets / Systems | mk3, mk3r20, mk3r10, mk3p40, umk3, umk3r10, umk3r11 | ||||
|
Attached Files
|

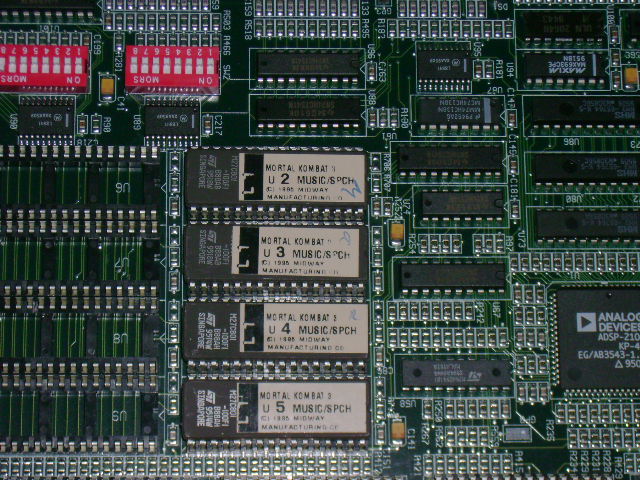

 MK3 L1.0 U2 SOUND ROM.JPG (133,751 bytes) Dec 24, 2008, 20:50 | ||||

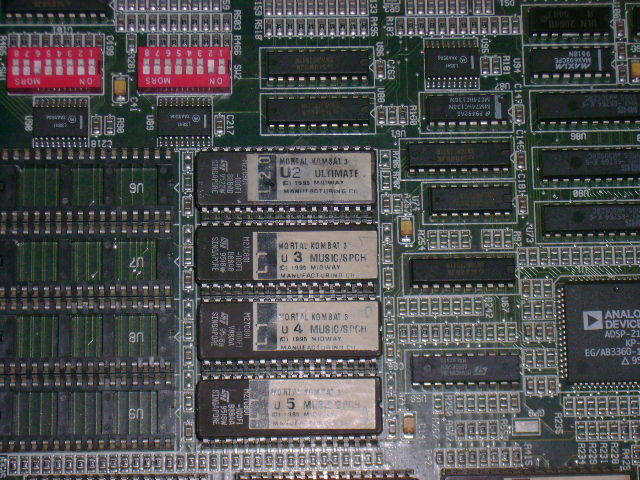

| UMK3 L2.0 U2 SOUND ROM.JPG (134,907 bytes) Dec 24, 2008, 20:50 | |||||

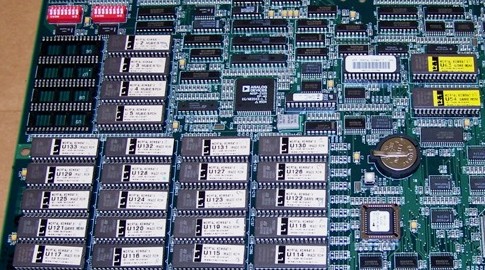

| MK3PCB 2.1.jpg (78,201 bytes) Dec 25, 2008, 21:34 | |||||

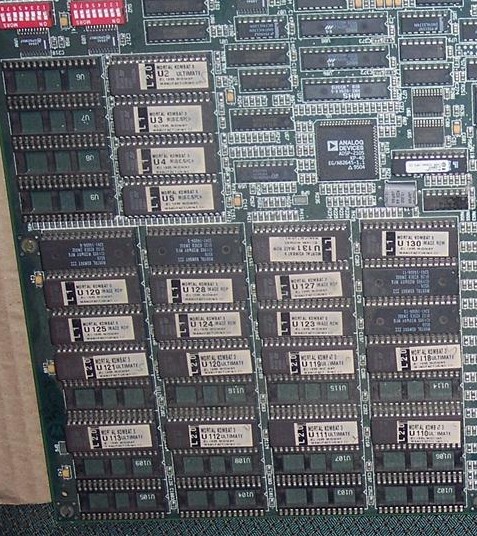

| UMK3 PCB.jpg (130,682 bytes) Dec 25, 2008, 21:35 | |||||
