03544: mgdh, sdmg2: The joystick function missed in mgdh and sdmg2

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
03544	DIP/Input	Major	Always	Nov 21, 2009, 17:46	Nov 24, 2009, 22:33

Tester	dyq	View Status	Public	Platform	MAME (Official Binary)
Assigned To	Luca Elia	Resolution	Fixed	OS	Windows XP (32-bit)
Status [?]	Resolved			Driver	igs/igs017.cpp
Version	0.135u1	Fixed in Version	0.135u2	Build
		Fixed in Git Commit		Github Pull Request #

Summary	03544: mgdh, sdmg2: The joystick function missed in mgdh and sdmg2

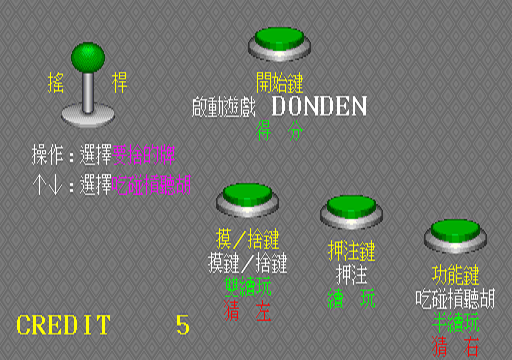

Description	The two games in arcade have a choice to select mahjong keyboard or joystick as the player control, as addressed in dips. The mgdh also shows demo to inctrodue how to use joystick as shown in the pic. But if you set the dip to use joystick you will not get the game to start. This is probably due to the undefined joystick function in "player controls". The emualtor only has traditional mahjong keyboard input.
Steps To Reproduce
Additional Information
Github Commit

Flags
Regression Version
Affected Sets / Systems	mgdh, sdmg2

Attached Files	0000.png (59,876 bytes) Nov 21, 2009, 17:46
Attached Files	0001.PNG (46,427 bytes) Nov 24, 2009, 14:50

No.05197 Osso Moderator Nov 22, 2009, 11:08	This is reported as todo in the driver: - mgcs, mgdh, sdmg2: implement joystick inputs
No.05208 Luca Elia Developer Nov 23, 2009, 21:22	Can somebody translate the labels (on buttons)?

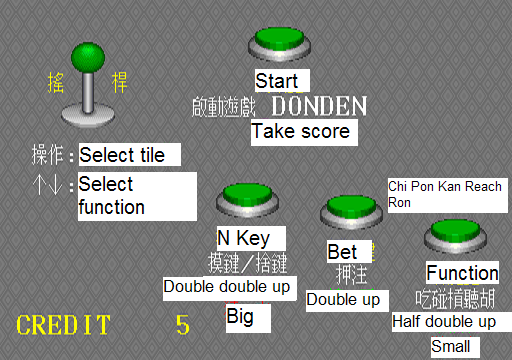

No.05209 dyq Tester Nov 24, 2009, 14:34 edited on: Nov 24, 2009, 15:09	I translate the words beside the keys, as shown in the pic. Joystick: move up and down to choose the Chi, Pon, Kan, Reach and Ron on the screen; move left and right to select tiles. Key 1: Start key; Donden; Take score. Key 2: Take tile or throw (as N in Mahjong Keyboard); Choose Double double up; Select Big in double up game. Key 3: Bet and Double up; Key 4: Key of function use( use joystick to select Chi, Pon, etc.); Half double up; Small in double up game. So the key function in later IGS mahjong games are overlapped. BTW, if Luca saw this notes, I would reminder him that the PCB layout in the igs017.c mislable the CPU in sdmg2 as IGS031, it should be IGS017 as seen on the real PCB.
