Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
03628 Graphics Trivial Always Jan 2, 2010, 01:34 May 9, 2010, 17:14
Tester M.A.S.H. View Status Public Platform MAME (Self-compiled)
Assigned To M.A.S.H. Resolution Fixed OS Windows XP (32-bit)
Status [?] Resolved Driver
Version 0.136 Fixed in Version 0.138 Build Normal
Fixed in Git Commit Github Pull Request #
Summary 03628: alpine: Red point on the title screen
Description There is a red point on the title screen since MAME 0.122u5
(see snapshot).

Zsolt Vasvari made a general Taito SJ code clean-up in 0.122u5.
Complete memory map from Nicola's ancient notes.
So my guess is that a size typo was made (1 and not 0 => 1-256; 0-255)
or some sort of decimal/hex.
Steps To Reproduce
Additional Information
Github Commit
Flags
Regression Version 0.122u5
Affected Sets / Systems alpine
Attached Files
png file icon alpine.png (2,219 bytes) Jan 2, 2010, 01:34
png file icon taitosj-Driver-Compare.png (18,987 bytes) Mar 8, 2010, 12:34
Relationships
related to 03047Resolvedhap  elevator, elevatorb: Some graphics on the escalators shift when you ride on them
Notes
3
User avatar
No.05843
M.A.S.H.
Senior Tester
Mar 8, 2010, 12:34
I found the problem with the red point in mame\video\taitosj.c driver.

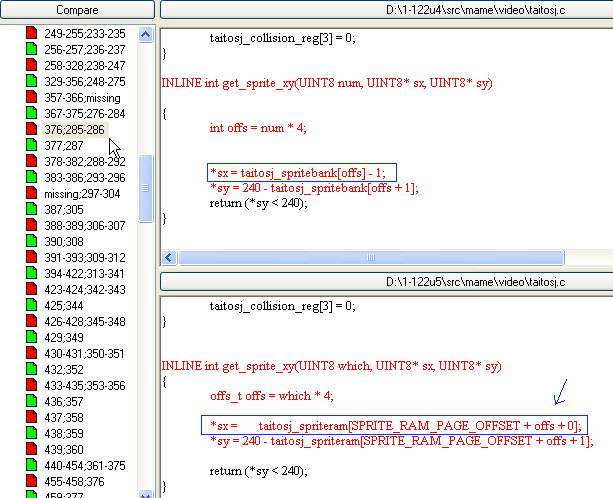

For me it looks like a typo (see attached compare pic)
and if you changed in MAME 0.136u4 mame\video\taitosj.c line 275 from:

*sx = taitosj_spriteram[SPRITE_RAM_PAGE_OFFSET + offs + 0];
back to
*sx = taitosj_spriteram[SPRITE_RAM_PAGE_OFFSET - 1];

the red point dissapear.
User avatar
No.05845
Tafoid
Administrator
Mar 8, 2010, 22:17
edited on: Mar 8, 2010, 22:17
Please do not assign bugs to other devs. If you were going to work on it, assign yourself - otherwise leave it alone. If you were wondering, there is an empty line at the very TOP of the assign list - which can be used to withdraw from a bug.
User avatar
No.06060
hap
Developer
May 9, 2010, 17:12
Agreed about the accidental error during cleanup.
More so because it fixes Elevator Action.
