04546: pinbo, pinboa, pinbos: Background colour is wrong

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
04546	Graphics	Minor	Always	Dec 4, 2011, 09:29	Oct 28, 2013, 23:25

Tester	Kold666	View Status	Public	Platform	MAME (Official Binary)
Assigned To		Resolution	Reopened	OS
Status [?]	Confirmed			Driver	snk/lasso.cpp
Version	0.144u1	Fixed in Version		Build	Normal
		Fixed in Git Commit		Github Pull Request #

Summary	04546: pinbo, pinboa, pinbos: Background colour is wrong

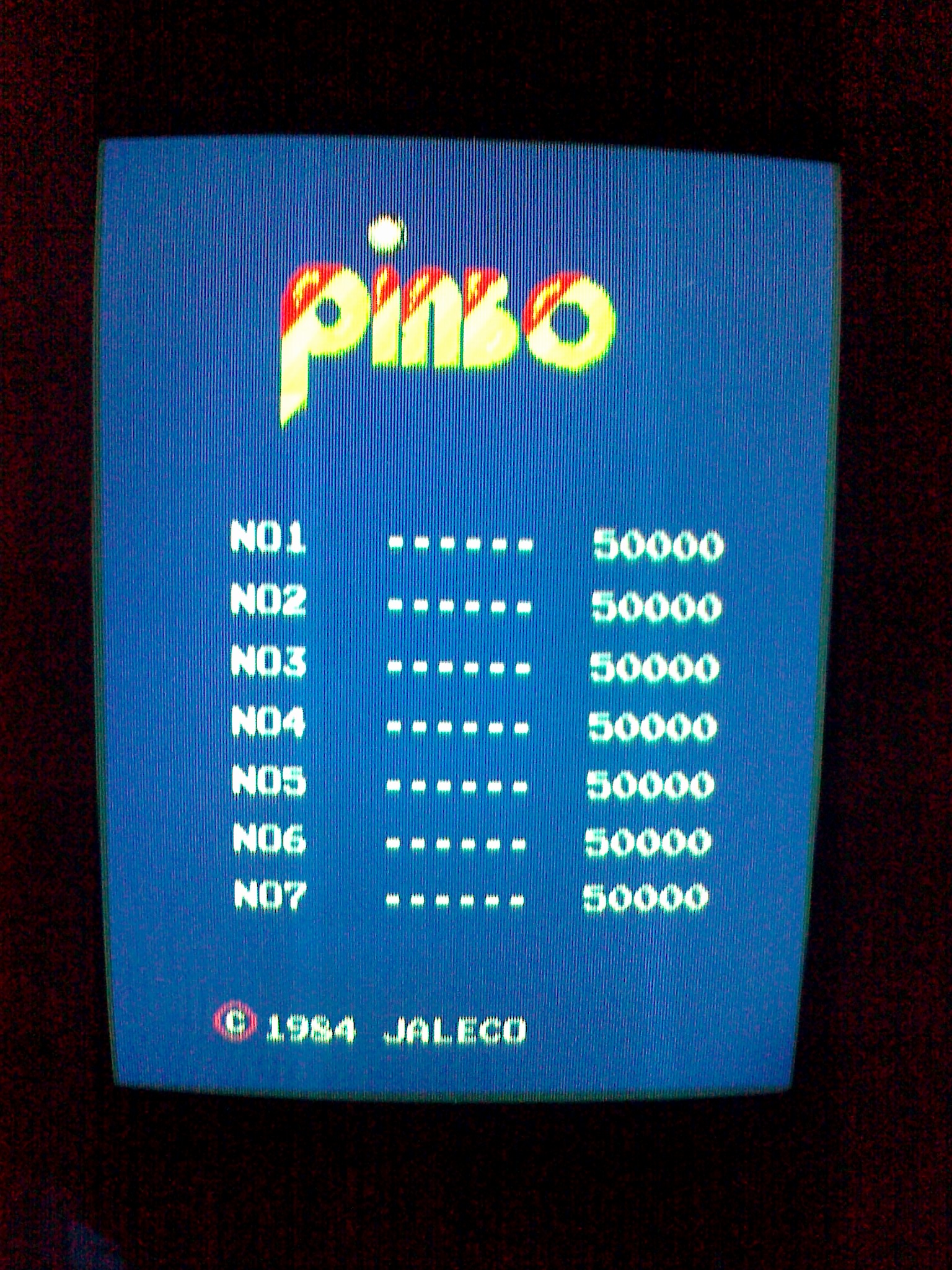

Description	The background colour is wrong in mame, see picture taken from original board
Steps To Reproduce
Additional Information
Github Commit

Flags	Verified with Original
Regression Version
Affected Sets / Systems	pinbo, pinboa, pinbos

Attached Files	04122011163.jpg (1,215,229 bytes) Dec 4, 2011, 09:29 Uploaded by Kold666
Attached Files	17122011171.jpg (1,452,584 bytes) Dec 17, 2011, 13:16 Uploaded by Kold666

No.07936 hap Developer Dec 4, 2011, 12:05	BTW do you have time to do cpu/audiochip and maybe video frequency measurements on this pcb? Or if you don't, just xtal info would be helpful too.
No.07937 Kold666 Developer Dec 4, 2011, 13:29	I already sent everything to tafoid to be added in mame, for your information: 6502 = 18mhz/24 (yes it's 750khz) z80= 18mhz/6 2x AY8910 = 18mhz/12
No.07959 Kold666 Developer Dec 10, 2011, 18:11	the background colour is still wrong , it should be dark blue
No.07960 hap Developer Dec 10, 2011, 19:01	It's a different issue but yeah, too much green in it, and not just the background color. Could you add a photo of attract mode? And a close up of PCB color proms resistors? I saw a pcb pic on your old site, with lots of resistors on one side of the pcb, but the photo sharpness is not high.
No.07966 Kold666 Developer Dec 15, 2011, 13:40	that background color is the same as the background of the pinball ;) I'll take a picture of the resistors on the colours proms. Btw, the site is not mine and the pcb you saw was a bootleg ;)
No.07976 Kold666 Developer Dec 16, 2011, 08:59 edited on: Dec 16, 2011, 08:59	The original pcb is very similar to the bootleg, there are so many resistors that it doesn't make sense to take a picture without tracing the pcb. On the board there are three proms 1kbit (256x4) named R, G, B. Pin 12 is O1 Pin 11 is O2 Pin 10 is O3 Pin 9 is O4 I will try to trace to which resistor value are these four lines of the proms connected
No.07978 Kold666 Developer Dec 16, 2011, 19:29	Red Prom: O4 --> 220ohm O3 --> 470ohm O2 --> 1k ohm O1 --> 2.15k ohm Green prom: O4 --> 220ohm O3 --> 470ohm O2 --> 1k ohm O1 --> 2.15k ohm Blue prom: O4 --> 220ohm O3 --> 470ohm O2 --> 1k ohm O1 --> 2.15k ohm
No.07979 hap Developer Dec 16, 2011, 23:55	Thanks

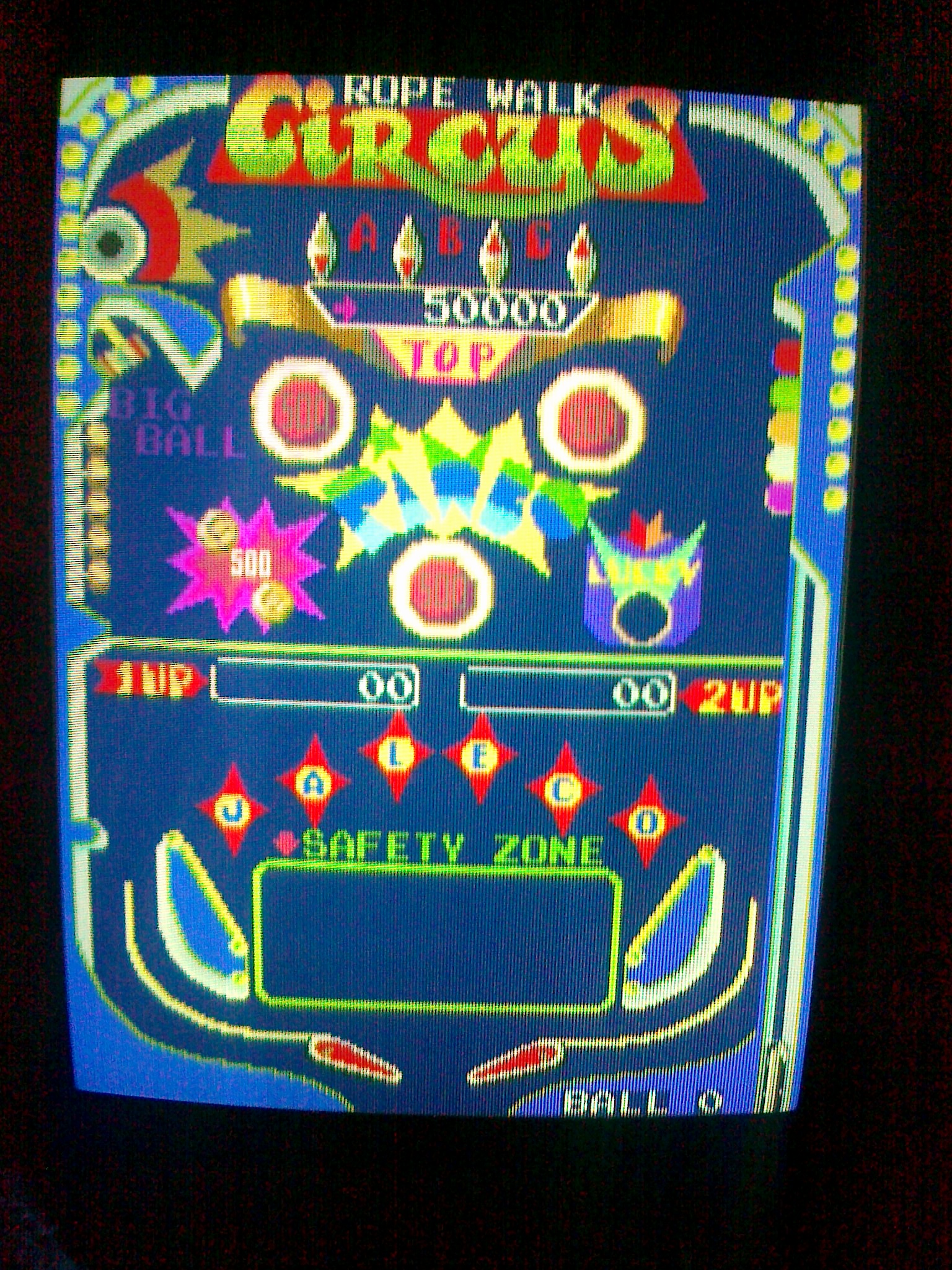

No.07982 Kold666 Developer Dec 17, 2011, 13:17	added a pic of the gameplay
