04604: All sets using .LAY files: Misplaced, misaligned or malformed graphic overlays and text

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
04604	Graphics	Minor	Have not tried	Jan 15, 2012, 22:58	Feb 11, 2012, 19:31

Tester	Tafoid	View Status	Public	Platform	MAME (Self-compiled)
Assigned To	aaron	Resolution	Fixed	OS	Windows XP (32-bit)
Status [?]	Resolved			Driver
Version	0.144u6	Fixed in Version	0.144u7	Build	Normal
		Fixed in Git Commit		Github Pull Request #

Summary	04604: All sets using .LAY files: Misplaced, misaligned or malformed graphic overlays and text
Description	In most sets using color overlays, having buttons with text, shifters and other instances of internal LAY file usage, there are errors appearing
Steps To Reproduce

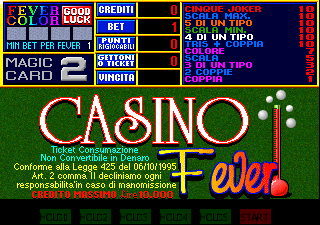

Additional Information	Posted snaps of some examples
Github Commit

Flags
Regression Version	0.144u6
Affected Sets / Systems	All sets using .LAY files

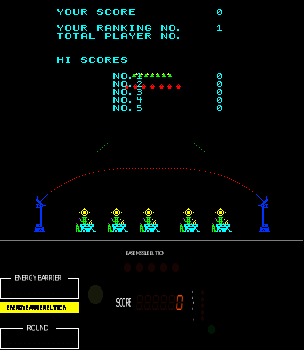

Attached Files	stactics.png (4,780 bytes) Jan 15, 2012, 22:58 Uploaded by Tafoid

No.08034 hap Developer Jan 15, 2012, 23:24	Since it regressed before r15019, it has to be at r15011
No.08038 M.A.S.H. Senior Tester Jan 16, 2012, 18:53 edited on: Jan 16, 2012, 18:55	Aaron has fixed the rendering issues with artwork (r15051). I updated MAME to r15051, but now the shifter lay gfx in games like 280zzzap or lagunar are corrupt.
No.08058 Tafoid Administrator Jan 20, 2012, 17:50	This is supposedly fixed for u7, but there are still subtile differences which may or may not be a bug. More to come..
No.08060 M.A.S.H. Senior Tester Jan 20, 2012, 18:55	Updated to r15091. The only new problem i found by testing the old 70/80s games is that the background gfx in progolf is broken.
No.08061 Tafoid Administrator Jan 20, 2012, 19:08	Reporting issues (even in notes) using sources not publicly released in U/integer release form is not allowed on site. While this policy may change in the future, for now please do not mention bugs which may happen from SVN/GIT updates between published releases here. You can contact me privately through a number of means if something appears to regress, so it can be fixed before the next source release. Thank you
No.08062 M.A.S.H. Senior Tester Jan 20, 2012, 19:47 edited on: Jan 20, 2012, 19:49	I made not a report, i just comment your u7 note. BTW this report can be closed. Aaron has do his job!

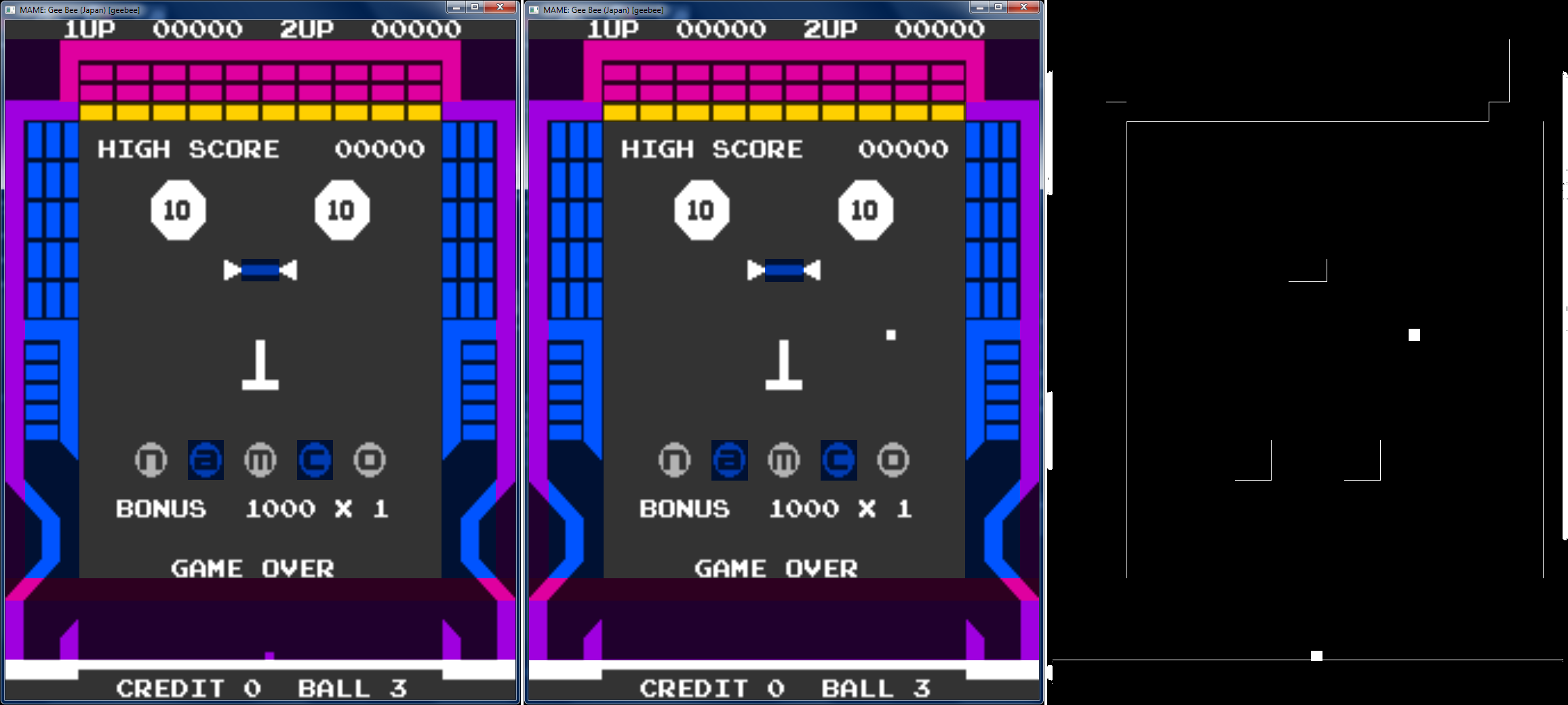

No.08098 hap Developer Jan 28, 2012, 15:27 edited on: Jan 28, 2012, 15:34	It's improved a lot, but there is still an off-by-1 problem, affecting all .lay files. Compare the geebee images in a viewer to see it.
No.08184 hap Developer Feb 11, 2012, 19:31	Closing. the one-off error was actually caused by a proper fix
