| ID | Category [?] | Severity [?] | Reproducibility | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 04876 | Graphics | Minor | Always | May 28, 2012, 03:50 | May 28, 2012, 11:02 |
| Tester | M.A.S.H. | View Status | Public | Platform | MAME (Self-compiled) |
| Assigned To | Resolution | Duplicate | OS | Windows XP | |
| Status [?] | Closed | Driver | |||
| Version | 0.146 | Fixed in Version | Build | Normal | |
| Fixed in Git Commit | Github Pull Request # | ||||
| Summary | 04876: tmnt: Visible area problem | ||||
| Description |
The visible area in 'Teenage Mutant Ninja Turtles' is too big, there is a big bar on the left (see tmnt-146.png). It was changed in 0.143u8: Various fixes in tmnt.c driver [kanikani] * T.M.N.T. - fixed visible area (garbage on each side is correct (verified on PCB)) . . . I checked Youtube and found 4x videos which show the correct "visible area" and not the garbage on each side. Replaced in drivers\tmnt.c at MACHINE_CONFIG_START( tmnt, tmnt_state ) lines 2367/8: //MCFG_SCREEN_VISIBLE_AREA(13*8, (64-13)*8-1, 2*8, 30*8-1 ) MCFG_SCREEN_VISIBLE_AREA(13*8-8, (64-13)*8-1+8, 2*8, 30*8-1 ) with MCFG_SCREEN_VISIBLE_AREA(13*8, (64-13)*8-1, 2*8, 30*8-1 ) or better with this smaller one MCFG_SCREEN_VISIBLE_AREA(13*8+8, (64-13)*8-1-8, 2*8, 30*8-1 ) |
||||
| Steps To Reproduce | |||||
| Additional Information | |||||
| Github Commit | |||||
| Flags | |||||
| Regression Version | 0.143u8 | ||||
| Affected Sets / Systems | tmnt | ||||
|
Attached Files
|

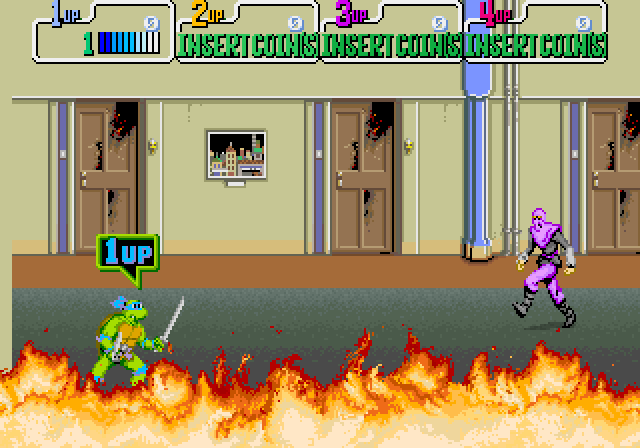

 tmnt-0.146.png (21,453 bytes) May 28, 2012, 03:50 Uploaded by M.A.S.H. | ||||

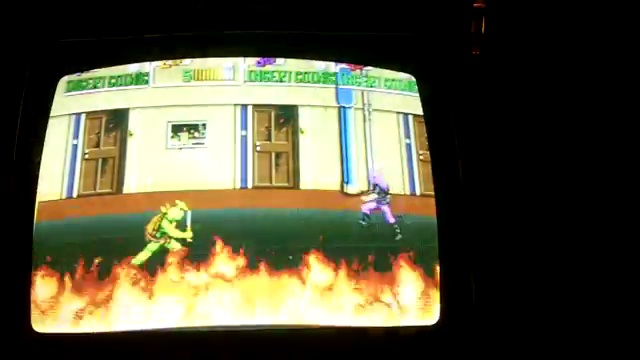

 Teenage Mutant Hero Turtles TMNT Arcade Machine Level 1 in Play (DbIjpsPMmvM).jpg (55,966 bytes) May 28, 2012, 03:51 Uploaded by M.A.S.H. | |||||

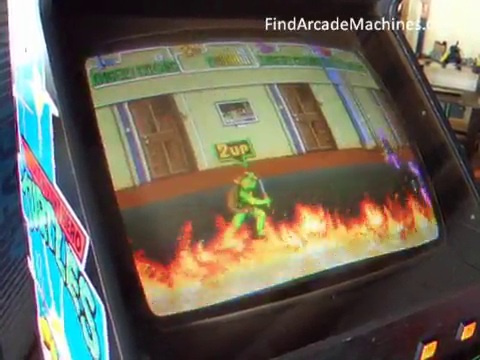

| Teenage Mutant Hero Turtles Arcade Machine (QI9MW2u3nEg).jpg (53,224 bytes) May 28, 2012, 03:52 Uploaded by M.A.S.H. | |||||

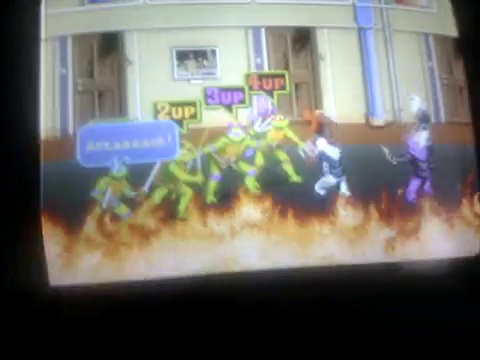

| Arcade Cab Review Teenage Mutant Hero Turtles - Replay Expo 2011 (u_dd8J3HAmc).jpg (43,731 bytes) May 28, 2012, 03:53 Uploaded by M.A.S.H. | |||||

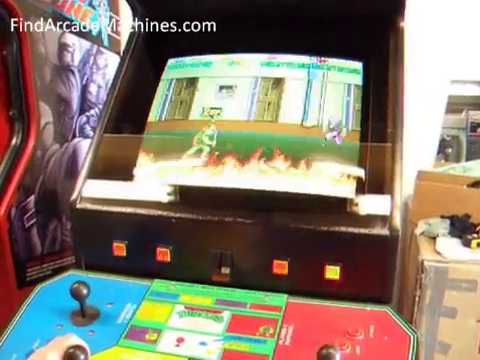

| My 80's90's arcade collection(oUPACiabQUg).jpg (36,289 bytes) May 28, 2012, 03:53 Uploaded by M.A.S.H. | |||||
 No.08675
haynor666 Tester
May 28, 2012, 06:14
|
One of the photos actually shows a bit of this yellow bar |
|---|---|
 No.08677
Tafoid Administrator
May 28, 2012, 11:00
|
http://mametesters.org/view.php?id=4790 Not a bug Closing as duplicate |
