| ID | Category [?] | Severity [?] | Reproducibility | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 05563 | DIP/Input | Trivial | Always | May 2, 2014, 15:20 | May 3, 2014, 14:19 |
| Tester | kamilz | View Status | Public | Platform | MAMEUI |
| Assigned To | Resolution | Open | OS | Windows Vista/7/8 (64-bit) | |
| Status [?] | Acknowledged | Driver | |||
| Version | 0.153 | Fixed in Version | Build | 64-bit | |
| Fixed in Git Commit | Github Pull Request # | ||||
| Summary | 05563: hjingi: Unknown dips are Unused, some default settings are seems unaccurate. | ||||
| Description |
Overall on Mame everything set, this is very trivial report, I reported because our goal here see perfect Mame (as possible). Manual says Unknown DIPs (on Mame) either undefined or unused. Manual uploaded. On Mame defaults are all OFF, manual says similar except: DIPSW2: Payout rate sw 1 ON, sw2 and 3 correct (OFF) Pay out rate change sw 4 ON DIPSW3: Max Bet sw 4 ON, sw 5 correct OFF UNKNOWNS: DIPSW1: sw2 Undefined OFF DIPSW4: sw1 Unused OFF sw 4,5,6,7,8 Unused OFF |
||||
| Steps To Reproduce | |||||
| Additional Information | |||||
| Github Commit | |||||
| Flags | |||||
| Regression Version | |||||
| Affected Sets / Systems | hjingi | ||||
|
Attached Files
|

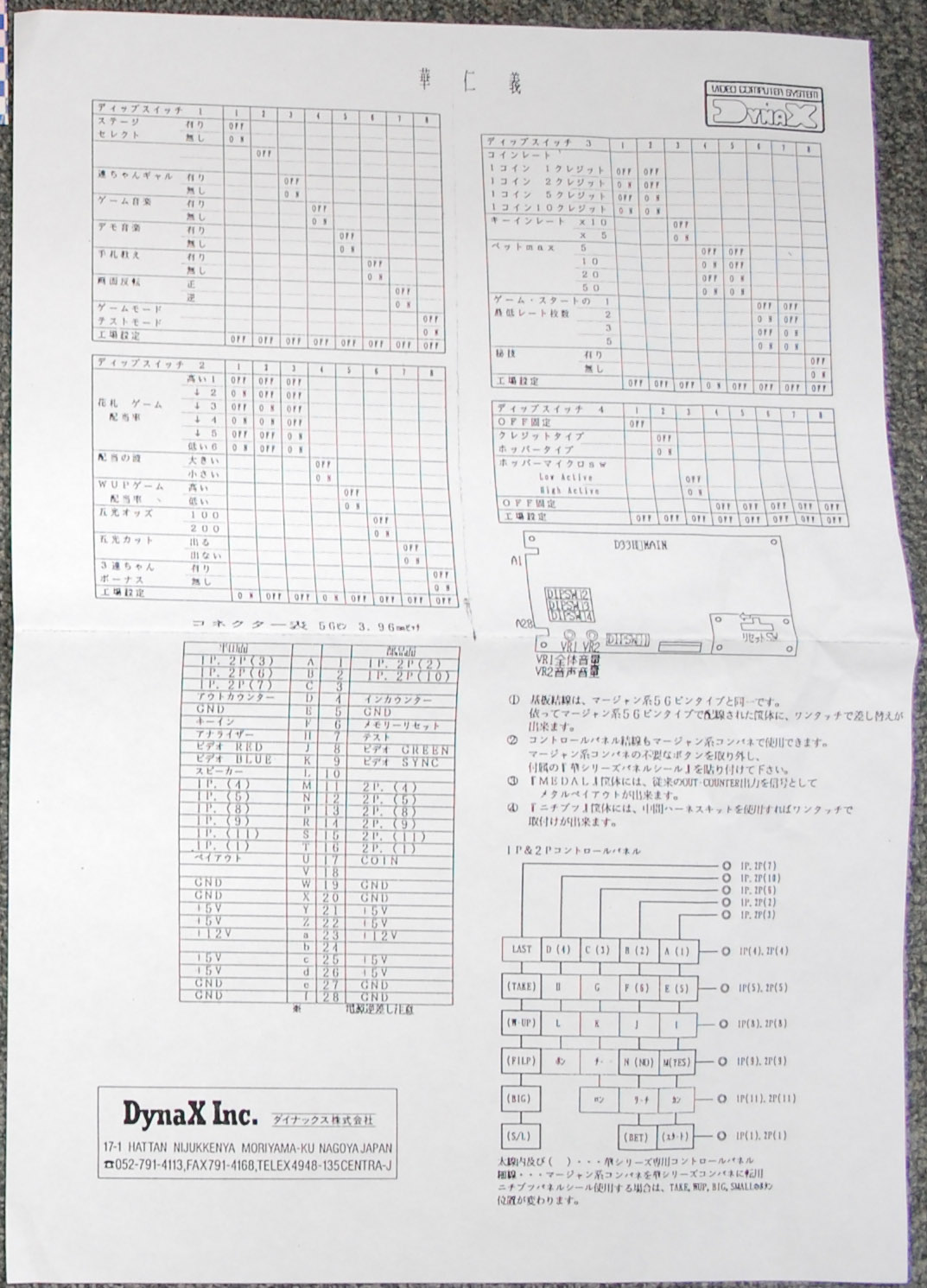

 hjingi.jpg (257,920 bytes) May 2, 2014, 15:20 Uploaded by kamilz | ||||

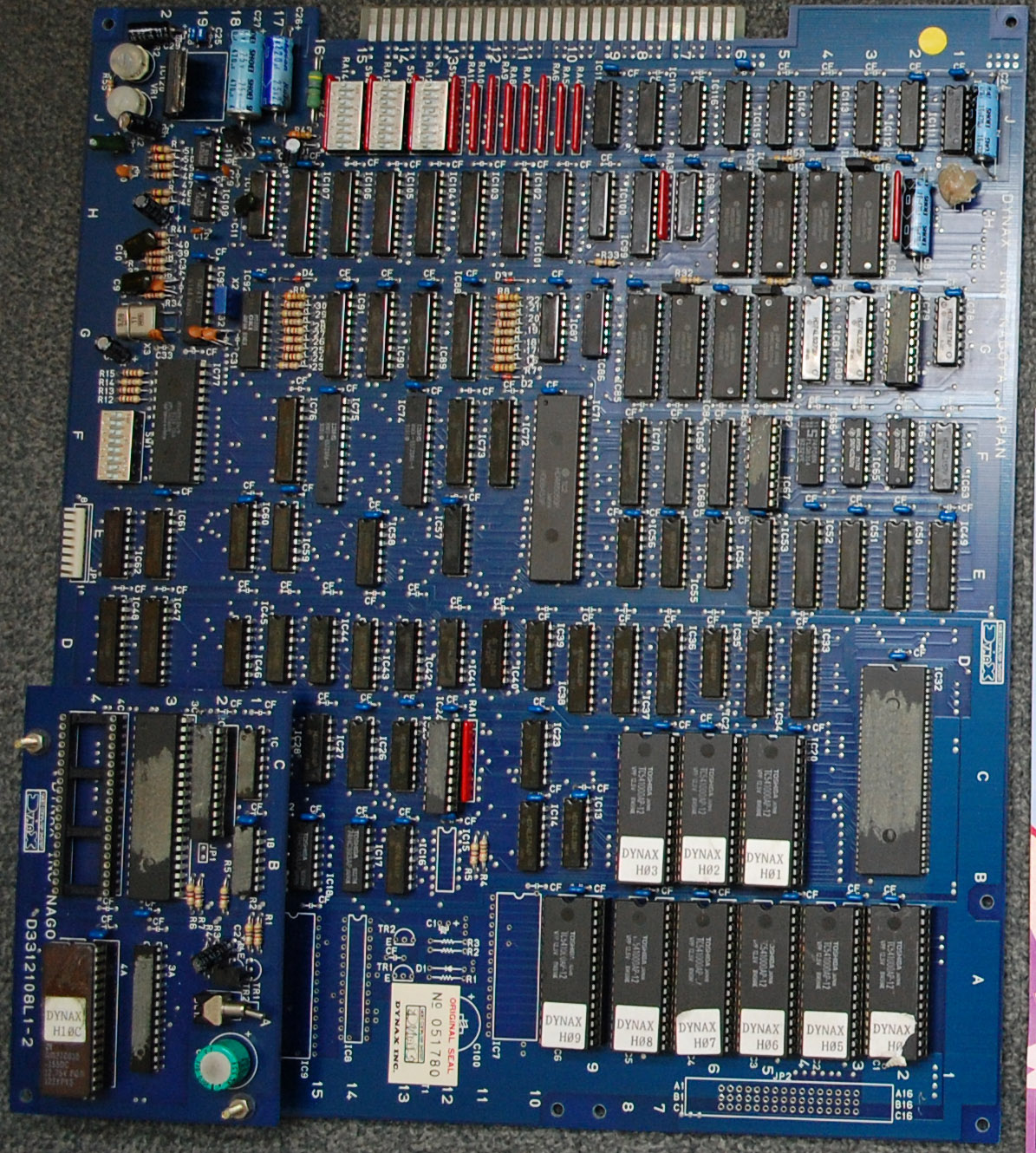

| hjingiPCB.jpg (549,429 bytes) May 2, 2014, 15:34 Uploaded by kamilz | |||||
