Viewing Issue Advanced Details
| ID | Category [?] | Severity [?] | Reproducibility | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 05566 | DIP/Input | Trivial | Always | May 2, 2014, 19:13 | Feb 14, 2017, 09:28 |
| Tester | kamilz | View Status | Public | Platform | |
| Assigned To | Resolution | Fixed | OS | Windows Vista/7/8 (64-bit) | |
| Status [?] | Resolved | Driver | |||
| Version | 0.153 | Fixed in Version | 0.176 | Build | 64-bit |
| Fixed in Git Commit | Github Pull Request # | ||||
| Summary | 05566: untoucha: DIP settings resolved. | ||||
| Description |
On Mame all are unknown. I prepared a text file and tried to type everything exactly as on the manual (uploaded) I also supplied Google translations. Hope that helps. |
||||
| Steps To Reproduce | |||||
| Additional Information | |||||
| Github Commit | |||||
| Flags | |||||
| Regression Version | |||||
| Affected Sets / Systems | untoucha | ||||
|
Attached Files
|
|||||
Game Manual text file [Show Content] [Hide Content]UNTOUCHABLE DIP-SW SPAC
DIP-SW. 1
---------------------------------------------------------
FUNCTION |sw1|sw2|sw3|sw4|sw5|sw6|sw7|sw8|
---------------------------------------------------------
ステージ数の切替え | | | | | | (The switching of the number of stages)
4 STAGES |OFF| | | | |
3 STAGES |ON | | | | |
---------------------------------------------------------
スコアー,リミットの切替え | | | | | | (Switching between score limit) [LIMIT]
200, 1000, 10K, 70K | |OFF|OFF| | | |
250, 2000, 10K, 70K | |OFF|ON | | | |
500, 5000, 10K, 70K | |ON |OFF| | | |
1000, 5000, 10K, 70K | |ON |ON | | | |
---------------------------------------------------------
連チャン難易度 | | | | | | (Extended game difficulty) [DIFFICUILTY]
普通 2 | | |OFF|OFF| | | (Normal)
易 1 | | |OFF|ON | | | (Easy)
3 | | |ON |OFF| | |
難 4 | | |ON |ON | | | (Hard)
---------------------------------------------------------
ステージアップ難易度 | | | | | | (Stage up difficulty) [STAGEUP DIFFICUILTY]
普通 2 | | | |OFF|OFF| | (Normal)
易 1 | | | |OFF|ON | | (Easy)
3 | | | |ON |OFF| |
難 4 | | | |ON |ON | | (Hard)
---------------------------------------------------------
ダブルアップ難易度 | | | | | (Double up difficulty)
普通 | | | |OFF| (Normal)
難 | | | |ON | (Hard)
---------------------------------------------------------
DIP-SW. 2
---------------------------------------------------------
FUNCTION |sw1|sw2|sw3|sw4|sw5|sw6|sw7|sw8|
---------------------------------------------------------
デモ音楽 カット |ON | | | | | | (Demo music cut)
---------------------------------------------------------
音声 カット | |ON | | | | | (Voice cut)
---------------------------------------------------------
オールヌード カット | | |ON | | | | (All nude cut)
---------------------------------------------------------
オートホールド カット | | | |ON | | | (AUTO HOLD cut)
---------------------------------------------------------
コイン 2 レート | | | | | | | (Coin 2 rate)
1 COIN 5 CREDITS | | | | |OFF| |
8 CREDITS | | | | |ON | |
---------------------------------------------------------
コイン 1 の スコアーレートー | | | | | | | (Score rate of over 1 coin)
1 CREDIT 25 SCORE | | | | | |OFF|OFF|OFF|
" 5 " | | | | | |OFF|OFF|ON |
" 10 " | | | | | |OFF|ON |OFF|
" 15 " | | | | | |OFF|ON |ON |
" 20 " | | | | | |ON |OFF|OFF|
" 50 " | | | | | |ON |OFF|ON |
" 75 " | | | | | |ON |ON |OFF|
" 100 " | | | | | |ON |ON |ON |
---------------------------------------------------------
O 工場出荷時のDIP-SW設定は ①,②共全てOFFです。設置の目安にして下さい。
(DIP-SW set of factory (1), is all OFF (2) both. Please as a guide for setting up the projector.) *
NOTES
(...) are Google translations

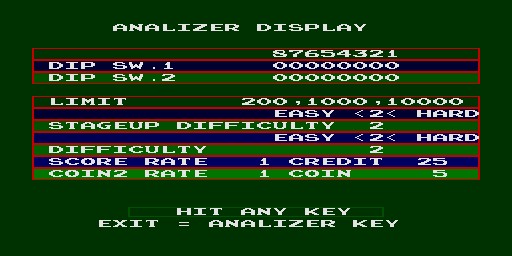

[...] are taken fron service menu
* I think it kinda says defaults are all OFF.
| |||||
Relationships
| There are no relationship linked to this issue. |
Notes
1
|
No.13629
Osso Moderator
Feb 14, 2017, 09:28
|
Fixed by Guru, commit by Luca Elia: https://git.redump.net/mame/commit/?id=94c6feb56e2c6c802d71f55b1cb2d0fb1699b108 |
|---|
