Viewing Issue Advanced Details
ID | Category [?] | Severity [?] | Reproducibility | Date Submitted | Last Update |
---|---|---|---|---|---|
05578 | DIP/Input | Trivial | Always | May 9, 2014, 17:13 | 24 days ago |
Tester | kamilz | View Status | Public | Platform | MAME (Official Binary) |
Assigned To | Resolution | Open | OS | Windows Vista/7/8 (64-bit) | |
Status [?] | Acknowledged | Driver | |||
Version | 0.153 | Fixed in Version | Build | 64-bit | |
Fixed in Git Commit | Github Pull Request # | ||||
Summary | 05578: tenkai and clones: DIPSW settings resolved and a ROM Error detected | ||||
Description |

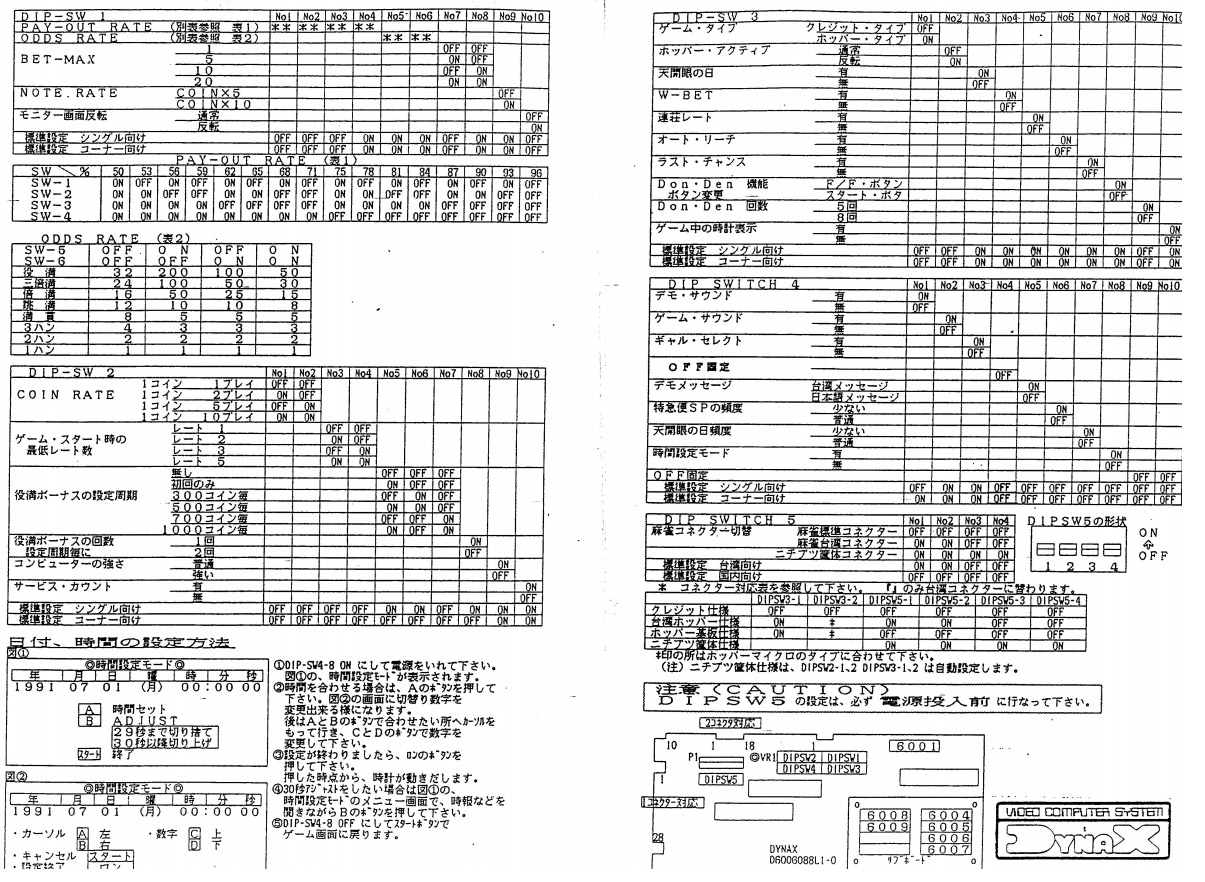

I prepared a text file to help developers DIPSW Manual also uploaded. On Hardware test screen I noticed a ROM ERROR, yes it's pretty much trivial since the game very much playable. But I though developers may interested in this kind of errors (picture uploaded). Hope that helps, thanks. |
||||
Steps To Reproduce | |||||
Additional Information | |||||
Github Commit | |||||
Flags | |||||
Regression Version | |||||
Affected Sets / Systems | tenkai and clones | ||||
Attached Files
|
| ||||

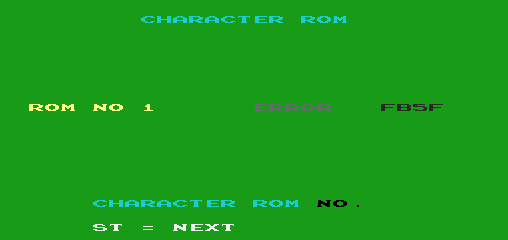

tenkaiERROR.png (2,066 bytes) May 9, 2014, 17:15 Uploaded by kamilz ROM ERROR
| |||||
tenkai.txt (10,261 bytes) May 9, 2014, 17:20 Uploaded by kamilz DIPSW SETTINGS [Show Content] [Hide Content]MEDAL TENKAIGEN ------------------------------------------------------------------------- | DIP-SW 1 |No1|No2|No3|No4|No5|No6|No7|No8|No9|N10| ------------------------------------------------------------------------- | PAY OUT RATE (CHK.TABLE 1) |***|***|***|***| | | | | | | ------------------------------------------------------------------------- | ODDS RATE (CHK.TABLE 2) | | | | |***|***| | | | | ------------------------------------------------------------------------- | BET-MAX 1 | | | | | | |OFF|OFF| | | | 5 | | | | | | |ON |OFF| | | | 10 | | | | | | |OFF|ON | | | | 20 | | | | | | |ON |ON | | | ------------------------------------------------------------------------- | NOTE RATE COINx5 | | | | | | | | |OFF| | | COINx10 | | | | | | | | |ON | | ------------------------------------------------------------------------- | SCREEN FLIP NORMAL | | | | | | | | | |OFF| | REVERSED | | | | | | | | | |ON | ------------------------------------------------------------------------- | DEFAULT VALUES |OFF|OFF|OFF|ON |ON |ON |OFF|ON |ON |OFF| ------------------------------------------------------------------------- TABLE 1 - PAY OUT RATE ------------------------------------------------------------------------- | SW/% | 50| 53| 56| 59| 62| 65| 68| 71| 75| 78| 81| 84| 87| 90| 93| 96| ------------------------------------------------------------------------- | SW-1 | ON|OFF| ON|OFF| ON|OFF| ON|OFF| ON|OFF| ON|OFF| ON|OFF| NO|OFF| | SW-2 | ON| ON|OFF|OFF| ON|ON |OFF|OFF| ON| ON|OFF|OFF| ON| ON|OFF|OFF| | SW-3 | ON| ON| ON| ON|OFF|OFF|OFF|OFF| ON| ON| ON| ON|OFF|OFF|OFF|OFF| | SW-4 | ON| ON| ON| ON| ON|ON | ON| ON|OFF|OFF|OFF|OFF|OFF|OFF|OFF|OFF| ------------------------------------------------------------------------- TABLE 2 - ODDS RATE --------------------------- | SW-5 |OFF|ON |OFF|ON | | SW-6 |OFF|OFF|ON |ON | --------------------------- | YAKUMAN | 32|200|100| 50| | TRIPLE | 24|100| 50| 30| | DOUBLE | 16| 50| 25| 15| | HANEMAN | 12| 10| 10| 8| | MANGAN | 8| 5| 5| 5| | 3 HAN | 4| 3| 3| 3| | 2 HAN | 2| 2| 2| 2| | 1 HAN | 1| 1| 1| 1| --------------------------- --------------------------------------------------------------------------------- | DIP-SW 2 |No1|No2|No3|No4|No5|No6|No7|No8|No9|N10| --------------------------------------------------------------------------------- | COIN RATE 1 COIN 1 CREDIT |OFF|OFF| | | | | | | | | | 1 COIN 2 CREDITS |ON |OFF| | | | | | | | | | 1 COIN 5 CREDITS |OFF|ON | | | | | | | | | | 1 COIN 10 CREDITS |ON |ON | | | | | | | | | --------------------------------------------------------------------------------- | MIN RATE TO PLAY RATE 1 | | |OFF|OFF| | | | | | | | RATE 2 | | |ON |OFF| | | | | | | | RATE 3 | | |OFF|ON | | | | | | | | RATE 5 | | |ON |ON | | | | | | | --------------------------------------------------------------------------------- | YAKUMAN BONUS NONE | | | | |OFF|OFF|OFF| | | | | ONCE ON START | | | | |ON |OFF|OFF| | | | | EVERY 300 COIN | | | | |OFF|ON |OFF| | | | | EVERY 500 COIN | | | | |ON |ON |OFF| | | | | EVERY 700 COIN | | | | |OFF|OFF|ON | | | | | EVERY 1000 COIN | | | | |ON |OFF|ON | | | | --------------------------------------------------------------------------------- | YAKUMAN BONUS CYCLE ONCE | | | | | | | |ON | | | | TWICE | | | | | | | |OFF| | | --------------------------------------------------------------------------------- | COMPUTER DIFFICULTY NORMAL | | | | | | | | |ON | | | STRONG | | | | | | | | |OFF| | --------------------------------------------------------------------------------- | SERVICE COUNTING ENABLED | | | | | | | | | |ON | | DISABLED | | | | | | | | | |OFF| --------------------------------------------------------------------------------- | DEFAULT VALUES SINGLE TYPE |OFF|OFF|OFF|OFF|ON |ON |OFF|ON |ON |ON | | CORNER TYPE |OFF|OFF|OFF|OFF|OFF|OFF|OFF|OFF|ON |ON | --------------------------------------------------------------------------------- --------------------------------------------------------------------------------- | DIP-SW 3 |No1|No2|No3|No4|No5|No6|No7|No8|No9|N10| --------------------------------------------------------------------------------- | GAME TYPE CREDIT TYPE |OFF| | | | | | | | | | | HOPPER TYPE |ON | | | | | | | | | | --------------------------------------------------------------------------------- | HOPPER ACTIVE NORMAL | |OFF| | | | | | | | | | REVERSED | |ON | | | | | | | | | --------------------------------------------------------------------------------- | 天開眼の日 ENABLED | | |ON | | | | | | | | | (tenkaigen info?) DISABLED | | |OFF| | | | | | | | --------------------------------------------------------------------------------- | W-BET YES | | | |ON | | | | | | | | NO | | | |OFF| | | | | | | --------------------------------------------------------------------------------- | RENCHAN RATE YES | | | | |ON | | | | | | | NO | | | | |OFF| | | | | | --------------------------------------------------------------------------------- | AUTO REACH YES | | | | | |ON | | | | | | NO | | | | | |OFF| | | | | --------------------------------------------------------------------------------- | LAST CHANCE YES | | | | | | |ON | | | | | NO | | | | | | |OFF| | | | --------------------------------------------------------------------------------- | DON DEN BUTTON F/F BUTTON | | | | | | | |ON | | | | START BUTTON | | | | | | | |OFF| | | --------------------------------------------------------------------------------- | DON DEN CYCLE 5 TIMES | | | | | | | | |ON | | | 8 TIMES | | | | | | | | |OFF| | --------------------------------------------------------------------------------- | SHOW CLOCK IN GAME YES | | | | | | | | | |ON | | NO | | | | | | | | | |OFF| --------------------------------------------------------------------------------- | DEFAULT VALUES |OFF|OFF|ON |ON |ON |ON |ON |ON |OFF|ON | --------------------------------------------------------------------------------- --------------------------------------------------------------------------------- | DIP-SW 4 |No1|No2|No3|No4|No5|No6|No7|No8|No9|N10| --------------------------------------------------------------------------------- | DEMO SOUNDS YES |ON | | | | | | | | | | | NO |OFF| | | | | | | | | | --------------------------------------------------------------------------------- | GAME SOUNDS YES | |ON | | | | | | | | | | NO | |OFF| | | | | | | | | --------------------------------------------------------------------------------- | GAL SELECT YES | | |ON | | | | | | | | | NO | | |OFF| | | | | | | | --------------------------------------------------------------------------------- | UNUSED OFF | | | | | | | | | | | | (Moles on gals face) | | | |OFF| | | | | | | --------------------------------------------------------------------------------- | DEMO MESSAGES TAIWANESE | | | | |ON | | | | | | | JAPANESE | | | | |OFF| | | | | | --------------------------------------------------------------------------------- | 特急便SPの頻度 NOT MANY | | | | | |ON | | | | | | (game speed?) NORMAL | | | | | |OFF| | | | | --------------------------------------------------------------------------------- | 天開眼の日頻度 NOT MANY | | | | | | |ON | | | | | (tenkaigen rate?) NORMAL | | | | | | |OFF| | | | --------------------------------------------------------------------------------- | SET CLOCK MODE ENABLED | | | | | | | |ON | | | | DISABLED | | | | | | | |OFF| | | --------------------------------------------------------------------------------- | UNUSED OFF | | | | | | | | |OFF|OFF| --------------------------------------------------------------------------------- | DEFAULT VALUES SINGLE TYPE |OFF|ON |ON |OFF|OFF|OFF|OFF|OFF|OFF|OFF| | CORNER TYPE |ON |ON |ON |OFF|OFF|OFF|OFF|OFF|OFF|OFF| --------------------------------------------------------------------------------- NOTES: DIPSW4, SW4 (moles) and SW9 (subtitle) on MAME defined correctly although on manual is unused. | |||||
Relationships
There are no relationship linked to this issue. |
Notes
2
No.22435
cuavas Administrator
25 days ago
|
DIP switch settings are corrected in e76b2cd790bbc43d8316b1201d851d76665c377d The manual shown in https://github.com/mamedev/mame/issues/12846 documents one more DIP switch setting than the one here (SW4:4, Gal Pose, shown as “fixed off” here) |
---|---|
No.22436
cuavas Administrator
24 days ago
|
ROM error is still present. Maybe the graphics ROMs should be marked as bad dumps. |
