Viewing Issue Advanced Details
|ID||Category [?]||Severity [?]||Reproducibility||Date Submitted||Last Update|
|07912||Graphics||Minor||Always||31 days ago||15 days ago|
|Tester||halmako||View Status||Public||Platform||MAME (Official Binary)|
|Assigned To||Resolution||Duplicate||OS||Windows 10 (64-bit)|
|Version||0.229||Fixed in Version||Build||64-bit|
|Fixed in Git Commit||Github Pull Request #|
|Summary||07912: vis: Various graphic glitches for reference.|

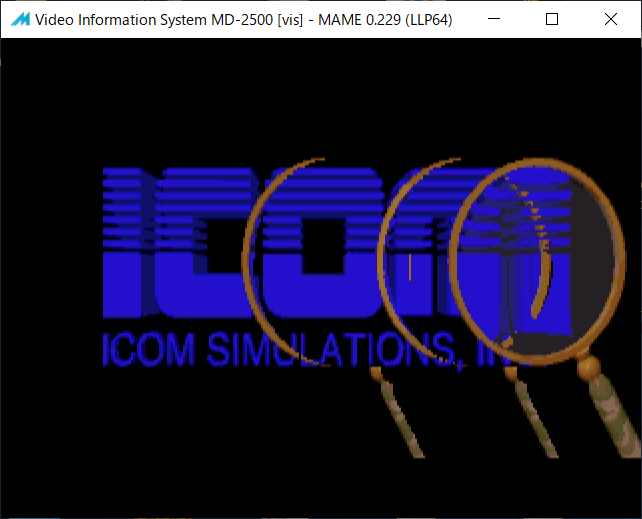

1) In the opening screen, the magnifying glass moves from left to right, but some afterimages remain in the middle.

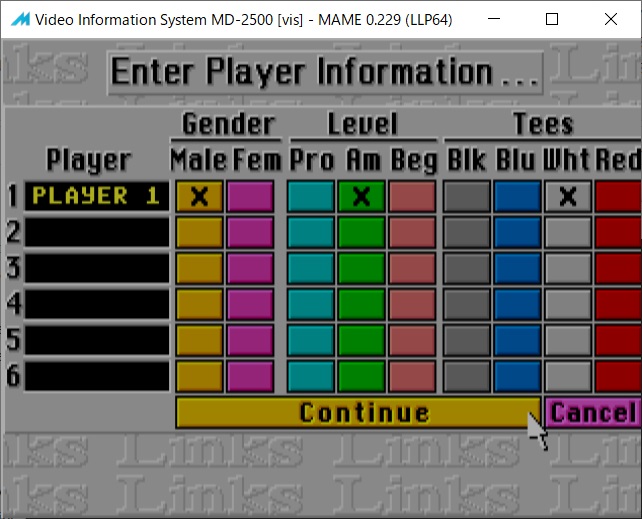

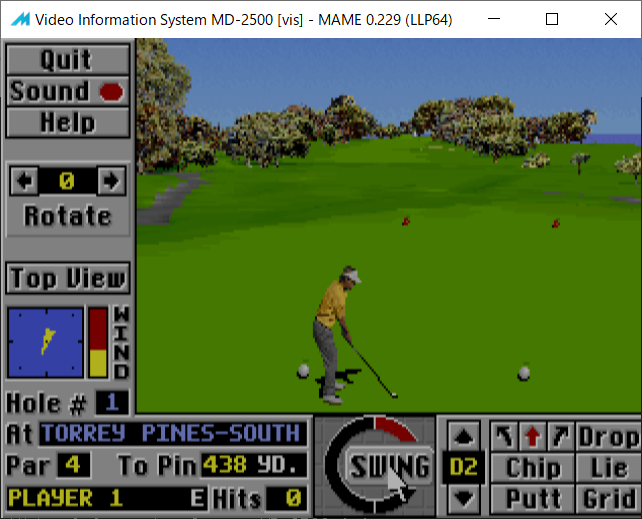

2) Links :The Challenge of Golf is cutting off the right edge of the screen.
|Steps To Reproduce||
When I start the game, it is obvious that the right edge of some screens are cut off.
I compared it to the DOS version for confirmation, and confirmed that the right edge of the screen is cut off where the same screen is displayed.
|Additional Information||This report is a compilation of some vis reports for reference.|
|Affected Sets / Systems||vis|

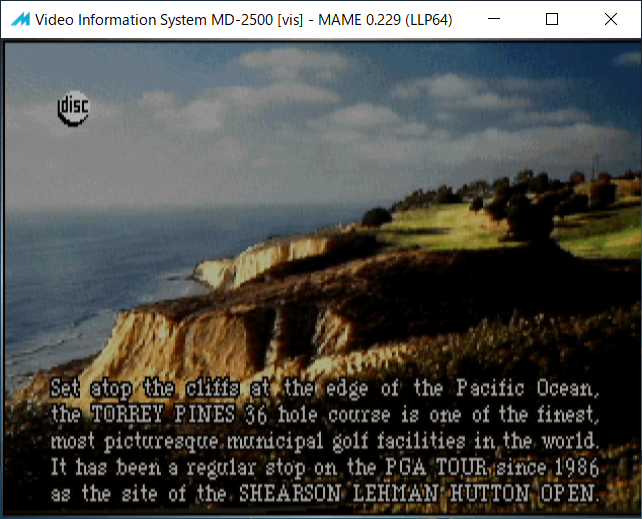

On the actual screen, the right edge is not cut off.

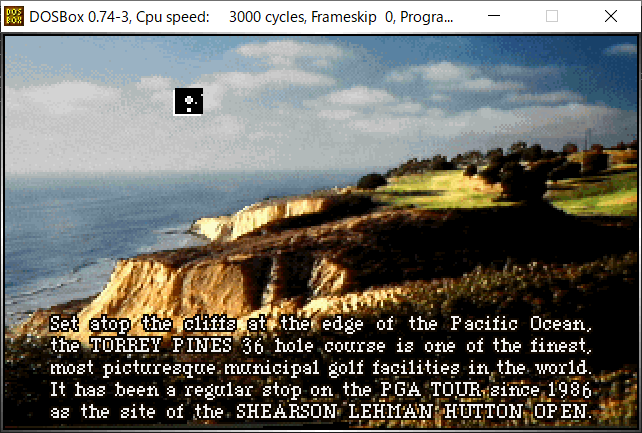

DOS Screen(The right edge is not cut off)
|There are no relationship linked to this issue.|
30 days ago
edited on: 30 days ago
|Sorry, I didn't check the driver status well, please let me close this report for a known issue.|
27 days ago
edited on: 27 days ago
|Sherlock homes movie regressed in 0.224. There were no changes to vis.cpp or pc_vga.cpp between 223 and 224.|
27 days ago
A little research and daily checking seems to suggest the failure in changes of pit8254 (pit8253.cpp/.h) with Sherlock Holmes
https://github.com/mamedev/mame/commit/f7b263de20594fd720a8ff49b7528c48a64ddb9d - August 19, 2020
Broke VIS - hangs driver - black screen
https://github.com/mamedev/mame/commit/e9a0dc19d87ea7a7ffc3ab59f4810d23b1a672ef - August 20, 2020
ViS starts again, but graphic issues are present
15 days ago
|The timer 1 of the pit is programmed for 100000hz. If I revert those commits and disable timer 1 the output is corrupt in the same way so it seems there's a problem with very high frequencies.|
