Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
08079 Graphics Minor Always 16 days ago 10 days ago
Tester Wulfaz View Status Public Platform MAME (Official Binary)
Assigned To Resolution Open OS Windows 10 (64-bit)
Status [?] Acknowledged Driver timelimt.cpp
Version 0.235 Fixed in Version Build 64-bit
Fixed in Git Commit Github Pull Request #
Summary 08079: timelimt: [possible] Corruption of the policeman sprite
Description There is some corruption with the policeman sprite where the lower part and upper part of the sprite interchange.
I am not sure if this is an emulation bug or a bug of the original game since this game is extremely rare. Whoever owns a PCB of this game should confirm whether this issue also occurs on the original.
Steps To Reproduce 1. Go to the top of an automatic staircase
2. Duck.
3. While keeping the Duck button pressed, go towards the staircase.
Additional Information
Github Commit
Flags Possible
Regression Version
Affected Sets / Systems timelimt
Attached Files

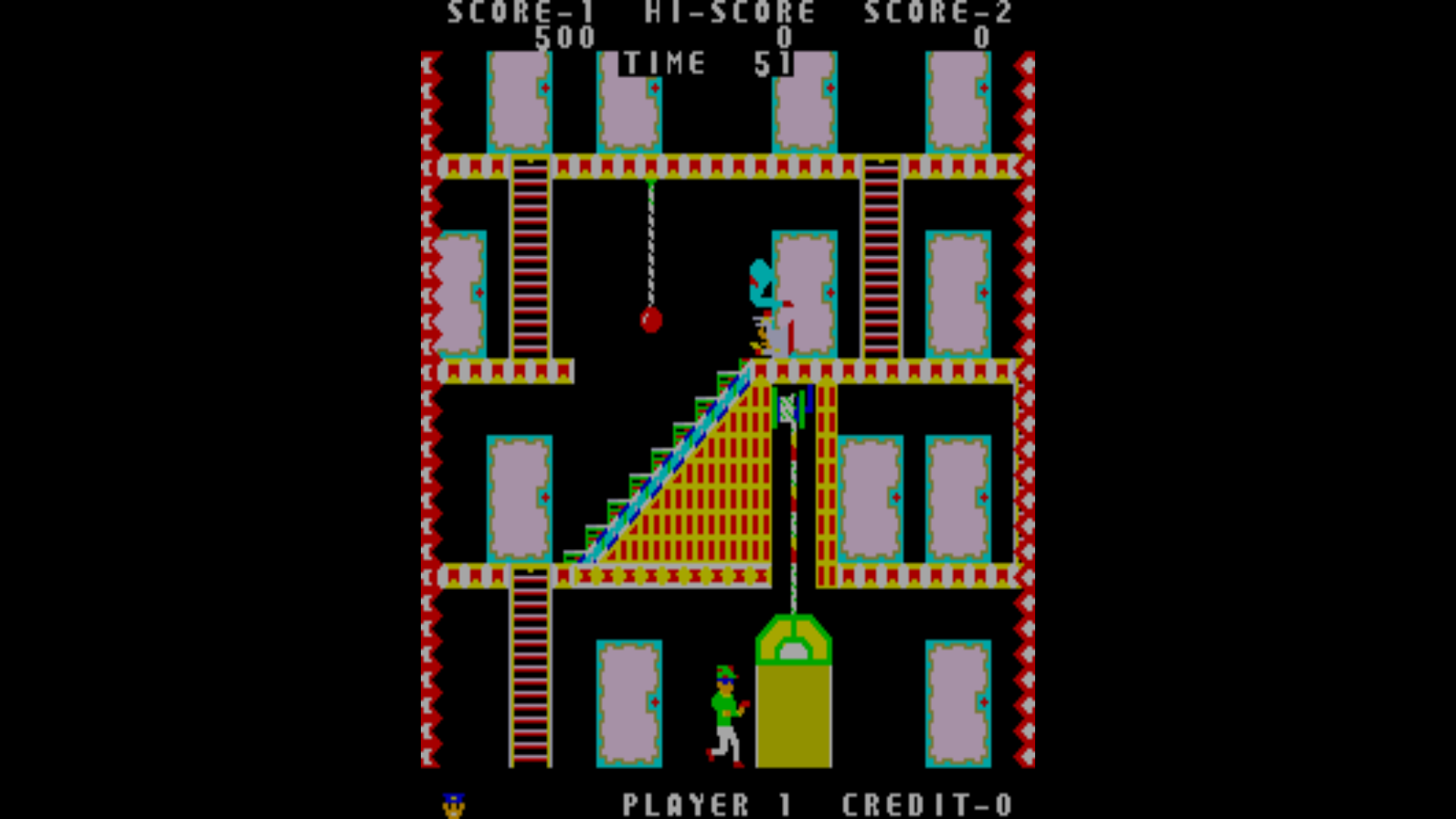

png file icon Weird_Policeman.png (305,308 bytes) 16 days ago Uploaded by Wulfaz
The sprite bug
Wulfaz
Relationships
There are no relationship linked to this issue.
Notes
4
User avatar
No.19232
jkburks
Tester
16 days ago
I can reproduce this graphic glitch in MAME while holding down and backwards, but technically this is not possible on hardware because Time Limit used a 4-way joystick. You would never be able to press 2 direction switches at once.

But the glitch also happens when you shoot while ducking (joystick down + fire button). It briefly flashes the crouched pants graphic above the player.

About a month ago a wrote down what little information I have about this game and posted it on reddit:
https://www.reddit.com/r/MAME/comments/ou2vkd/time_limit_chuo_co_ltd_1983/

There is only 1 good hardware video of this game, and it was made with the undumped revised release of the game rather than the original ROM version that is in MAME. This original version obviously has gameplay issues. They added the direction arrow to locate the timebomb more easily, removed the curtain edges from the screen.... anything else is speculation. We really need a dump of the revised version to test.

In MAME when you shoot while crouched the bullet travels in the last direction you moved (L or R). However, when you shoot while on the ladder the bullet always travels to the left.

One of the strategies used when playing the revised edition is to determine the bullet direction you want before mounting the ladder. It is suggested to point the gun in the direction of the nearest doorway for when you exit the ladder.

This technique does not work in MAME. It does work on the revised version of the game. It is unknown if this is an emulation issue or just bad programming that was fixed in the revised release.
User avatar
No.19236
Wulfaz
Tester
15 days ago
Very interesting. So, since holding two directions was not intended on an original arcade, this is most likely an overlooked bug on the original machine. As an example, in plenty of NES games there is screen corruption at the edges and these were not fixed because the CRT TV's would cover the edges anyway.

 However, I think evidence will still be required to make sure this is indeed an original bug and not an emulation bug.

I look forward for someone to dump the revised version. It seems nicer to play. Finding the time bomb can be a pain in the MAME version.
User avatar
No.19245
Tafoid
Administrator
10 days ago
Acknowledging, setting possible (pending actual PCB review). No manuals to check for this one that I've found that would for sure tell us if there was a 8-way with restrictor plate allowing only 4-way movement or not. My gut tells me this is duplicated on actual hardware as well.
User avatar
No.19246
jkburks
Tester
10 days ago
Time Limit was a kit game. It was only sold as a PCB with instruction cards (and presumably a manual or DIP sheet & wiring diagram). There is no Time Limit control panel or cabinet, but Game Machine magazine specifically says that the game uses a 4-way lever. I translated these documents for the reddit post I linked above.

The thing that seems odd to me is the crouch fire glitch. If you hold down to crouch, when you press the fire button the police man looks like he is trying to stand up, and then the crouched pants graphic appears in the air above him for a brief moment. You will notice that the bullet comes out at the same height as when fired while standing. Without a hardware reference it is difficult to say whether or not this is a btanb, bad programming, or emulation related.

Unfortunately the hardware video from the revised game does not show the police man firing his gun from a crouched position. The only time the player ever crouches is by accident when he misses a ladder alignment, or holds down too long when descending a ladder. It appears that the revised game has changed the enemy behavior so that they do not pursue and start shooting immediately upon exiting the door, so there is little need to be ducking bullets...
