Viewing Issue Advanced Details
ID Category [?] Severity [?] Reproducibility Date Submitted Last Update
08347 Crash/Freeze Critical (emulation) Always 21 days ago 15 days ago
Tester Naibo View Status Public Platform MAME (Official Binary)
Assigned To Resolution Open OS Windows Vista/7/8 (64-bit)
Status [?] Confirmed Driver model2.cpp
Version 0.244 Fixed in Version Build 64-bit
Fixed in Git Commit Github Pull Request #
Summary 08347: vf2o, overrev, sgt24h: "Fatal error: I960: 2f2f2f2e: Unhandled 00" during Self-Test of CPU working RAM
Description During Self-Test of CPU working RAM, i960 CPU seems jump to some random address, causing either Crash(overrev/sgt24h/(sometimes)vf2o), or Failure of RAM test(all vf2 revisions).

Occasionally, vf2x CAN pass its CPU RAM test.

Did some study in debug mode: seems when the ram-test code writing to i960 Interrupt Table area, an unexpected INT happens.
Steps To Reproduce When demo (means all inits should have been done), press F2 to enter self-test, then select memory test.
Additional Information
Github Commit
Flags
Regression Version At least 0.185
Affected Sets / Systems vf2o, overrev, sgt24h
Attached Files

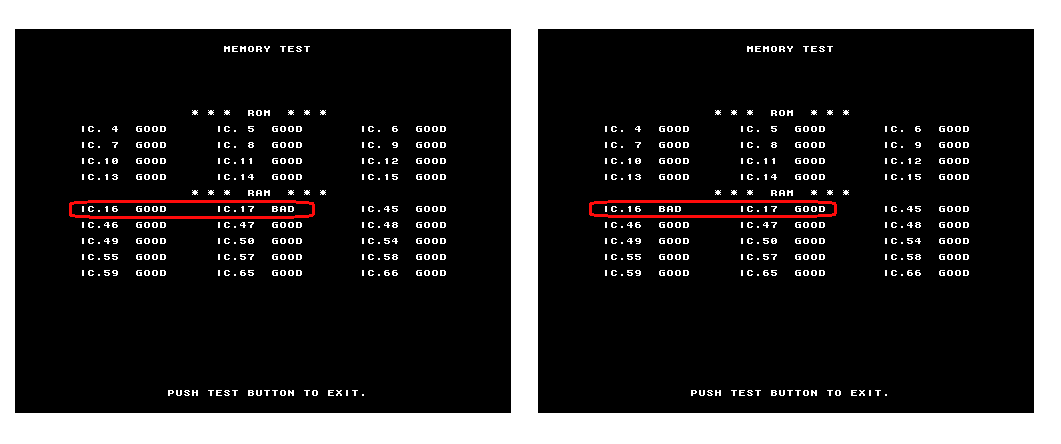

png file icon tmp.png (15,372 bytes) 21 days ago Uploaded by Naibo
Unstable CPU RAM Test in vf2x
Naibo
Relationships
There are no relationship linked to this issue.
Notes
0
There are no notes attached to this issue.
