Viewing Issue Advanced Details
ID | Category [?] | Severity [?] | Reproducibility | Date Submitted | Last Update |
---|---|---|---|---|---|
08865 | Interface | Minor | Always | Jun 3, 2024, 00:00 | Jun 3, 2024, 14:45 |
Tester | ICEknight | View Status | Public | Platform | MAME (Official Binary) |
Assigned To | Resolution | Open | OS | Windows 10/11 (64-bit) | |
Status [?] | Direction Needed | Driver | |||
Version | 0.266 | Fixed in Version | Build | 64-bit | |
Fixed in Git Commit | Github Pull Request # | ||||
Summary | 08865: famicom and clones: Famicom Vaus controller mixup | ||||
Description |
The device "Taito Arkanoid Vaus Controller (FC)" in MAME features one button and an extra port, which seems to be a mix of two different controllers: - The Vaus controller which came with Arkanoid 1, with one button and no ports. - The Vaus controller which came with Arkanoid 2, with an extra port for daisy-chaining controllers/accessories and what seems to be an extra button. |
||||
Steps To Reproduce |
- Go to the Tab menu -> Slot devices -> exp - Select "vaus". An extra subexp port will appear. - Press Reset System - Go to Input settings -> Input Assignments (This system). You'll see a single button being mapped, called "Paddle button". |
||||
Additional Information | MSX and NES versions featured no ports, one button and an adjustment screw next to the paddle. | ||||
Github Commit | |||||
Flags | |||||
Regression Version | |||||
Affected Sets / Systems | famicom and clones | ||||
Attached Files
|
![]() Japanese cover of Arkanoid II depicting how to daisy-chain one controller with the other version
| ||||

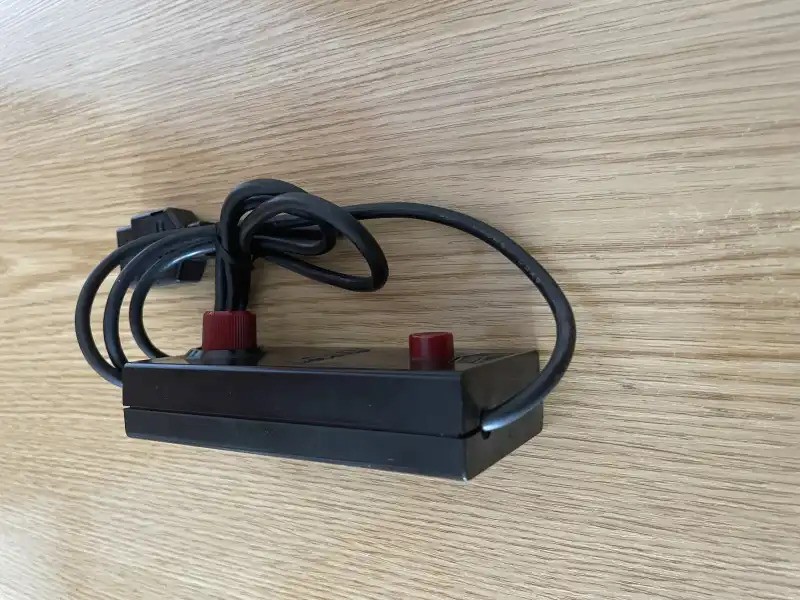

![]() Arkanoid 1 controller, with one button and no extra ports
| |||||

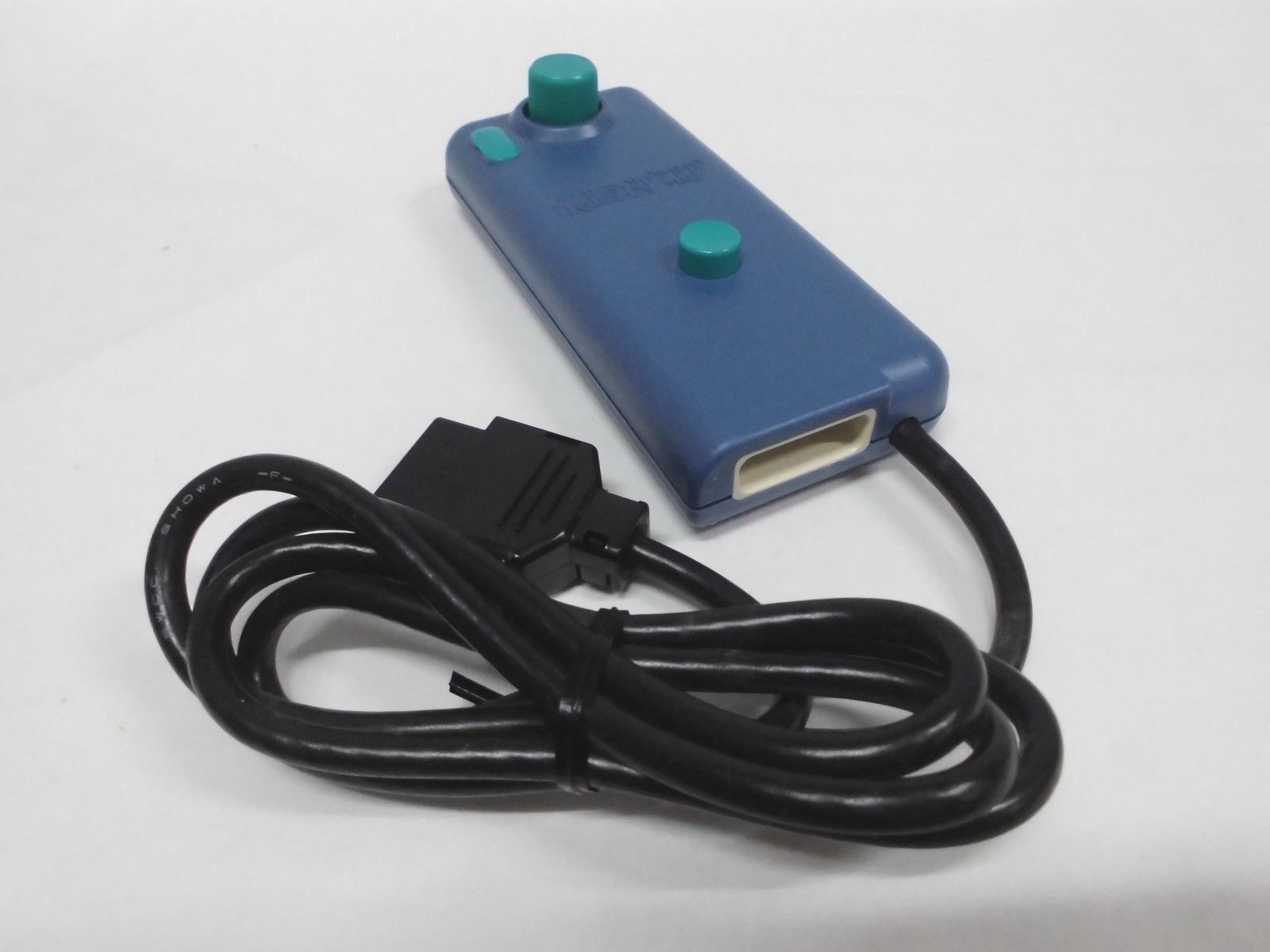

![]() Arkanoid II controller, with an extra port and what seems to be an extra button
| |||||
Relationships
There are no relationship linked to this issue. |
Notes
1
![]() No.22148
ICEknight Tester
Jun 3, 2024, 00:21
edited on: Jun 3, 2024, 00:30 |
There's also the possibility that the button is just decorative and that this is a BTANB, but in that case the device name could still be changed to "Taito Arkanoid II Vaus Controller (FC)" to be more accurate, since it has the extra port. |
---|
