08957: cdimono1 [valdisc]: DYUV test has wrong colors

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
08957	Graphics	Minor	Always	Nov 8, 2024, 16:51	5 days ago

Tester	Slamy	View Status	Public	Platform	MAME (Self-compiled)
Assigned To		Resolution	Fixed	OS	Linux (64-bit)
Status [?]	Resolved			Driver	philips/cdi.cpp
Version	0.271	Fixed in Version	0.277GIT	Build	64-bit
		Fixed in Git Commit	7555232	Github Pull Request #	#13511

Summary	08957: cdimono1 [valdisc]: DYUV test has wrong colors
Description	The DYUV test produces test patterns. The colors are not correct. The RGB555 mode might not be correctly implemented. Pictures are attached in the ZIP file.
Steps To Reproduce	From the start menu, go to Philps Tests, then Video Representations, then DYUV decoder and just perceive.
Additional Information	This might be a very minor issue, considering that the RGB555 mode is rarely used in games. This is why this probably never came up.
Github Commit

Flags	Verified with Original
Regression Version
Affected Sets / Systems	cdimono1 [valdisc]

Attached Files	wrong_colors.zip (3,476,402 bytes) Nov 8, 2024, 16:51 Uploaded by Slamy Pictures are attached in the ZIP file.

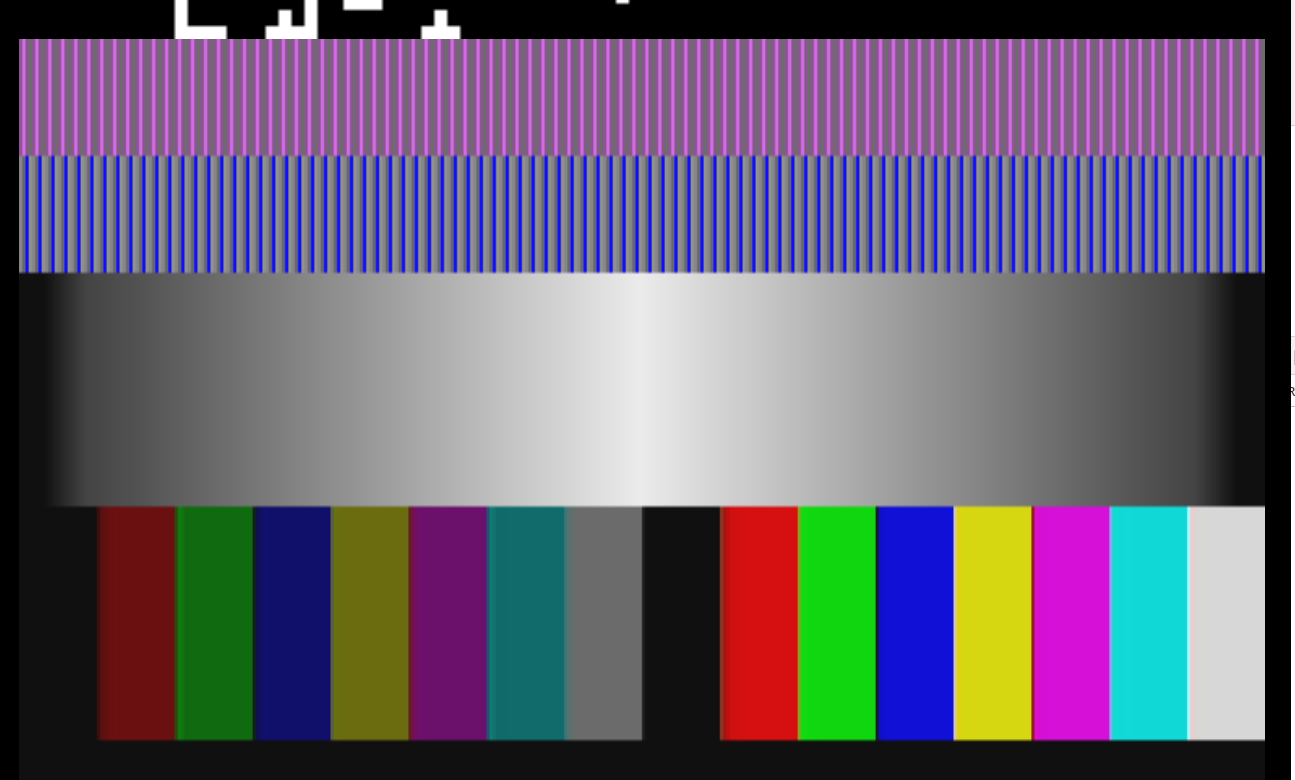

	mame_wrong.png (25,105 bytes) 9 days ago Uploaded by JimCarlTay DYUV Test on MAME 0.271

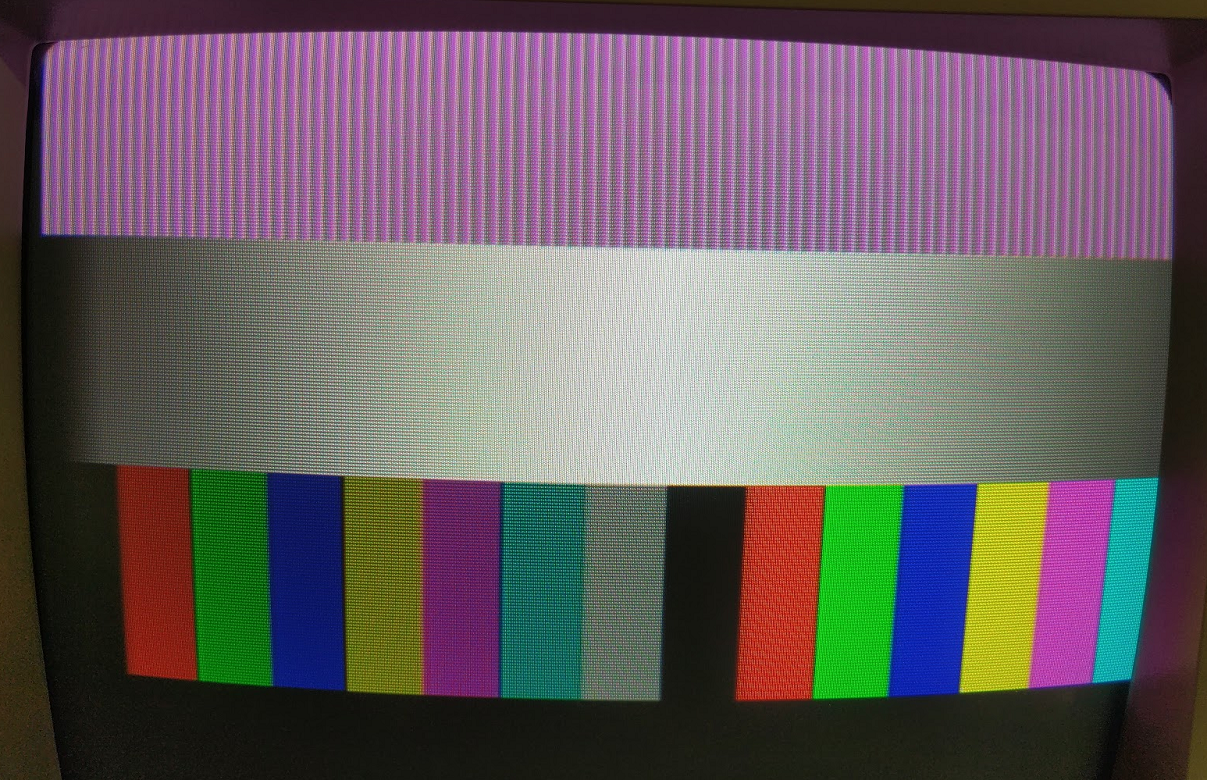

	real_cdi_resized.png (2,150,812 bytes) 9 days ago Uploaded by JimCarlTay DYUV Test on real hardware

No.23148 JimCarlTay Tester 13 days ago edited on: 13 days ago	UPDATE: Software list item "valdisc" was added in version 0.274. Also, commits made during that version's development may have fixed the color issue, not the commit I previously mentioned (6192e7b), so my previous note shall be disregarded for now (I also removed it) and any information can be subject to change pending further investigation. Also changed version where bug is fixed to 0.274 and removed commit and pull request info until we find the exact commit that fixed this issue.
No.23157 JimCarlTay Tester 9 days ago edited on: 9 days ago	UPDATE #2: An upcoming pull request (#13511) by Vincent Halver shall finally fix the bug completely (majority of the fix was implemented in 0.274 to the DYUV decoder) and have it resemble the real hardware screenshot. All information will be updated soon when the pull request is merged.
No.23158 JimCarlTay Tester 9 days ago edited on: 9 days ago	UPDATE #3: I have attached the screenshot images from the original ZIP file. The one from MAME 0.271 is viewable, but you have to open the image link for the real hardware capture (which I resized to reduce file size).
