09205: mrheli, bchopper: Graphic priority issues.

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
09205	Graphics	Minor	Always	2 days ago	1 day ago

Tester	Fujix	View Status	Public	Platform
Assigned To	hap	Resolution	Fixed	OS
Status [?]	Resolved			Driver	irem/m72.cpp
Version	0.278	Fixed in Version	0.279GIT	Build
		Fixed in Git Commit	ba0c334	Github Pull Request #

Summary	09205: mrheli, bchopper: Graphic priority issues.
Description	In the first stage, some gems are displayed in front of the rocks.
Steps To Reproduce
Additional Information
Github Commit

Flags
Regression Version
Affected Sets / Systems	mrheli, bchopper

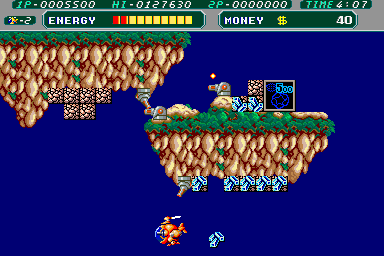

Attached Files	0000.png (10,684 bytes) 2 days ago Uploaded by Fujix

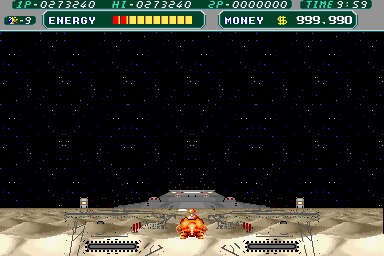

Attached Files	0000x.png (8,160 bytes) 1 day ago Uploaded by hap 278 ending

No.23464 Robbbert Moderator 2 days ago	Mostly it's ok, but in certain areas (such as in the screenshot) the crystals are showing before they should.
No.23467 hap Developer 2 days ago edited on: 1 day ago	It's this thing: m_bg_tilemap->set_transmask(2,0x00ff,0xff00); // for Japan message It smells like a workaround to me, for a different issue. Maybe MCU comms. I tweaked the transmask to make it work: https://github.com/mamedev/mame/commit/7c7e7cef68872bef0a3f38611745fc2f8aeebe8b I think the "erase the tilemap" command is from the MCU. But it fills it with the wrong value, causing the RAM/ROM OK and "for Japan" warning message to be obscured with the standard transmask (which is not a BTANB according to PCB videos).
No.23468 hap Developer 1 day ago	The ending sequence is still broken, even if I remove the workaround altogether. 33:25 in the video The retracting wall at the end of stage 5-1 is also broken. 21:30 in the video
No.23470 hap Developer 1 day ago edited on: 1 day ago	Ok, priorities look good now. There's still raster effect glitches (that I didn't see at all in the video), but that's not related to priorities. I think this bug, though the description is vague: https://mametesters.org/view.php?id=816
