09314: galivan and clones: Background priorities have not been implemented.

ID	Category [?]	Severity [?]	Reproducibility	Date Submitted	Last Update
09314	Graphics	Minor	Always	4 hours ago	3 hours ago

Tester	motomachi16	View Status	Public	Platform	MAME (Official Binary)
Assigned To		Resolution	Open	OS	Windows (x64)
Status [?]	New			Driver	nichibutsu/galivan.cpp
Version	0.283	Fixed in Version		Build	x64
		Fixed in Git Commit		Github Pull Request #

Summary	09314: galivan and clones: Background priorities have not been implemented.
Description	Gallivan's background seems to have similar color based priorities to Mighty Guy's.
Steps To Reproduce
Additional Information
Github Commit

Flags
Regression Version
Affected Sets / Systems	galivan and clones

Attached Files	0000.png (9,162 bytes) 4 hours ago Uploaded by motomachi16

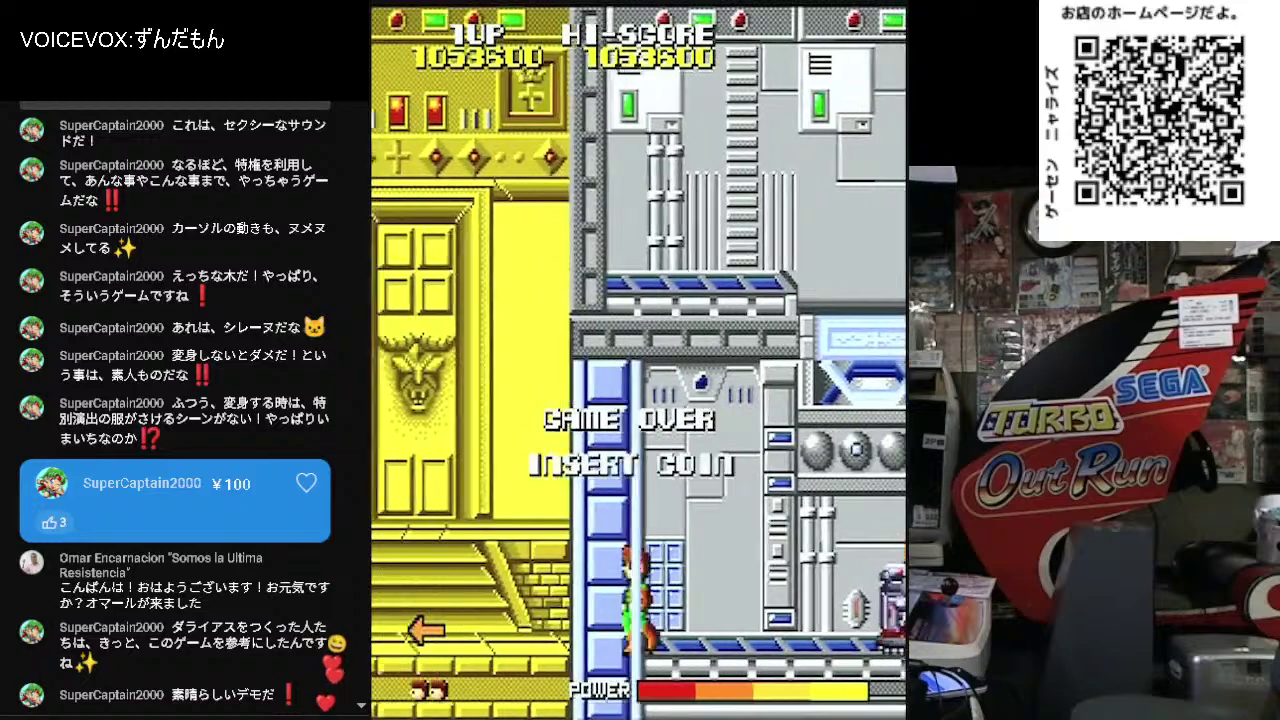

	Loicg9NK43Q - 6059.png (1,479,315 bytes) 3 hours ago Uploaded by motomachi16 From the actual streaming video
	Loicg9NK43Q - 6090.png (1,217,078 bytes) 3 hours ago Uploaded by motomachi16 From the actual streaming video
	0000-fix.png (8,961 bytes) 3 hours ago Uploaded by motomachi16 Image after fix
	0001-fix.png (7,832 bytes) 3 hours ago Uploaded by motomachi16 Image after fix

No.23859 motomachi16 Tester 3 hours ago	Streaming URL https://www.youtube.com/live/Loicg9NK43Q?si=CTT1R-2kIcZLnNaV&t=5968
No.23860 motomachi16 Tester 3 hours ago	I copied the Mighty Guy processing myself and tested it, and it seems to reproduce the processing of the actual machine. TILE_GET_INFO_MEMBER(galivan_state::get_bg_tile_info) { int const attr = m_bgrom[tile_index + 0x4000]; int const code = m_bgrom[tile_index] \| ((attr & 0x03) << 8); tileinfo.set(1, code, (attr & 0x78) >> 3, // seems correct 0); // same as Mighty Guy tileinfo.group = (attr & 0x80) >> 7; } void galivan_state::video_start() { m_bg_tilemap = &machine().tilemap().create(m_gfxdecode, tilemap_get_info_delegate(this, FUNC(galivan_state::get_bg_tile_info)), TILEMAP_SCAN_ROWS, 16, 16, 128, 128); m_tx_tilemap = &machine().tilemap().create(m_gfxdecode, tilemap_get_info_delegate(this, FUNC(galivan_state::get_tx_tile_info)), TILEMAP_SCAN_COLS, 8, 8, 32, 32); m_tx_tilemap->set_transparent_pen(15); // same as Mighty Guy m_bg_tilemap->set_transmask(0, 0xffff, 0x0000); // split type 0 is totally transparent in front half m_bg_tilemap->set_transmask(1, 0x0fff, 0xf000); // split type 1 has pens 0-11 transparent in front half }

No.23859

motomachi16

Tester

3 hours ago

Streaming URL
https://www.youtube.com/live/Loicg9NK43Q?si=CTT1R-2kIcZLnNaV&t=5968

No.23860

motomachi16

Tester

3 hours ago

I copied the Mighty Guy processing myself and tested it, and it seems to reproduce the processing of the actual machine.

TILE_GET_INFO_MEMBER(galivan_state::get_bg_tile_info)
{
int const attr = m_bgrom[tile_index + 0x4000];
int const code = m_bgrom[tile_index] | ((attr & 0x03) << 8);
tileinfo.set(1,
code,
(attr & 0x78) >> 3, // seems correct
0);

// same as Mighty Guy
tileinfo.group = (attr & 0x80) >> 7;
}

void galivan_state::video_start()
{
m_bg_tilemap = &machine().tilemap().create(*m_gfxdecode, tilemap_get_info_delegate(*this, FUNC(galivan_state::get_bg_tile_info)), TILEMAP_SCAN_ROWS, 16, 16, 128, 128);
m_tx_tilemap = &machine().tilemap().create(*m_gfxdecode, tilemap_get_info_delegate(*this, FUNC(galivan_state::get_tx_tile_info)), TILEMAP_SCAN_COLS, 8, 8, 32, 32);

m_tx_tilemap->set_transparent_pen(15);

// same as Mighty Guy
m_bg_tilemap->set_transmask(0, 0xffff, 0x0000); // split type 0 is totally transparent in front half
m_bg_tilemap->set_transmask(1, 0x0fff, 0xf000); // split type 1 has pens 0-11 transparent in front half
}
